MCT MWIR Camera Core High Sensitivity With Proximity Board

I'm Online Chat Now

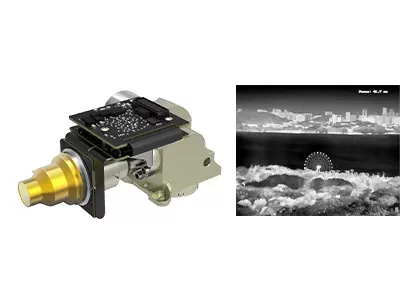

MCT MWIR Camera Core High Sensitivity With Proximity Board

MCT MWIR Camera Core High Sensitivity With Proximity Board
MCT MWIR Camera Core High Sensitivity With Proximity Board

Large Image :  MCT MWIR Camera Core High Sensitivity With Proximity Board

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: EYAS615A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 640x512 / 15μm NETD: ≤17mK
Spectral Range: 3.7~4.8μm Size: 147x58.5x71mm
High Light:

MWIR Camera Core High Sensitivity

,

MWIR Camera Core With Proximity Board

,

17mK mct module

EYAS615A Cooled Thermal Imaging Core



High Sensitivity 640x512@15μm RS058 MCT MWIR MCT MWIR Cooled Infrared Module With Proximity Board



Product Description



EYAS615A AD module is an analog-digital cooled infrared module based on 640x512 formats 15μm pitch IR FPA. The typical NETD of EYAS615A is less than 17mK. The high sensitivity ensures detection or recognition for very tiny infrared radiation difference at very long distance.



This AD module includes a proximity board that provides the FPA timing, and the sensitive power supplies. In addition, the Camera Link interface outputs 16bit raw data which highly simplifies the integration of the detector to the system.



Therefore, EYAS615A module makes it easy for OEM customers to carry out fast acceptance test on GST C615M 640x512@15μm cooled infrared detector, start rapid secondary development and shorten their development period of cooled infrared modules or complete infrared thermal cameras or systems based on cooled infrared detectors.



Main Features



- Easy to Develop & Integrate

- Cameralink Interface Output 16bit Raw Data, Serial Port Control

- Integrated Structure, Dimensions are Consistent with Detector

- 5V Single-supply

- Capable of Capturing High Speed Moving Target



Product Specifications



Model EYAS615A
IR Detector Performance
Resolution 640x512
Pixel Pitch 15μm
Cryocooler RS058
Spectral Range 3.7μm~4.8μm MW
Cooling Time (25°C) ≤6min
Optimal NETD (20°C) ≤17mK
Working Mode
Frame Rate 1~120Hz Adjustable
Working Mode Snapshot; ITR/IWR Integration Mode; Windows Mode; Anti-blooming
Electrical Specification
Standard External Interface QSH 60 pin
Digital Video Cameralink: Output 16bit Raw Data
External Sync CC1: INT/Frame External Sync; CC2: MC External Sync
Communication Cameralink Serial Port: TFG+/-, TC+/-; 9600bps
Power Supply 1 Channel Imaging Panel: 5V
1 Channel Cryocooler: 24V
Stable Power Consumption 7W
Dimension (mm) 147×58.5×71
Weight ≤680g
Working Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each



Industrial Applications



The EYAS615A thermal imaging module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.



MCT MWIR Camera Core High Sensitivity With Proximity Board 0



Our Advantages



MCT MWIR Camera Core High Sensitivity With Proximity Board 1

FAQs



1. In which industries are focal plane array infrared detectors used in?

Infrared focal plane detector is the core component of thermal imaging system, and is the key to detect, identify and analyze infrared information of objects. It has a wide range of applications in traffic, inspection, security monitoring, meteorology, medicine and other industries.



2. What are the characteristics of cooled & uncooled infrared focal plane detector?

Infrared focal plane detectors can be divided into cooled infrared focal plane detector and uncooled infrared focal plane detector. Cooled infrared detector works at a low temperature vacuum environment with high sensitivity and can distinguish more subtle temperature differences, while uncooled infrared focal plane detector does not need a cryogenic environment and can work at room temperature.
