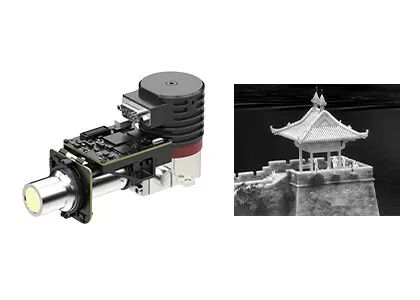

640x512 15μm Cooled Camera Modules RS058 T2SL LWIR Camera Core
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Resolution||640x512 / 15μm||NETD||≤25mK|
|Spectral Range||7.7~9.5μm (LW)||Size||142x58.5x71mm|
640x512 Cooled Camera Modules,
RS058 Cooled Camera Modules,
T2SL LWIR Camera Core
Cooled AD Module 640x512 / 15μm RS058 T2SL LWIR Cooled Infrared Module for Fast Integration
EYAS series cooled AD modules have the pre-amplifier function to convert the analog signal from cooled IR detectors into a digital video stream output. It is available with different resolution formats and different wave bands. EYAS615L is a member of EYAS family with 640x512 / 15μm LWIR cooled detector and RS058 cryocooler integrated.
With EYAS series cooled AD module, it is easy for OEM customers to carry out fast acceptance test on GST infrared detectors, start rapid secondary development and shorten their development period of modules and complete products based on cooled infrared detectors
Global Sensor technology is a leading infrared detector supplier and OEM camera module manufacturer. The company covers an area of 30 thousand square meters with 20 thousand square meters clean room, which can provide customers with a stable supply of infrared products.
- Easy to Develop & Integrate
- Cameralink Interface Output 16bit Raw Data, Serial Port Control
- Integrated Structure, Dimensions are Consistent with Detector
- 5V Single-supply
- Capable of Capturing High Speed Moving Target
|IR Detector Performance|
|Spectral Range||7.7μm~9.5μm LW|
|Cooling Time (25°C)||≤5.5min|
|Optimal NETD (20°C)||≤25mK|
|Frame Rate||1~160Hz Adjustable|
|Working Mode||Snapshot; ITR & Interlace Binning Integration Mode; Windows Mode; Anti-blooming|
|Standard External Interface||QSH 60pin|
|Digital Video||Cameralink: Output 16bit Raw Data|
|External Sync||CC1: INT/Frame External Sync; CC2: MC External Sync|
|Communication||Cameralink Serial Port: TFG+/-, TC+/-; 9600bps|
|Power Supply||1 Channel Imaging Panel: 5V
1 Channel Cryocooler: 24V
|Stable Power Consumption||9W|
|Working Temperature||-40°C ~ +60°C|
|Vibration Magnitude||Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
The EYAS615L thermal imaging module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
1.What is the difference between uncooled and cooled IR detectors?
There are currently two types of infrared thermal imaging sensors on the market, cooled and uncooled.
Uncooled IR detector operates at ambient temperature. It is based on semi-conductor industry and thus usually can be fabricated in big volume with small size and low cost. Uncooled IR detectors are widely used in portable/handheld/mobile devices.
Cooled IR detectors are packaged in a unit that keeps them at an extremely low temperature which shall be supported by a cryo cooler. They are much bigger, more expensive and less reliable than uncooled sensors, mainly due to the complex cooling systems they require. However, the cooled systems are incredibly sensitive and usually work with long focal length optics to achieve long range mission.
