GAVIN330 MWIR Cooled Camera Modules 320x256 30μm Various Zoom Lens Options

I'm Online Chat Now

GAVIN330 MWIR Cooled Camera Modules 320x256 30μm Various Zoom Lens Options

GAVIN330 MWIR Cooled Camera Modules 320x256 30μm Various Zoom Lens Options
GAVIN330 MWIR Cooled Camera Modules 320x256 30μm Various Zoom Lens Options

Large Image :  GAVIN330 MWIR Cooled Camera Modules 320x256 30μm Various Zoom Lens Options

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: GAVIN330
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Detector Resolution: 320x256 / 30μm Size: 150x67x80mm
High Sensitivity: ≤10mK Frame Rate: 50Hz/100Hz/200Hz
Spectral Range: 3.7~4.8μm Optional Lens: Continuous Zoom
High Light:

MWIR Cooled Camera Modules

,

Cooled Camera Modules 320x256

GAVIN330 Cooled Camera Module



GAVIN330 MWIR 320x256 / 30μm Cooled Thermal Camera Core with Various Zoom Lens Options



Product Description

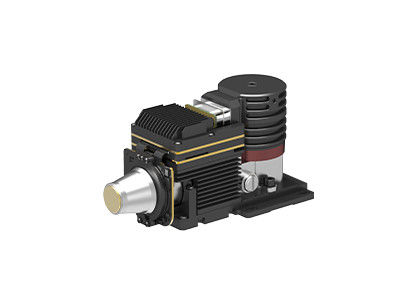

GAVIN330 is a cooled mid wave thermal imaging module developed by Global Sensor Technology (GST). It consists of a 320x256 / 30µm HgCdTe MWIR IR detector with RS058 cryocooler, hardware electronics and various image processing algorithms are also embedded already to present sharp and clear thermal images.



According to customers’ different range mission, GAVIN330 has a variety of infrared lens options, such as 30~240mm, 15~300mm 21~420mm, 35~690mm etc.



Main Features



- High Quality Thermal Imaging

- High Sensitivity, NETD≤10mK

- Long Range Detection

- Easy Integration into the System

- DVP/Cameralink Interface, RAW/YUV Image Output

- Various Continuous Optical Zoom Lenses are Available



Product Specifications



Model GAVIN330
IR Detector Performance
Resolution 320x256
Pixel Pitch 30μm
Cryocooler RS058
Spectral Range 3.7μm~4.8μm MW
Cooling Time(20°C) ≤7min
NETD (20°C) ≤10mK
Image Processing
Frame Rate 50Hz/100Hz/200Hz
Dimming Mode Linear/Histogram/Mixed
Digital Zoom ×1/×2/×4
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface J30JZ 25pin
Analog Video PAL
Digital Video 16bit RAW/YUV: 16bit DVP/Cameralink Output
External Sync Frame External Sync: RS422 Level
Communication RS422, 115200bps
Power Supply 20~28VDC
Stable Power Consumption 12W
Dimension (mm) 150×67×80
Weight ≤900g
Operation Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
Optical Lens
Optional Lens Continuous Zoom
30~240mm/F4
15~300mm/F4
21~420mm/F4
35~690mm/F4



Industrial Applications



The GAVIN330 cooled thermal core is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.



GAVIN330 MWIR Cooled Camera Modules 320x256 30μm Various Zoom Lens Options 0



About GST Infrared



GAVIN330 MWIR Cooled Camera Modules 320x256 30μm Various Zoom Lens Options 1

FAQs



1. How does uncooled focal plane array microbolometer work?

By using the principle of infrared radiant thermal effect, the uncooled infrared detector converts infrared radiation energy into heat energy with infrared absorption material, so that the temperature of the sensitive material increases. Then, a certain physical parameter of the sensitive material changes accordingly and converts into electrical signal or visible light signal through a certain conversion mechanism designed to realize the detection of the object.



2. What's the advantage of uncooled vox microbolometer?

Uncooled infrared focal plane detector does not need an Integrated Dewar Cooler Assembly (IDCA) device and can work at room temperature. It has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on. Although the sensitivity of uncooled infrared focal plane detector is not as good as that of cooled infrared detectors, after years of development, its cost performance has been obviously better than the cooled detector, which has a broader application prospect.
