320x256 30μm Cooled Camera Modules With 55mm Lens VOCs Gas Leak Detection
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Style||Cooled Infrared Module||Resolution||320x256 / 30μm|
|Size||155x67x80mm||Optional Lens||Fixed Zoom|
320x256 Cooled Camera Modules,
55mm Lens Cooled Camera Modules,
VOCs Gas Cooled Camera Modules

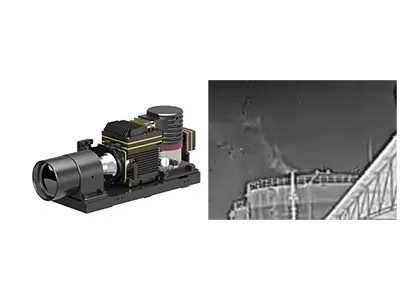

320x256 / 30μm Cooled Infrared Camera Module with 55mm Lens for VOCs Gas Leak Detection
Volatile Organic Compounds, or VOCs, are gases that are emitted into the air from products or processes. Some are harmful by themselves, including some that cause cancer. In addition, they can react with other gases and form other air pollutants after they are in the air.
GAS330 is a cooled infrared thermal imaging module specially designed for gas leakage detection. It integrates 320x256 / 30µm MCT cooled MWIR infrared detector and utilizes spectral wavelength filtering technology to visualize the invisible VOCs that cannot be seen by naked eyes.
Camera manufacturers can design their own gas leak detection camera based on this module easily and efficiently.
Global Sensor Technology specializes in the design, manufacture, sales and marketing of thermal detector sensor and thermal image sensor module. We can provide our customers a variety of infrared thermal imaging solutions which shorten secondary development time and greatly reduce the cost for customers.
- Resolution: 320x256
- Pixel Pitch: 30µm
- NETD≤15mK, High Sensitivity
- Spectral Response: 3.2µm±0.1µm~3.5µm±0.1µm
- Wavelength Customizable Based on Different Requirements
- Integrate with DVP/CameraLink Interface Easily
|IR Detector Performance|
|Spectral Range||3.2μm±0.1μm~3.5μm±0.1μm MW|
|Cooling Time (20°C)||≤8min|
|Image Direction||Horizontally/Vertically/Diagonally Flip|
|Standard External Interface||J30JZ 25pin|
|Digital Video||16bit RAW/YUV: 16bit DVP/Cameralink Output|
|External Sync||Frame External Sync: RS422 Level|
|Stable Power Consumption||12W|
|Operation Temperature||-40°C ~ +60°C|
|Vibration Magnitude||Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
|Optional Lens||Fixed Zoom: 23mm/F1.5; 55mm/F1.5|
The GAS330 gas leak detection thermal imaging camera is used for visiualizing the invisible VOCs (volatile organic compounds) and detecting gas leakage such as: Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, Isoprene, Methanol, Ethanol, Butanone, Benzene, Toluene, Xylene, Ethylbenzene etc.
1.What is infrared thermal imaging?
In nature, all objects whose temperature is higher than absolute zero (- 273 ℃) can radiate infrared rays. By using the infrared camera detector to measure the infrared radiation temperature difference between the target itself and the background, you can get different infrared images, which are also called thermal images.
2. How do infrared detectors work?
Infrared radiation that emitted by target enters the sensing range of the thermal detector, then the infrared detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.
3.What are the advantages of cooled infrared detectors?
The cooled infrared focal plane detector operates at a low temperature which is provided by a detector dewar cooler (ddc). It has high sensitivity and can distinguish more subtle temperature difference than uncooled infrared detector. It can detect, identify and recognize objects at a very long range which is more than ten kilometers away. The structure of cooled detector is very complex which results in a relatively high cost than uncooled detector.
