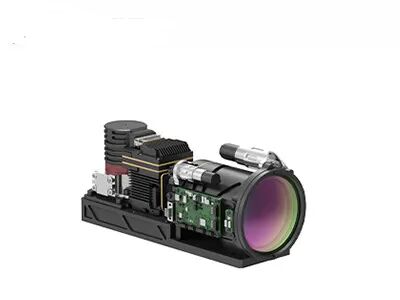

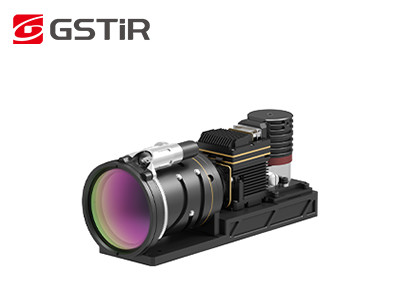

Infrared Cooled Camera Modules 320x256 30μM With 55mm Fixed Zoom Lens

I'm Online Chat Now

Infrared Cooled Camera Modules 320x256 30μM With 55mm Fixed Zoom Lens

Infrared Cooled Camera Modules 320x256 30μM With 55mm Fixed Zoom Lens
Infrared Cooled Camera Modules 320x256 30μM With 55mm Fixed Zoom Lens

Large Image :  Infrared Cooled Camera Modules 320x256 30μM With 55mm Fixed Zoom Lens

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: GAS330
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Style: Cooled Infrared Module Resolution: 320x256 / 30μm
NETD: ≤15mK Spectral Range: 3.2±0.1~3.5±0.1μm
Size: 155x67x80mm Optional Lens: Fixed Zoom
High Light:

Infrared Cooled Camera Modules 30uM

,

Fixed Zoom Lens Cooled Camera Modules

,

320x256 Cooled Infrared Module

320x256 30μM Cooled Camera Modules With 55mm Lens VOCs Gas Leak Detection

GAS330 by GST Infrared



320x256 / 30μm Cooled Infrared Camera Module with 55mm Lens for VOCs Gas Leak Detection



Product Description



Volatile Organic Compounds, or VOCs, are gases that are emitted into the air from products or processes. Some are harmful by themselves, including some that cause cancer. In addition, they can react with other gases and form other air pollutants after they are in the air.



GAS330 is a cooled infrared thermal imaging module specially designed for gas leakage detection. It integrates 320x256 / 30µm MCT cooled MWIR infrared detector and utilizes spectral wavelength filtering technology to visualize the invisible VOCs that cannot be seen by naked eyes.

Camera manufacturers can design their own gas leak detection camera based on this module easily and efficiently.



Global Sensor Technology specializes in the design, manufacture, sales and marketing of thermal detector sensor and thermal image sensor module. We can provide our customers a variety of infrared thermal imaging solutions which shorten secondary development time and greatly reduce the cost for customers.



Main Features



High Sensitivity Detection
• Highly sensitive infrared detector, NETD≤15mK
• Quite efficient in application of low gas concentration and slow gas flow
• Long distance non-contact detection of VOCs gas includes alkanes, alkenes, alcohols, benzenes, ketones etc.



Superior Performance
• Professional gas detection image processing algorithm
• Various lenses, more FOV & scenes available



Easy Integration
• Cameralink/DVP/USB/ GIG-E image output interface for quick integration into thermal imagers



Product Specifications



Model GAS330
IR Detector Performance
Resolution 320x256
Pixel Pitch 30μm
Cryocooler RS058
Spectral Range 3.2μm±0.1μm~3.5μm±0.1μm MW
Cooling Time (20°C) ≤8min
NETD (20°C) ≤15mK
Image Processing
Frame Rate 30Hz
Dimming Mode Linear/Histogram/Mixed
Digital Zoom ×1/×2/×4
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface J30JZ 25pin
Analog Video PAL
Digital Video 16bit RAW/YUV: 16bit DVP/Cameralink Output
External Sync Frame External Sync: RS422 Level
Communication RS422, 115200bps
Power Supply 20~28VDC
Stable Power Consumption 12W
Dimension (mm) 155×67×80
Weight ≤900g
Operation Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
Optical Lens
Optional Lens Fixed Zoom: 23mm/F1.5; 55mm/F1.5



Industrial Applications



The GAS330 gas leak detection thermal imaging camera is used for visiualizing the invisible VOCs (volatile organic compounds) and detecting gas leakage such as: Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, Isoprene, Methanol, Ethanol, Butanone, Benzene, Toluene, Xylene, Ethylbenzene etc.



Our Product Line



Infrared Cooled Camera Modules 320x256 30μM With 55mm Fixed Zoom Lens 0



FAQs



1. What is MCT/HgCdTe detector?

MCT, also called HgCdTe, refers to Mercury-Cadmium-Tellurid which is a chemical compound of cadmium telluride (CdTe) and mercury telluride (HgTe) and a common material in photodetectors. MCT/ HgCdTe detector is a photoconductive detector that operates at a cryogenic environment and can detect infrared radiation. It is more sensitive than the thermal sensors.



2. What is T2SL detector?

T2SL refers to Type-II Superlattice, which is an artificial material with alternating growth periodic heterojunction at nanometer size. It has high uniformity and superior optical property, such as large electron effective mass,large absorption coefficient and high quantum efficiency. Compared with MCT infrared detector, the T2SL infrared detector has good material uniformity, low cost, and similar performance to MCT infrared detector in medium and long wave band, but has great advantages in very long wave band.
