Detailed Product Description
Resolution: 640x512 / 12μm Typical NETD: ≤40mK
Spectral Range: 8~14μm Size: 25.4×25.4×27.4 (With 9.1mm Lens)
Temperature Range: -20℃~+550℃ (Customizable) Temperature Accuracy: ±3℃ Or ±3%
High Light:

Clear Imaging Thermal Camera Core

,

Fast Integration Thermal Camera Core

,

Thermal Imaging Camera Module 640x512

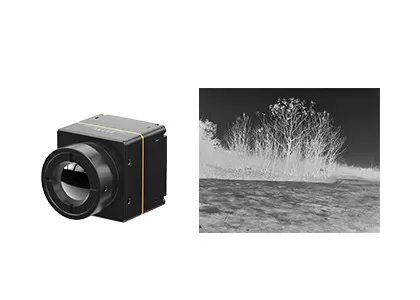

640x512 Thermal Camera Core With Clear Imaging For Fast Integration

COIN612R Thermal Module for Drones


COINR 640x512 / 12μm Thermal Camera Core with Thermography for Unmanned Aerial Vehicle System


Product Description


COIN612R is an affordable infrared camera module with thermal imaging system designed for commercial unmanned air vehicles (drones/UAV). It is specially developed for the field of UAV rescue and inspection, such as electric power inspection, photovoltaic inspection, environmental protection detection, scientific research, aerial photography, police investigation, disaster relief & rescue, forest fire prevention, urban safety etc.. Based on UAV payloads, GST provides customers with various effective and mature solutions to perform tasks in different environments.

The COIN612R infrared camera core integrates 640x512 / 12μm thermal imaging sensor. It features in sharp and crisp image presentation, compact size and low cost. This thermal camera module also has an optional thermographic function with measurement range from -20℃~550 ℃ for industrial temperature measurement.


Main Features



Optimal SWaP
• Mini size: 25.4×25.4×14.1(with shutter)
• Light Weight: as low as 27g(with 9.1mm lens)
• Power consumption: as low as 0.9W



Outstanding Image Quality
• New generation image processing algorithm: NUC/3DNR/DNS/DRC/EE
• Radiometric temperature range: -20℃~150℃, 0~550℃ (support expansion & customization)



Fast Integration
• DVP/LVDS interfaces, RAW/YUV image data output, serial port control
• The radiometric version provides ARM/windows/Linux SDK to achieve full screen temperature measurement



Product Specifications



Model COIN612/R
IR Detector Performance
Sensitive Material Vanadium Oxide
Resolution 640×512
Pixel Pitch 12μm
Spectral Range 8μm ~14μm
Typical NETD ≤40mK
Image Processing
Frame Rate 25Hz/30Hz
Start-up Time 5s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656
Image Algorithm Non-uniformity Correction (NUC)
3D Noise Reduction (3DNR)
2D Noise Reduction (DNS)
Dynamic Range Compression (DRC)
Edge Enhancement (EE)
Digital Zoom 1~8X Continual Zoom, Step Size 1/8 (YUV Output)
Image Display Black Hot/White Hot/Pseudo Color
PC Software
ICC Software Module Control & Video Display
Electrical Specifications
Standard External Interface 50Pin_HRS: DF40C-50DP-0.4V(51), (HRS, Male)
USB Expansion Board Type-C
Communication Interface TTL-232/USB2.0
Digital Video Interface CMOS8/CMOS16/LVDS/USB2.0
Supply Voltage 4~5.5V
Typical Power Consumption 0.9W
Temperature Measurement
Operating Temperature Range -10℃~+50℃
Temperature Measurement Range -20℃~150℃, 0℃~550℃ (Support Expansion & Customization)
Temperature Measurement Accuracy Greater of ±3℃ or ±3%
Regional Temperature Measurement Support Maximum, Minimum and Average Value of the Output Regional Temperature
SDK Windows/Linux/ARM; Achieve Video Stream Analysis and Conversion from Gray to Temperature
Physical Characteristics
Size (mm) 25.4×25.4×27.4 (With 9.1mm Lens)
25.4×25.4×39.5 (With 13mm Lens)
25.4×25.4×38.3 (With 19mm Lens)
Weight 27g±2g (With 9.1mm Lens)
40g±2g (With 13mm Lens)
41g±2g (With 19mm Lens)
Environmental Adaptability
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Certificate ROHS2.0/REACH
Optics
Optional Lens Fixed Focus Athermal: 9.1mm/13mm/19mm
Protection Level IP67 Rating (Front Surface)



Industrial Applications


The COIN612R thermal camera core for UAV payloads can be used for electric power inspection, photovoltaic inspection, environmental protection detection, scientific research, aerial photography, police investigation, disaster relief & rescue, forest fire prevention, urban safety etc.
