Uncooled Thermal Imaging Module 256x192 12μM For Security Camera
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | 256x192 | Power Consumption | 700mW |
|---|---|---|---|
| Spectral Range | 8~14μm | Pixel Pitch | 12μm |
| NETD | ≤65mK | Frame Rate | 25Hz/30Hz |
| High Light | Uncooled Thermal Imaging Module 256x192,Security Camera Uncooled Thermal Imaging Module,12uM Pixel Pitch Thermal Camera Core |
||
Product Description

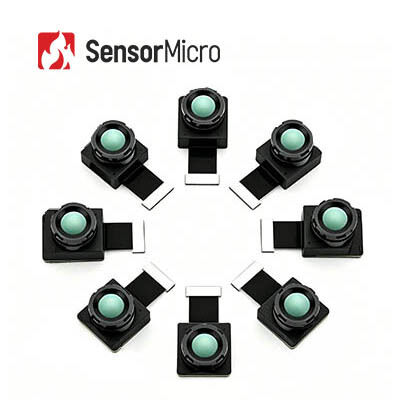

Uncooled Thermal Imaging Module 256x192 / 12μM For Security Camera
iLC212 Thermal Imaging Module
Small Size Long Wave 256x192 / 12μm Themral Imaging Module for Infrared Camera
Product Description
iLC212 includes an exceptionally small size 256x192 / 12μm wafer level package (WLP) infrared detector that captures long-wave infrared (LWIR) spectrum that ranges from 8 to 14μm.
Due to its fully optimized SWaP-C, the iLC212 thermal camera module can be integrated into infrared cameras that has strict requirements on size and weight.
iLC212 thermal camera module can be widely used in the field of Security Monitoring, Thermography, Wearable Device, Vehicle Electronics, Smart Home, Living Creatures Detection etc.
Main Features
Optimal SWaP-C
• Cost Effective: self-developed WLP 256×192/12μm infrared detector with high annual output
• Miniature size: 21mm×21mm×12.8mm (with 3.2mm lens)
• Light weight: as low as 8.6g (with 3.2mm lens)
Intelligent & Precise
• Powerful image processing algorithm: NUC, 3DNR, DNS, DRC, EE
• Small range non-contact temperature measurement with -20℃~150℃ and remarkable accuracy of ±3℃ or ±3%
Easy Integration
• Provide Windows/Linux SDK
• Various interfaces: 30pin-HRS/RS232-TTL/USB2.0/GPIO
• Digital video output: RAW/YUV/BT656
n
Product Specifications
| Model | iLC212R | iLC212R-P |
| IR Detector Performance | ||
| Material | Vanadium Oxide | |
| Resolution | 256×192 | |
| Pixel Size | 12μm | |
| Spectral Response | 8μm ~14μm | |
| Typical NETD | ≤45mK | |
| Image Processing | ||
| Frame Rate | 25Hz/30Hz | |
| Start-up Time | 3s | |
| Digital Video | RAW/YUV/BT656 | |
| Image Algorithm | Non-uniformity Correction (NUC) 3D Noise Reduction (3DNR) De-noise (DNS) Dynamic Range Compression (DRC) Edge Enhancement (EE) |
|
| Image Display | Black Hot/White Hot/Pseudo Color | |
| PC Software | ||
| ICC Software | Module Control and Video Display | |
| Electrical Characteristics | ||
| Standard External Interface | 30Pin_HRS: DF40C-30DP-0.4V(51), (HRS, Male) | |
| USB Extension Board | Type-C | |
| Communication Interface | TTL-RS232/USB2.0 | |
| Digital Video Interface | CMOS8/USB2.0 | |
| Supply Voltage | 3.3V±0.1V VDC | |
| Typical Power Consumption | 0.7W | |
| Temperature Measurement | ||
| Operating Temperature Range | -10℃~+50℃ | |
| Temperature Measurement Range | -20℃~+150℃; Support Customization and Expansion | |
| Temperature Measurement Accuracy | Greater of ±3℃/±3% (@23℃±3℃) Temperature Measurement Distance is 1.5m |
Greater of ±8℃/±8% (@23℃±3℃) Temperature Measurement Distance is 1.5m |
| Regional Temperature Measurement | Support Maximum, Minimum and Average Value of the Output Regional Temperature | |
| SDK | Windows / Linux/ARM; Achieve Video Stream Analysis and Conversion from Gray to Temperature | |
| Physical Characteristics | ||
| Size (mm) | 21×21×12.8 (With 3.2mm Lens) | 21×21×17.4 (With 3.2mm Lens) |
| Weight | 8.6g±1g (With 3.2mm Lens) | 13g±1g (With 3.2mm Lens) |
| Installation Interface | M1.6x3.3; Two Interfaces / Surface; 2 Surfaces in Total | |
| Environmental Adaptability | ||
| Operating Temperature | -40℃～+70℃ | |
| Storage Temperature | -45℃～+85℃ | |
| Humidity | 5%~95%, non-condensing | |
| Vibration | 5.35grms, 3-axis | |
| Shock | Half Sine Wave, 40g/11ms, 3-axis, 6-direction | |
| Certification | ROHS2.0/REACH | |
| Lens | ||
| Optional Lens | 3.2mm/F1.1; HFOV: 55.6±2.8°; Coating: AR; Fixed Athermal | |
| Protection Level | / | IP67 |
Industrial Applications
The iLC212 thermal imaging module is applied to the field of Security Monitoring, Thermography, Wearable Device, Vehicle Electronics, Smart Home, Living Creatures Detection etc.
Our Product Line
FAQs
1. How to choose proper infrared detector resolution?
It depends on the actual needs and applications of your products, and the price is also a factor that needs to be considered. If the image quality is not high, you can choose the infrared detector with low resolution, such as 120x90, 256x192, 400x300. If you need a very clear image for some special purposes, such as remote monitoring, you can choose a high resolution infrared detector of 1280x1024.
2. How to select right pseudo color for thermal imaging?
- The gray white is more suitable for the target with small temperature difference
- The red and blue is more suitable for the scene where the problem points need to be found.
- The iron red is the standard color palette of the power industry.
Note: no matter which palette you choose, the thermal temperature will not change at all.
3. How to choose a suitable infrared thermal camera lens?
- Standard lens can meet normal targets with appropriate distance
- For the telephoto lens, it’s suitable for targets that is relatively small and needs to be viewed from a long distance
- To see more detail of objects at close distance, wide angle lens is better.
- Macro lens is for seeing very tinny target with close distance, such as chip circuit.
Recommended Products
