LWIR 256x192 12um FPA Tiny Infrared Microbolometer Camera
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | 256x192 | Power Consumption | 700mW |
|---|---|---|---|
| Spectral Range | 8~14μm | Pixel Pitch | 12μm |
| NETD | ≤65mK | Frame Rate | 25Hz/30Hz |
| High Light | Infrared Microbolometer Camera,FPA Microbolometer Camera,LWIR 256x192 Infrared Camera Module |
||
Product Description
Infrared Thermal Imaging Module

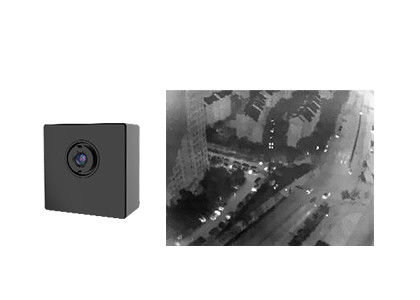

LWIR 256x192/12μm FPA Microbolometer Tiny Infrared Camera Module for Security
Product Description
iLC212 uncooled IR imaging module integrates the self-developed WLP 256×192/12μm infrared detector with high annual output and can capture long-wave infrared (LWIR) spectrum that ranges from 8 to 14μm. Its miniature size of 21mm×21mm×12.8mm (with 3.2mm lens)
and light weight as low as 8.6g±1g (with 3.2mm lens) makes it have optimal SWaP-C feature.
This small infrared camera module has powerful image processing algorithm: NUC, 3DNR, DNS, DRC, EE. Its non-contact temperature measurement with range of -20℃~150℃ and remarkable accuracy of ±3℃ or ±3% is very popular in the emerging security application. Its cost control accelerates the popularization of thermal imaging technology in the 24/7 all-weather emerging security industries, such as Smart Building, Smart Breeding, Home Care etc.
The iLC212 thermal module provides Windows/Linux SDK, various interfaces of 30pin-HRS/RS232-TTL/USB2.0/GPIO and digital video output of RAW/YUV/BT656 so that customers can start quick and easy integration for their own systems.
Main Features
- Fully optimized SWaP-C application
- Suitable for various security thermal cameras
- A wide range of thermal imaging applications
- Low Power Consumption
Product Specifications
| Model | iLC212 |
| IR Detector Performance | |
| Material | Uncooled Vanadium Oxide |
| Resolution | 256×192 |
| Pixel Size | 12μm |
| Spectral Response | 8μm ~14μm |
| NETD | ≤65mK@F1.0@25℃@50Hz |
| Image Processing | |
| Digital Video | RAW/YUV/BT656; Support USB2.0 Video Transmission; Temperature Measurement Support Parameter Line |
| Digital Frame Rate | 25Hz/30Hz |
| Image Display | Black-hot/white-hot/Pseudo-color |
| Image Algorithm | Nonuniformity Correction (NUC) 3D Image Noise Reduction (3DNR) 2D Noise Reduction (DNS) Dynamic Range Compression (DRC) EE Enhancement |
| Start-up Time | ≤3s |
| Temperature Measurement | |
| Operating Temperature Range | -10℃~+50℃ |
| Temperature Measurement Range | -20℃~+150℃, Support Temperature Measurement Range Expansion and Customization |
| Temperature Measurement Accuracy | ±3℃/±3% (take the larger value) @23℃±5℃; the Temperature Measurement Distance is 1.5m |
| Regional Temperature Measurement | Support Any Area Temperature Measurement, Output Area Maximum Value, Minimum Value and Average Value |
| SDK | Windows / Linux Version, Achieve Video Stream Analysis and Gray to Temperature Conversion |
| Electrical Interface | |
| External Interface | 30pin_HRS Connector Power Input Digital Video RS232-TTL/USB2.0 GPIO etc. |
| Communication | RS232-TTL/USB2.0 |
| Expansion Component | VPC Board |
| PC Software | |
| ICC Software | Module Control and Video Display |
| Power System | |
| Power Supply | DC 3.3V±0.1V |
| Power Dissipation | Steady State: 0.70W/3.3V @23±3℃ |
| Physical Property | |
| Connectors | External Connector Model: DF40C-30DP-0.4V (51), (HRS-Male) Mating Connector Model: DF40C (2.0)-30DS-0.4V (51), (HRS-Female) |
| Size | 21mm×21mm×12.8mm (including 3.2mm lens) |
| Weight | 8.9g±0.5g (including 3.2mm lens) |
| Environmental Adaptability | |
| Operation Temperature | -40℃～+70℃ |
| Storage Temperature | -45℃～+85℃ |
| Humidity | 5%~95%, non-condensing |
| Impact & Vibration Resistance | Impact: half sine wave, 40g/11ms, 3-axis, 6-direction Vibration: 5.35grms, 3 axis |
| Certification | ROHS2.0/REACH |
| Lens | |
| Optional Lens | 3.2mm/F1.1, HFOV: 55.6±2.8°; Coating: AR |
Industrial Applications
The iLC212 thermal imaging module is applied to the field of security and monitoring, It is suitable to be integrated into the Hidden Camera, Digital Camera, Dome Camera, Box Camera etc.
Exhibitions
FAQs
1. In which industries can the infrared detectors/thermal camera cores be used?
GST infrared detectors / thermal camera cores are widely used in many industries such as:
- Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention
- Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety
- Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue
- UAVs payload: Equipment Inspection, Enforcement & Rescue, Firefighting Application, Animal Observation
- Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol
- ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles
- AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots
- Others: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research.
