Ultra Compact Uncooled Thermal Module With 9.1 / 13 / 19mm Lens

I'm Online Chat Now

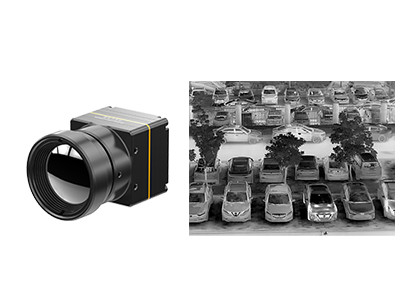

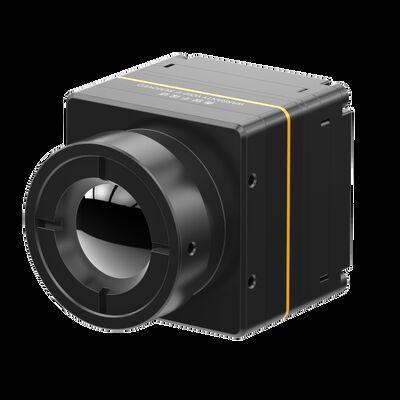

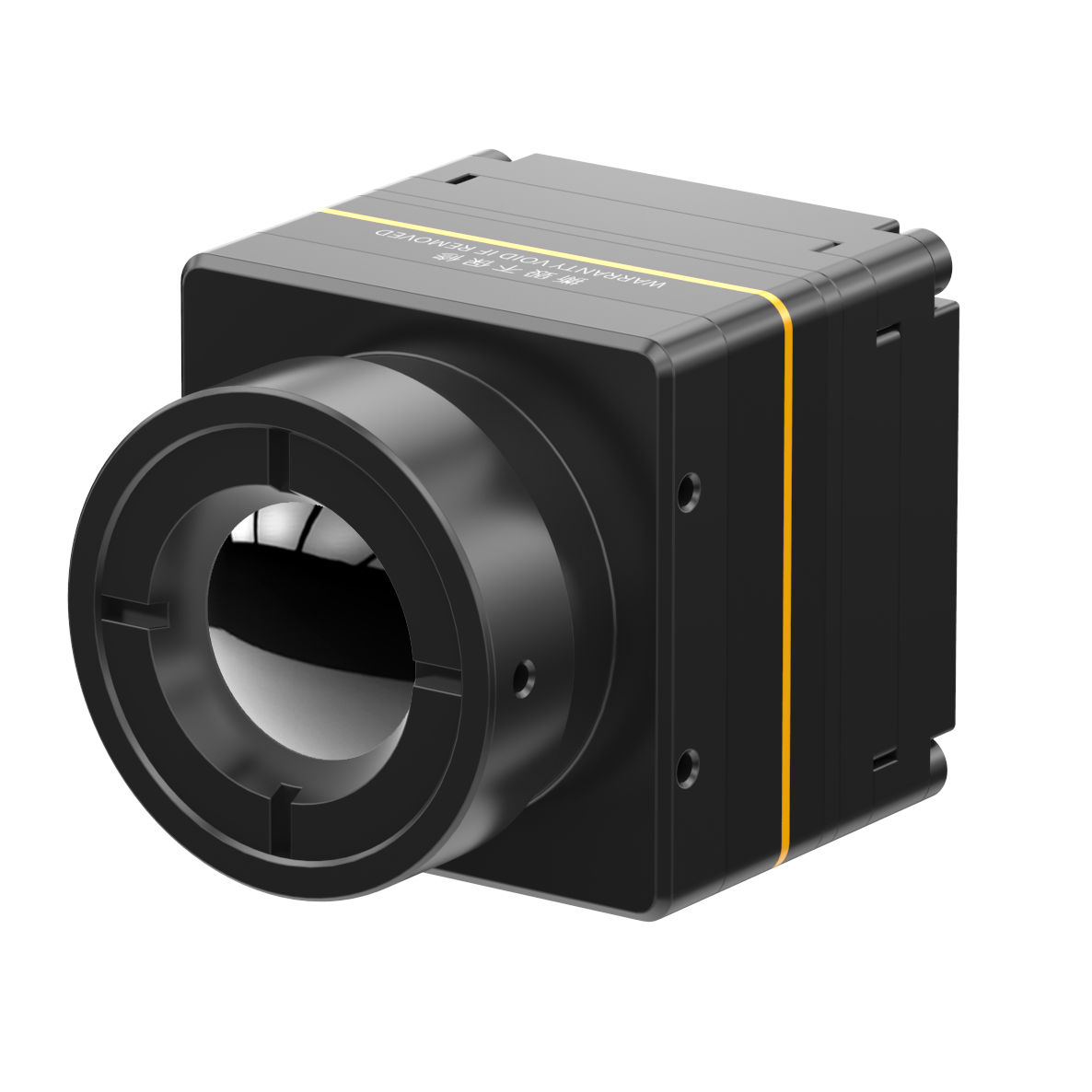

Ultra Compact Uncooled Thermal Module With 9.1 / 13 / 19mm Lens

Ultra Compact Uncooled Thermal Module With 9.1 / 13 / 19mm Lens
Ultra Compact Uncooled Thermal Module With 9.1 / 13 / 19mm Lens
video play

Large Image :  Ultra Compact Uncooled Thermal Module With 9.1 / 13 / 19mm Lens

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: COIN417G2
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 384x288 /17μm NETD: ≤50mK
Spectral Range: 8~14μm Size: 21x22.3x15.6mm (With 9.1mm Lens)
Temperature Range: -20℃~+550℃ (Customizable) Temperature Accuracy: ±3℃ Or ±3%
High Light:

Uncooled Thermal Module With 9.1mm Lens

,

Uncooled Thermal Module With 13mm Lens

,

Thermal Camera Module With 19mm Lens

Thermal Security Camera Module



Uncooled Thermal Module for Security and Surveillance with 9.1/13/19mm Lens



Product Description


Global Sensor technology (GST) once launched one COIN417 thermal module with an ultra-compact structure that is nearly the size of a one-dollar coin. Now, here comes a new generation: the COIN417G2 Uncooled Thermal Module. Not only is the structure updated, but also the upgrades of all-round performance.

The GST COIN417G2 infrared core uses the latest version of TEC-less GST417W wafer level infrared detector. By emphasizing functionality, scientific nature and convenience as the center and purpose of design rather than appearance, the new version pays more attention to the performance. The body reduces stacked part with its overall structure more concise.

It integrates 400x300@17μm wafer level package (WLP) infrared imaging detector, high performance signal processing circuit and image processing algorithm.

The COIN417G2 infrared module features in sharp and crisp thermal image presentation, compact size and low cost. It also has an optional thermographic function with measurement range from -20℃~550 ℃ for industrial temperature measurement.


Main Features


- Mini Size: 25.4x25.4x29.3mm (with 9.1mm Lens)
- Light Weight: 29g±3g (with 9.1mm Lens)
- Typical NETD≤40mk
- Enhanced Image Quality
- Low Power Consumption
- Rapid Development & Integration


Product Specifications



Model COIN417G2/R
IR Detector Performance
Material VOx
Resolution 400×300
Pixel Pitch 17μm
Spectral Range 8μm ~14μm
Typical NETD ≤40mK
Image Processing
Frame Rate 50Hz/30Hz/25Hz
Start-up Time 3s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656
Image Algorithm Non-uniformity Correction (NUC)
3D Noise Reduction (3DNR)
2D Noise Reduction (DNS)
Dynamic Range Compression (DRC)
Edge Enhancement (EE)
Digital Zoom 1X~8X Continuous Zoom, 1/8 Step Size (YUV Output)
Image Display Black Hot/White Hot/Pseudo Color
PC Software
ICC Software Module Control and Video Display
Electrical Specification
Standard External Interface 50Pin_HRS: DF40C-50DP-0.4V(51), (HRS, Male)
USB Extension Board Type-C
Communication Interface TTL-232/USB2.0
Digital Video Interface CMOS8/CMOS16/LVDS/USB2.0
Supply Voltage 4~5.5V
Typical Power Consumption 0.7W
Temperature Measurement
Operating Temperature Range -10℃~+50℃
Temperature Measurement Range -20℃~150℃, 0℃~550℃; Support Customization and Expansion
Temperature Measurement Accuracy Greater of ±3℃ or ±3%
Regional Temperature Measurement Support Maximum, Minimum and Average Value of the Output Regional Temperature
SDK Windows/Linux/ARM; Achieve Video Stream Analysis and Conversion from Gray to Temperature
Physical Characteristics
Size (mm) 25.4×25.4×29.3(With 9.1mm Lens)
25.4×25.4×41.2(With 13mm Lens)
25.4×25.4×40(With 19mm Lens)
Weight 29g±3g(With 9.1mm Lens)
42g±3g(With 13mm Lens)
44g±3g(With 19mm Lens)
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35grms, 3-axis
Shock Half Sine Wave, 40g/11ms, 3-axis, 6-direction
Certificates ROHS2.0/REACH
Optics
Optional Lens Fixed Athermal: 9.1mm/13mm/19mm
Protection Level IP67



Industrial Applications


The COIN417G2 thermal module be used in Thermography, Security Monitoring, Firefighting & Rescue, Outdoors, AIoT, Smart Hardware, UAVs Payload, ADAS etc.

Ultra Compact Uncooled Thermal Module With 9.1 / 13 / 19mm Lens 0


Various Lens Available


Ultra Compact Uncooled Thermal Module With 9.1 / 13 / 19mm Lens 1


FAQs


1. What is infrared thermography?
Thermography is a new and effective technology of non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.

2. What can the infrared thermography be used for?
The infrared thermal image can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals and much more.

3. What are the advantages of infrared thermography?
For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation.
For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening.
