Home ProductsThermal Camera Core

Uncooled FPA Thermal Imaging Camera Core With 400x300 Infrared Detector

I'm Online Chat Now

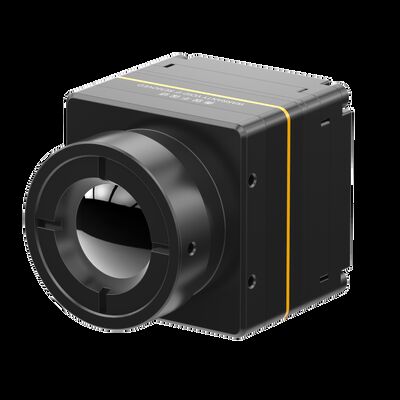

Uncooled FPA Thermal Imaging Camera Core With 400x300 Infrared Detector

Uncooled FPA Thermal Imaging Camera Core With 400x300 Infrared Detector
Uncooled FPA Thermal Imaging Camera Core With 400x300 Infrared Detector
video play

Large Image :  Uncooled FPA Thermal Imaging Camera Core With 400x300 Infrared Detector

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: COIN417G2
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 384x288 /17μm NETD: ≤50mK
Spectral Range: 8~14μm Size: 21x22.3x15.6mm (With 9.1mm Lens)
Temperature Range: -20℃~+550℃ (Customizable) Temperature Accuracy: ±3℃ Or ±3%
High Light:

Uncooled FPA Thermal Imaging Camera Core

,

400x300 Thermal Imaging Camera Core

,

400x300 Infrared Detector Thermal Camera Core

Thermal Camera Core


Uncooled FPA Thermal Imaging Camera Core with 400x300 Infrared Detector


Product Description


COIN417G2 uncooled infrared module is a new generation version of COIN417 developed by Global Sensor Technology (GST). It integrates 400x300@17μm wafer level package (WLP) infrared imaging detector, high performance signal processing circuit and image processing algorithm. The infrared core performance has been further improved with upgraded ASCI chip. Besides, its image performance increases 30% by using advanced image processing algorithm.

The COIN417G2 infrared module features in sharp and crisp thermal image presentation, compact size and low cost. It also has an optional thermographic function with measurement range from -20℃~550 ℃ for industrial temperature measurement.
Until now, we have provided our customers with various mature and stable infrared thermal imaging solutions. It’s easier for COIN series thermal imaging common module to be integrated into more terminal products and greatly reduces the cost for customers.

The COIN417G2 thermal module be used in Thermography, Security Monitoring, Firefighting & Rescue, Outdoors, AIoT, Smart Hardware, UAVs Payload, ADAS etc.


Main Features


- Mini Size: 25.4x25.4x29.3mm (with 9.1mm Lens)
- Light Weight: 29g±3g (with 9.1mm Lens)
- Typical NETD≤40mk
- Enhanced Image Quality
- Low Power Consumption
- Rapid Development & Integration


Product Specifications



ModelCOIN417G2/R
IR Detector Performance
MaterialVOx
Resolution400×300
Pixel Pitch17μm
Spectral Range8μm ~14μm
Typical NETD≤40mK
Image Processing
Frame Rate50Hz/30Hz/25Hz
Start-up Time3s
Analog VideoPAL/NTSC
Digital VideoRAW/YUV/BT656
Image AlgorithmNon-uniformity Correction (NUC)
3D Noise Reduction (3DNR)
2D Noise Reduction (DNS)
Dynamic Range Compression (DRC)
Edge Enhancement (EE)
Digital Zoom1X~8X Continuous Zoom, 1/8 Step Size (YUV Output)
Image DisplayBlack Hot/White Hot/Pseudo Color
PC Software
ICC SoftwareModule Control and Video Display
Electrical Specification
Standard External Interface50Pin_HRS: DF40C-50DP-0.4V(51), (HRS, Male)
USB Extension BoardType-C
Communication InterfaceTTL-232/USB2.0
Digital Video InterfaceCMOS8/CMOS16/LVDS/USB2.0
Supply Voltage4~5.5V
Typical Power Consumption0.7W
Temperature Measurement
Operating Temperature Range-10℃~+50℃
Temperature Measurement Range-20℃~150℃, 0℃~550℃; Support Customization and Expansion
Temperature Measurement AccuracyGreater of ±3℃ or ±3%
Regional Temperature MeasurementSupport Maximum, Minimum and Average Value of the Output Regional Temperature
SDKWindows/Linux/ARM; Achieve Video Stream Analysis and Conversion from Gray to Temperature
Physical Characteristics
Size (mm)25.4×25.4×29.3(With 9.1mm Lens)
25.4×25.4×41.2(With 13mm Lens)
25.4×25.4×40(With 19mm Lens)
Weight29g±3g(With 9.1mm Lens)
42g±3g(With 13mm Lens)
44g±3g(With 19mm Lens)
Environmental Adaptability
Operating Temperature-40℃~+70℃
Storage Temperature-45℃~+85℃
Humidity5%~95%, non-condensing
Vibration5.35grms, 3-axis
ShockHalf Sine Wave, 40g/11ms, 3-axis, 6-direction
CertificatesROHS2.0/REACH
Optics
Optional LensFixed Athermal: 9.1mm/13mm/19mm
Protection LevelIP67



Thermal Camera Module for Security


Uncooled FPA Thermal Imaging Camera Core With 400x300 Infrared Detector 0

Our Advantages


Uncooled FPA Thermal Imaging Camera Core With 400x300 Infrared Detector 1


FAQs


1. What is infrared thermography?
Thermography is a new and effective technology of non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.

2. What can the infrared thermography be used for?
The infrared thermal image can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals and much more.

3. What are the advantages of infrared thermography?
For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation.
For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening.
