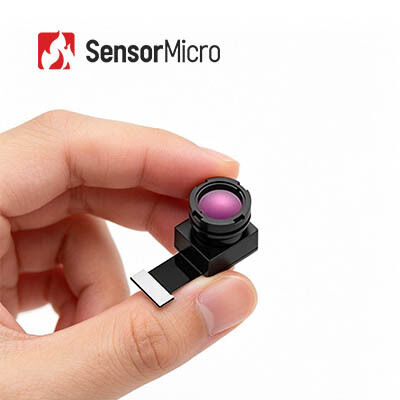

Uncooled LWIR Infrared Thermal Module with 256x192 Resolution and 12μm Pixel Pitch for 8~14μm Spectral Range
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | TIMO212 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Frame Rate | Thermography: 25Hz, Imaging: 50Hz | Resolution | 256x192 |
|---|---|---|---|
| Output Data | 14bit Raw | Spectral Range | 8~14μm |
| Pixel Pitch | 12μm | Temperature Measurement Accuracy | Greater Of ±2℃ / ±2% |
| Highlight | Uncooled LWIR Infrared Thermal Module,ILC212 Infrared Thermal Module,256x192 Security Thermal Camera Core |
||
Product Description

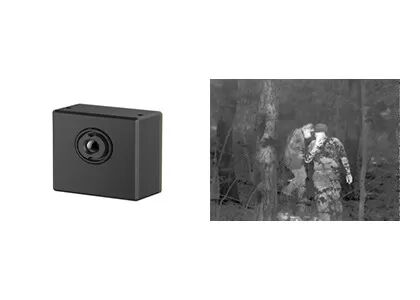

Uncooled LWIR Infrared Thermal Module 256x192 for Security Thermal Camera
Uncooled LWIR 256x192 / 12 μm Infrared Thermal Module for Security Thermal Camera
TIMO212 uncooled IR imaging module integrates the 256x192 / 12μm focal plane array wafer level package (WLP) infrared detector and can capture long-wave infrared (LWIR) spectrum that ranges from 8 to 14μm.
Oriented for fully optimized SWaP-C, the TIMO212 thermal camera module is specially designed for those customers who have strict requirements about size, weight and cost in the area of security and surveillance. Due to its miniature size, light weight and very low price, the TIMO212 thermal core greatly meets customers' low price demands and shortens development time and costs.
The TIMO212 is very suitable to be integrated into applications such as Smart Security, AloT, Night Observation, Instruments and Meters, and Machine Vision.
Main Features
- Ultra-Miniature Module with Ultimate SWaP-C Optimization
- Wafer-level packaged detector + wafer-level optics + micro-electromagnetic valve shutter
- The smallest infrared thermal module, enabling basic thermal imaging functionality with maximum cost efficiency
- Compact size, lightweight, and low power consumption, ideal for integration into miniature devices
- Flexible Optic Options, Accurate Temperature Measurement
- Multiple lens options available, including wide-angle and telephoto, to meet diverse application needs
- High-precision temperature measurement with accuracy up to ±2°C; supports both regional and full-frame temperature monitoring
- Easy Integration, Fast Development
- Supports DVP image interface, compatible with various embedded platforms
- Compliant with RoHS 2.0 environmental standards
Product Specifications
| Model | TIMO212 |
|---|---|
| Resolution | 256×192 |
| Pixel Size | 12μm |
| Spectral Response | 8-14μm |
| Focus Mode | Focus Free |
| Lens (HFOV/FL) | 17.5°/10mm | 25°/7mm | 56°/3.2mm | 90°/2.1mm |
| Weight (g) | 5.1±0.4 | 4.4±0.4 | 2±0.2 | 4.8±0.4 |
| Size (mm, without FPC) | 16×14×18 | 16×14×14.6 | 14×12×9.8 | 16×14×15.6 |
| Number of PINs | 40PIN |
| Output Data | 14bit Raw |
| Frame Rate | Thermography: 25Hz, Imaging: 50Hz |
| Temperature Measurement Range | -20℃~+550℃ (-20℃~+150℃ | +100℃~550℃) |
| Temperature Measurement Accuracy | Greater of ±2℃ / ±2% |
| Operating Temperature | -20℃~+60℃ |
| Humidity | 5%~85% |
| Storage Temperature | -45℃~+85℃ |
| Certification | RoHS 2.0 / Reach |
Industrial Applications
The iLC212 thermal imaging module is applied to the field of Smart Security, AloT, Night Observation, Instruments and Meters, Machine Vision, etc.
Product Advantages
- Diverse Product Portfolio: A wide range of product formats including infrared detectors, camera cores, and modules to meet various integration requirements.
- Rich Product Variety: Multiple array resolutions, pixel sizes, wavebands, and lens options combinations provide greater flexibility for diverse applications.
- Outstanding Performance: Clear imaging, compact size, low power consumption, high sensitivity, and strong reliability—designed to perform under a wide range of environmental challenges.
- Easy Integration: Multiple interface options make integration straightforward and enable rapid development across multiple application fields.
Frequently Asked Questions
-
What is infrared thermal imaging?
Infrared thermal imaging is a method that utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal images with temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength. -
What can infrared imaging be used for?
Night vision, Search & rescue, Non-destructive test, Epidemic prevention, Thermography, Security & monitoring, Firefighting, and more. -
What is a thermal imaging module?
A thermal imaging module usually consists of an infrared detector, infrared lens and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
