384x288 17μm Vehicle Mounted Thermal Imaging Camera System N-Driver Series
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | 384x288 / 17μm | NETD | ＜50mK |
|---|---|---|---|
| Spectral Range | 8~14μm | Field Of View | 37°x28° |
| Video Output Format | CVBS | Supply Voltage | DC9V~32V |
| High Light | 384x288 Vehicle Mounted Thermal Imaging Camera System,CVBS Vehicle Mounted Thermal Imaging Camera System |
||
Product Description
Brief Introduction

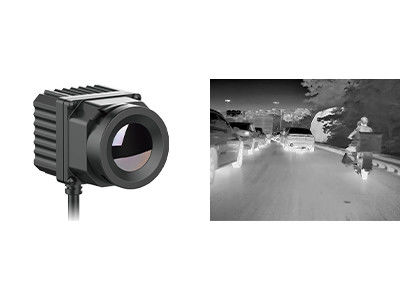

N-Driver Series 384x288 / 17μm Uncooled Vehicle Mounted Thermal Camera for Cars in Night Vision
Product Description
N-Driver384 with 384x288 / 17μm infrared detector is one of the N-Driver series vehicle-mounted infrared modules developed by Global Sensor Technology (GST). It can be used to enhance driver's visual capability.
This automotive night vision thermal camera could help drivers see through the total darkness and also enhance the vision of drivers in harsh environments such as heavy rain and snow, thick smoke, dense fog etc.. It is also effective to eliminate the interference of high beams from oncoming vehicles, increasing drivers' perception towards the surrounding environment and seeing distance.
With the featured razor-sharp live imaging, extremely wide viewing range, incredible durability in diverse harsh environments, instant installation on any vehicles and high affordability for any limited budgets, N-Driver384 infrared camera module is absolutely the perfect choice of driving assistant vision system.
N-Driver384 has a broad application prospect in the fields of automatic driving, vehicle assisted driving (ADAS) and special vehicle applications.
Main Features
- Clear Thermal Imaging in Night Vision
- A Great Distance of View
- All-weather Application
- Easy Integration
- High Reliability & Stability
Product Specifications
| Model | N-Driver 384 |
| IR Detector Performance | |
| Resolution | 384x288 |
| Pixel Pitch | 17μm |
| Spectral Range | 8~14μm |
| NETD | <50mk |
| Image Display Performance | |
| Focal Length | 9.7mm |
| Field of View | 37°×28° |
| Video Output Format | CVBS |
| Output Image Frame Rate & Resolution | PAL 768x576@25Hz |
| System Features | |
| Start-up Time | ≤8s (Room Temperature) |
| Heater | When the Window Temperature is Lower than 2°C±2°C, Start Heating by Itself When the Window Temperature is Higher than 7°C±2°C, Turn off the Heating by Itself |
| Compensation Algorithm | Automatic Shutter Compensation |
| Image Algorithm | Automatic Brightness Contrast/Image Enhancement |
| Communication Interface | RS232, Baud Rate: 115200bps/CAN Communication, Speed 500kbps |
| Pedestrian/Vehicle Detection | / |
| Electrical Features | |
| Supply Voltage | DC9V~32V |
| Overall Power Consumption | ≤3.5W@24V Power Supply, Window Heating is off ≤9W@24V Power Supply, Window Heating is on |
| Operating Range | |
| Observe Range | Person: 1.8m×0.5m ≥150m Car: 2.3m×2.3m ≥300m |
| Detect Range | / |
| External Cable Connection | |
| Cable Length | 4m |
| Standard External Interface | Power Supply: DC5.5*2.1 Female Connector Video: RCA Lotus Male Connector Serial Port: SM 2.54-3P Male Connector (Pin) |
| Physical Characteristics | |
| Dimension (mm) | 40.0x36.0x58.0 (Without Cable) |
| Weight | 150g±3g (Without Cable) |
| Environmental Adaptation | |
| Operation Temperature | -40°C ~ +85°C |
| Storage Temperature | -45°C ~ +90°C |
| Environmental Test | Salt Spray: ISO16750-4; Harsh Level IV Industrial Solvent: GB/T28046.5-2013 |
| Reliability Test | Vibration: ISO16750-3, Grade A Flame Retardant: GB8410, Grade B Stone Impact: ISO16750-3, Grade A ESD: Contact Discharge ±8KV, Air Discharge ±15KV |
| Package | Sealed Case IP67 |
| Certification | |
| EMC | EMC Test Certification (ISO10605, ISO11452-4, ISO11452-2, ISO7637-2) |
Industrial Applications
The N-driver 384 automotive thermal imaging camera is widely used in Advanced Driver Assistance System.
Praises from Customers
FAQs
1. What is infrared thermal imaging?
Infrared thermal imaging is a method of using infrared radiation and thermal energy to gather information about objects, in order to formulate images of them, or get temperature information of the objects, even in low visibility environments.
2. How does Infrared Thermal Imaging Work?
Infrared thermal imaging system is a passive non-contact detection and identification of infrared technology. It focuses the infrared radiation of the scene on the focal plane array infrared detector through the infrared optical system that can pass through infrared radiation. The thermal detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.
