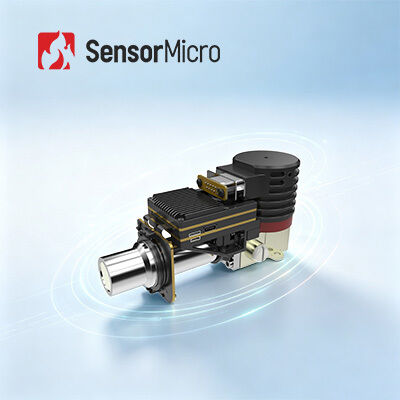

High Frame Rate 640x512 Resolution 15μm Pixel Size Cooled LWIR Thermal Security Camera Module

  • High Frame Rate 640x512 Resolution 15μm Pixel Size Cooled LWIR Thermal Security Camera Module
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number GAVIN GC615LA
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Type Cooled Camera Module Power Supply 24V±4V
Resolution 640x512/15μm High Sensitivity NETD 25mK(F2)
Frame Rate 50Hz/100Hz/200Hz Mid Wavelength 7.7μm±0.2μm～9.4μm±0.3μm
Highlight

MWIR Thermal Security Camera

,

Thermal Security Camera Module Cooled
Leave a Message
Product Description
High Frame Rate LWIR Thermal Security Camera Module Cooled 640x512 15μm
Product Overview

Cooled 640x512 / 15 μm LWIR Thermal Imaging Module with Cryo Cooler

The GAVIN GC615LA infrared camera core integrates a Type-II Superlattice (T2SL) 640×512/15μm LWIR cooled infrared detector with multiple image processing algorithms. It supports various mainstream video interfaces, making development convenient and integration flexible. This camera core is an ideal solution for long-range, high-performance LWIR electro-optical system integration, particularly suited for precise target detection in challenging environments such as dusty conditions or strong sunlight with reflective interference.

Main Features
Mainstream FPA, Wide Application
  • Developed with a 640×512/15μm LWIR cooled detector for exceptional detail
  • Enhanced with next-generation image algorithms including DRC, 2D/3D noise reduction, and EE edge enhancement for clearer imaging
LWIR with Resilience against Interference
  • Strong resistance to dust and glare, adaptable to complex environments
  • Capable of detecting low-temperature objects
  • Type-II Superlattice technology with excellent quantum efficiency and uniformity
Rich Interfaces, Easy Integration
  • Multiple image interfaces: CameraLink/USB3.0/GigE/HDMI/SDI/MIPI/Fiber
  • Flexible RAW/YUV image data output
Product Specifications
Model GAVIN GC615LA
Resolution 640×512
Pixel Size 15μm
Spectral Response 7.7μm±0.2μm～9.4μm±0.3μm
IR Detector NETD(23℃) 25mK(F2)
Frame Rate 50Hz/100Hz/200Hz
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1× to 8× continuous digital zoom
Image Algorithm DRC, 2D/3D Image Noise Reduction, EE
Digital Video Standard: DVP
Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber
External Sync Standard: LV-TTL
Option: RS422/LVDS
Communication Standard: USB2.0/LV-TTL
Option: RS422/CAN/USB3.0/GigE
Power Supply 24V±4V
Steady Power Consumption(23℃) ≤11W
Cooling Time(23℃) ≤8min
Size(mm) 145×58.5×77
Weight(g) ≤650
Operating Temperature -40℃~+71℃
Optical Lens Fixed focus: 25mm/F2
Continuous zoom: 30~300mm/F2
Industrial Applications

The GAVIN GC615LA thermal infrared camera module is widely used in many areas such as NDT, Environmental Monitoring, Long-range Surveillance, Scientific Research, and more.

Our Advantages
  • Deep Technical Expertise: With many years of experience in the research, development, and application of infrared sensor technology, we have built strong capabilities across chip design, wafer fabrication, packaging and testing, as well as system integration.
  • Focused on Innovation and Practical Implementation: We are committed to driving technological breakthroughs in thermal imaging, constantly pushing the boundaries in NETD, SWaP, and operating temperature.
  • Diversified Product Portfolio: Backed by independent R&D and multiple technical pathways, we offer a comprehensive range of infrared detection components—both cooled and uncooled.
  • Rigorous Reliability Validation: Supported by a robust quality management system, our products undergo multiple testing procedures throughout production to ensure long-term stability and reliability.
  • Professional Technical Support: Our engineering team works closely with customers' R&D and product teams to accelerate system integration, improve efficiency, and shorten time-to-market.
Frequently Asked Questions
1. What is infrared thermal imaging?
Infrared thermal imaging is a method of using infrared radiation and thermal energy to gather information about objects, in order to formulate images of them, or get temperature information of the objects, even in low visibility environments.
2. How does Infrared Thermal Imaging Work?
Infrared thermal imaging system is a passive non-contact detection and identification of infrared technology. It focuses the infrared radiation of the scene on the focal plane array infrared detector through the infrared optical system that can pass through infrared radiation. The thermal detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.
