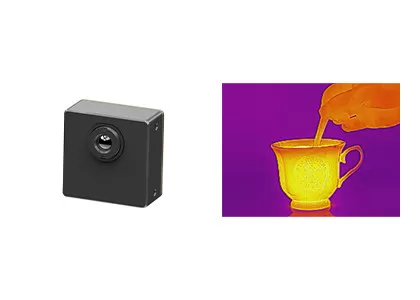

Light Weight Uncooled Infrared Thermal Camera Module 256x192 / 12μm

I'm Online Chat Now

Light Weight Uncooled Infrared Thermal Camera Module 256x192 / 12μm

Light Weight Uncooled Infrared Thermal Camera Module 256x192 / 12μm
Light Weight Uncooled Infrared Thermal Camera Module 256x192 / 12μm

Large Image :  Light Weight Uncooled Infrared Thermal Camera Module 256x192 / 12μm

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: COIN212/R
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Temperature Range: -20℃~+150℃ (Customizable) Resolution: 256x192/12μm
Frame Rate: 25Hz/30Hz/50Hz/60Hz NETD: <40mK
Spectral Range: 8~14μm Typical Power Consumption: <0.4W
High Light:

Uncooled Infrared Thermal Camera Module

,

Infrared Thermal Camera Module 256x192

COIN212/R Tiny Infrared Camera Module



Light Weight 256x192 / 12μm Uncooled FPA Infrared Thermal Module with Thermal Imaging



Product Description



COIN212/R is one of the COIN series thermal imaging camera core developed by Global Sensor Technology (GST). It integrates 256x192 / 12μm wafer level package (WLP) uncooled VOx infrared detector, high performance signal processing circuit and image processing algorithm. It has an optional thermographic function with measurement range from -20℃~150 ℃ for industrial or body temperature measurement.



Its lightweight and flexible features with various industry standard interfaces make this small infrared camera module beneficial to OEM customers for secondary development and integration in all kinds of thermal imagers and infrared thermographic cameras.



Until now, we have provided our customers with various mature and stable infrared thermal module integration solutions. It’s easier for COIN series infrared thermal camera module to be integrated into more terminal products and greatly reduces the cost for customers.



Main Features



- Mini Size: 20x20x10.4mm

- NETD<40mk

- Light Weight <8g

- Low Power Consumption

- Rapid Development & Integration



Product Specifications



Model COIN212/R
IR Detector Performance
Resolution 256x192
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD <40mk
Image Processing
Frame Rate 25Hz/30Hz/50Hz/60Hz
Start-up Time <3s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE/DNR
Electrical Specification
Standard External Interface 30pin_HRS
Communication Mode RS232-TTL, 115200bps
Supply Voltage 3.5~5.5V
Typical Power Consumption <0.4W
Temperature Measurement
Operating Temperature Range -10°C~50°C
Temperature Measurement Range -20°C~150°C, 100°C~550°C
Temperature Accuracy ±3°C or ±3% (Take the Maximum Value)
SDK Support ARM/Windows/Linux SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm) 20x20x10.4 (With Lens)
Weight 7.5g±0.5g (With Lens)
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 3.2mm



Industrial Applications



The COIN212/R infrared thermal camera module is widely used in Thermography, Security & Monitoring, Outdoors, Firefighting & Rescue, AIoT, Intelligent Hardware, UAV Payloads, ADAS etc.



Light Weight Uncooled Infrared Thermal Camera Module 256x192 / 12μm 0



Our Advantages



Light Weight Uncooled Infrared Thermal Camera Module 256x192 / 12μm 1



FAQs



1. In which industries are focal plane array infrared detectors used in?

Infrared focal plane detector is the core component of thermal imaging system, and is the key to detect, identify and analyze infrared information of objects. It has a wide range of applications in traffic, inspection, security monitoring, meteorology, medicine and other industries.



2. What's the advantage of uncooled infrared detector?

Uncooled infrared focal plane detector does not need an Integrated Dewar Cooler Assembly (IDCA) device and can work at room temperature. It has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on. Although the sensitivity of uncooled infrared focal plane detector is not as good as that of cooled infrared detectors, after years of development, its cost performance has been obviously better than the cooled detector, which has a broader application prospect.
