Mini Thermal Camera Core Uncooled FPA Infrared Camera Module 256x192 12μm with Thermography

I'm Online Chat Now

Mini Thermal Camera Core Uncooled FPA Infrared Camera Module 256x192 12μm with Thermography

Mini Thermal Camera Core Uncooled FPA Infrared Camera Module 256x192 12μm with Thermography
Mini Thermal Camera Core Uncooled FPA Infrared Camera Module 256x192 12μm with Thermography

Large Image :  Mini Thermal Camera Core Uncooled FPA Infrared Camera Module 256x192 12μm with Thermography

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: COIN212/R
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 256x192/12μm NETD: <40mK
Spectral Range: 8~14μm Size: 20x20x10.4mm
Temperature Range: -20℃~+150℃ (Customizable) Temperature Accuracy: ±3℃ Or ±3%
High Light:

256x192 Thermal Camera Core

,

Thermal Camera Core Uncooled

,

FPA Infrared Camera Module

COIN212/R Uncooled LWIR Camera Module



Light Weight 256x192 / 12μm Uncooled FPA Infrared Thermal Module with Thermal Imaging



Product Description

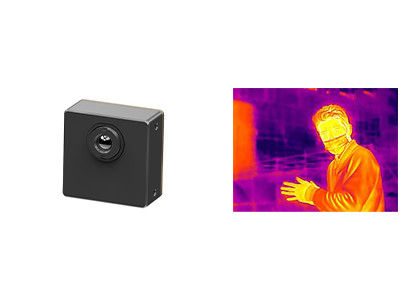

COIN212/R is one of the COIN series thermal imaging camera core developed by Global Sensor Technology (GST). It integrates 256x192 / 12μm wafer level package (WLP) uncooled VOx infrared detector, high performance signal processing circuit and image processing algorithm. It has an optional thermographic function with measurement range from -20℃~150 ℃ for industrial or body temperature measurement.



Its lightweight and flexible features with various industry standard interfaces make this small infrared camera module beneficial to OEM customers for secondary development and integration in all kinds of thermal imagers and infrared thermographic cameras.



Until now, we have provided our customers with various mature and stable infrared thermal module integration solutions. It’s easier for COIN series infrared thermal camera module to be integrated into more terminal products and greatly reduces the cost for customers.



Main Features



- Mini Size: 20x20x10.4mm

- NETD<40mk

- Light Weight <8g

- Low Power Consumption

- Rapid Development & Integration



Product Specifications



Model COIN212/R
IR Detector Performance
Resolution 256x192
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD <40mk
Image Processing
Frame Rate 25Hz/30Hz/50Hz/60Hz
Start-up Time <3s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE/DNR
Electrical Specification
Standard External Interface 30pin_HRS
Communication Mode RS232-TTL, 115200bps
Supply Voltage 3.5~5.5V
Typical Power Consumption <0.4W
Temperature Measurement
Operating Temperature Range -10°C~50°C
Temperature Measurement Range -20°C~150°C, 100°C~550°C
Temperature Accuracy ±3°C or ±3% (Take the Maximum Value)
SDK Support ARM/Windows/Linux SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm) 20x20x10.4 (With Lens)
Weight 7.5g±0.5g (With Lens)
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 3.2mm



Industrial Applications



The COIN212/R uncooled LWIR camera module is widely used in Thermography, Security & Monitoring, Outdoors, Firefighting & Rescue, AIoT, Intelligent Hardware, UAV Payloads, ADAS etc.
