PLUG417R Uncooled Thermographic Camera Module

I'm Online Chat Now

PLUG417R Uncooled Thermographic Camera Module

PLUG417R Uncooled Thermographic Camera Module
PLUG417R Uncooled Thermographic Camera Module

Large Image :  PLUG417R Uncooled Thermographic Camera Module

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: PLUG417R
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 400x300 / 17μm NETD: <30mK
Spectral Range: 8~14μm Size: 44.5x44.5x36.6mm
High Light:

Uncooled Tiny Camera Module

,

PLUG417R Tiny Camera Module

,

30mK Tiny Camera Module

PLUG417R Infrared Camera Module

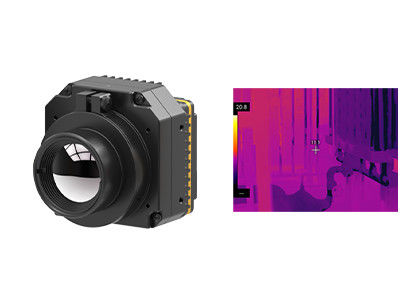

GST PLUG417R Uncooled Thermal Imaging Camera Core with Industrial Temperature Measurement



Product Description



PLUG417R is one of the PLUG-R series uncooled thermal IR camera modules developed by Global Sensor Technology (GST). It consists of 400x300 / 17μm uncooled infrared detector, full series of optical components, professional signal processing circuit and image processing algorithm.



We are committed to opening a new vision for industrial temperature measurement. After years of technical accumulation and practical experience in the field of infrared temperature measurement, we have provided our customers a full range of machine thermal imaging vision solutions.



Main Features


- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration
- Clear Image Quality & Details
- Customizable Temperature Range
- Strong Environmental Adaptability



Product Specifications



Model PLUG417R
IR Detector Performance
Resolution 400x300
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 25Hz/30Hz/50Hz/60Hz
Start-up Time <15s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656/LVDS
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 4.5~6V
Temperature Measurement
Operating Temperature Range -10°C~50°C
Temperature Range -20°C~150°C, 100°C~550°C
Temperature Accuracy ±2°C or ±2% (Take the Maximum Value)
SDK ARM/Windows/Linux SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm) 44.5x44.5x36.6
Weight ≤77g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm/35mm



Industrial Applications



The PLUG417R thermal imager module is widely used in Electric Power Inspection, Machine Vision, Building HVAC Security & Monitoring, Outdoors, Firefighting & Rescue, Law Enforcement & Rescue, ADAS, UAV Payloads etc.



PLUG417R Uncooled Thermographic Camera Module 0



Our Product Line



PLUG417R Uncooled Thermographic Camera Module 1



FAQs



1. What is infrared thermal imaging?

In nature, all objects whose temperature is higher than absolute zero (- 273 ℃) can radiate infrared rays. By using the infrared camera detector to measure the infrared radiation temperature difference between the target itself and the background, you can get different infrared images, which are also called thermal images.



2. How do infrared detectors work?

Infrared radiation that emitted by target enters the sensing range of the thermal detector, then the infrared detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.



3. What are the advantages of cooled infrared detectors?

The cooled infrared focal plane detector operates at a low temperature which is provided by a detector dewar cooler (ddc). It has high sensitivity and can distinguish more subtle temperature difference than uncooled infrared detector. It can detect, identify and recognize objects at a very long range which is more than ten kilometers away. The structure of cooled detector is very complex which results in a relatively high cost than uncooled detector.
