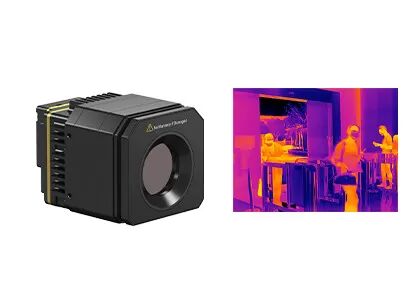

Elevated Skin Temperature Screening IR Camera Module

Elevated Skin Temperature Screening IR Camera Module
Elevated Skin Temperature Screening IR Camera Module

Large Image :  Elevated Skin Temperature Screening IR Camera Module

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: PLUG417S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 400x300/17μm NETD: <50mK
Spectral Range: 8~14μm Size: 44.5x42.5x58.9mm
High Light:

Temperature Screening Ir Camera Module

,

50mK Ir Camera Module

PLUG417S Thermal Module



Elevated Skin Temperature Screening Infrared Thermal Module for Human Body Temperature Measurement



Product Description



PLUG417S fever screening thermal camera is a hot sale product in the fight against COVID-19. It enables a wide range of applications for the rapid non contact measurement and safe preliminary fever screening. It consists of 400×300 / 17μm infrared detector, 7mm infrared optical lens and a specialized SDK for human body temperature measurement.



This screening thermal camera is very useful when every person needs to be tested for a fever before entering areas with a large number of people. Places like supermarket, hospital, subway, supermarket, station, school and so on can be integrated with this camera.



Global Sensor Technology specializes in the design, manufacture, sales and marketing of thermal detector sensor and thermal image sensor module. We can provide our customers a variety of infrared thermal imaging solutions which shorten secondary development time and greatly reduce the cost for customers.



Main Features


- NETD<30mk, High Sensitivity
- Easy to Integrate
- Non-contact Design
- Field of View: 37.2°×28.3°
- Temperature Difference: ±0.5℃
- Temperature Measurement Distance: Optimal 5 Meters



Product Specifications



Model PLUG417S
IR Detector Performance
Resolution 400x300
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <30mK
Image Processing
Frame Rate 25Hz
Start-up Time <10s
Extension Component USB Video
Dimming Mode Linear/Histogram/Mixed
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE/DNR
Electrical Specification
Standard External Interface TYPE-C
Communication Mode USB
Supply Voltage 5±0.5V
Typical Power Consumption <1.5W
Temperature Measurement
Operating Temperature Range 16°C ~ 32°C
Temperature Range 20°C ~ 50°C
Temperature Accuracy ≤±0.5°C (No Wind Indoors, 32°C~42°C Target)
SDK ARM/Windows SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm) 44.5x42.5x58.9 (PLUG417S+7mm Lens)
Weight PLUG417S+7mm Lens≤135g
Environmental Adaptation
Operation Temperature -10°C ~ +50°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 7mm
Certification
Certification Standards ROHS/REACH



Industrial Applications



The PLUG417S thermal camera module is widely used in human body temperature measurement and elevated body temperature screening.



Elevated Skin Temperature Screening IR Camera Module 0



Global Sensor Technology Team



Elevated Skin Temperature Screening IR Camera Module 1



FAQs



1. How does uncooled focal plane array microbolometer work?

By using the principle of infrared radiant thermal effect, the uncooled infrared detector converts infrared radiation energy into heat energy with infrared absorption material, so that the temperature of the sensitive material increases. Then, a certain physical parameter of the sensitive material changes accordingly and converts into electrical signal or visible light signal through a certain conversion mechanism designed to realize the detection of the object.



2. What's the advantage of uncooled vox microbolometer?

Uncooled infrared focal plane detector does not need an Integrated Dewar Cooler Assembly (IDCA) device and can work at room temperature. It has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on. Although the sensitivity of uncooled infrared focal plane detector is not as good as that of cooled infrared detectors, after years of development, its cost performance has been obviously better than the cooled detector, which has a broader application prospect.
