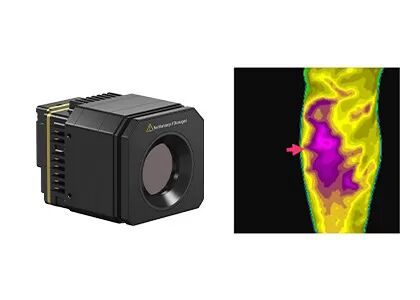

Thermal Camera For Fever Detection, Uncooled LWIR Thermal Module 400x300 17μm

I'm Online Chat Now

Thermal Camera For Fever Detection, Uncooled LWIR Thermal Module 400x300 17μm

Thermal Camera For Fever Detection, Uncooled LWIR Thermal Module 400x300 17μm
Thermal Camera For Fever Detection, Uncooled LWIR Thermal Module 400x300 17μm

Large Image :  Thermal Camera For Fever Detection, Uncooled LWIR Thermal Module 400x300 17μm

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: iHA417
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 400x300/17μm NETD: <50mK
Spectral Range: 8~14μm Size: 44.5x42.5x58.9mm
High Light:

PLUG417S Thermal Camera For Fever Detection

,

400x300 Thermal Camera For Fever Detection

,

Uncooled LWIR Thermal Module

iHA417 Uncooled LWIR Camera Core



iHA417 400x300 / 17μm Uncooled VOx LWIR Thermal Imaging Module for Medical Application



Product Description



iHA417 fever screening thermal camera consists of 400×300 / 17μm infrared detector, 7mm infrared optical lens and a specialized SDK for human body temperature measurement.



It is a kind of infrared product for fever detection and fever screening that uses image analysis software to detect and mark the areas of an image where a defined temperature threshold has been exceeded.



If the software detects that this temperature threshold has been exceeded in a person’s thermal image, this indicates the probability that this person has an elevated body temperature.



iHA417 fever screening thermal camera is very popular to screen out people with symptoms of fever during the fight against COVID-19.



Main Features


- NETD<30mk, High Sensitivity
- Easy to Integrate
- Non-contact Design
- Field of View: 37.2°×28.3°
- Temperature Difference: ±0.5℃
- Temperature Measurement Distance: Optimal 5 Meters



Product Specifications





Model iHA417
IR Detector Performance
Resolution 400x300
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <30mK
Image Processing
Frame Rate 25Hz
Start-up Time <10s
Extension Component USB Video
Dimming Mode Linear/Histogram/Mixed
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE/DNR
Electrical Specification
Standard External Interface TYPE-C
Communication Mode USB
Supply Voltage 5±0.5V
Typical Power Consumption <1.5W
Temperature Measurement
Operating Temperature Range 16°C ~ 32°C
Temperature Range 20°C ~ 50°C
Temperature Accuracy ≤±0.5°C (No Wind Indoors, 32°C~42°C Target)
SDK ARM/Windows SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm) 44.5x42.5x58.9 (PLUG417S+7mm Lens)
Weight PLUG417S+7mm Lens≤135g
Environmental Adaptation
Operation Temperature -10°C ~ +50°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 7mm
Certification
Certification Standards ROHS/REACH



Industrial Applications



The iHA417 thermal camera is widely used in human body temperature measurement and elevated body temperature screening.



Thermal Camera For Fever Detection, Uncooled LWIR Thermal Module 400x300 17μm 0



Our Advantages



Thermal Camera For Fever Detection, Uncooled LWIR Thermal Module 400x300 17μm 1



FAQs



1. In which industries are focal plane array infrared detectors used in?

Infrared focal plane detector is the core component of thermal imaging system, and is the key to detect, identify and analyze infrared information of objects. It has a wide range of applications in traffic, inspection, security monitoring, meteorology, medicine and other industries.



2. What are the characteristics of cooled & uncooled infrared focal plane detector?

Infrared focal plane detectors can be divided into cooled infrared focal plane detector and uncooled infrared focal plane detector. Cooled infrared detector works at a low temperature vacuum environment with high sensitivity and can distinguish more subtle temperature differences, while uncooled infrared focal plane detector does not need a cryogenic environment and can work at room temperature.
