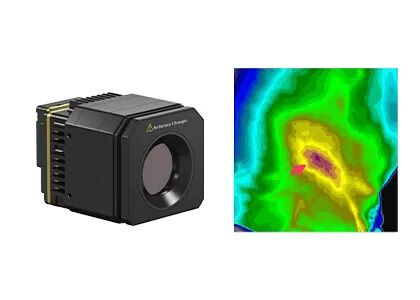

400x300 17μm Fever Screening Camera Module for Body Temperature Measurement

I'm Online Chat Now

400x300 17μm Fever Screening Camera Module for Body Temperature Measurement

400x300 17μm Fever Screening Camera Module for Body Temperature Measurement
400x300 17μm Fever Screening Camera Module for Body Temperature Measurement

Large Image :  400x300 17μm Fever Screening Camera Module for Body Temperature Measurement

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: iHA417
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 400x300/17μm NETD: <50mK
Spectral Range: 8~14μm Size: 44.5x42.5x58.9mm
High Light:

400x300 Fever Screening Camera

,

ISO9001 Fever Screening Camera

,

ISO9001 thermal Camera Core

Thermal Camera for Fever Screening



400x300 / 17μm Fever Screening Thermal Camera for Human Body Temperature Measurement



Product Description



iHA417 uncooled infrared thermal camera is specially developed for infrared (IR) fever sensing system in order to measure human body temperature anytime and anywhere. It consists of 400×300 / 17μm infrared detector, 7mm infrared optical lens and a specialized SDK for human body temperature measurement.



iHA417 fever screening thermal camera is a hot sale product in the fight against COVID-19. It is integrated into many systems with very fast speed and saves a lot of time to detect large flow of people. This thermal camers module could detect elevated body temperatures in large groups of people in just 1 second with accuracy up to ±0.5°C.



Main Features


- NETD<30mk, High Sensitivity
- Easy to Integrate
- Non-contact Design
- Field of View: 37.2°×28.3°
- Temperature Difference: ±0.5℃
- Temperature Measurement Distance: Optimal 5 Meters



Product Specifications



Model iHA417
IR Detector Performance
Resolution 400x300
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <30mK
Image Processing
Frame Rate 25Hz
Start-up Time <10s
Extension Component USB Video
Dimming Mode Linear/Histogram/Mixed
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE/DNR
Electrical Specification
Standard External Interface TYPE-C
Communication Mode USB
Supply Voltage 5±0.5V
Typical Power Consumption <1.5W
Temperature Measurement
Operating Temperature Range 16°C ~ 32°C
Temperature Range 20°C ~ 50°C
Temperature Accuracy ≤±0.5°C (No Wind Indoors, 32°C~42°C Target)
SDK ARM/Windows SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm) 44.5x42.5x58.9 (PLUG417S+7mm Lens)
Weight PLUG417S+7mm Lens≤135g
Environmental Adaptation
Operation Temperature -10°C ~ +50°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 7mm
Certification
Certification Standards ROHS/REACH



Industrial Applications



The iHA417 thermal camera is widely used in human body temperature measurement and elevated body temperature screening.



400x300 17μm Fever Screening Camera Module for Body Temperature Measurement 0



Praises from Customers



400x300 17μm Fever Screening Camera Module for Body Temperature Measurement 1



FAQs



1. What are the advantages of uncooled infrared detectors?

Uncooled infrared focal plane detector does not need cooled device, it can work at room temperature and has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on.



2. What are the key considerations on an infrared detector / thermal module for your application?

---The detector resolution

---The pixel size

---The NETD

---The image quality

---The lens options

---The power consumption

---The size and weight

---The mechanical & electrical interface

---The budget
