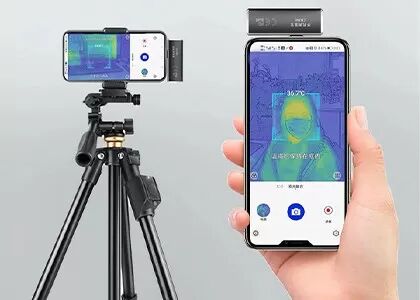

CB360 Miniature Thermal Camera for Fever Detection with 120x90 / 17μm SDK Interface

I'm Online Chat Now

CB360 Miniature Thermal Camera for Fever Detection with 120x90 / 17μm SDK Interface

CB360 Miniature Thermal Camera for Fever Detection with 120x90 / 17μm SDK Interface
CB360 Miniature Thermal Camera for Fever Detection with 120x90 / 17μm SDK Interface

Large Image :  CB360 Miniature Thermal Camera for Fever Detection with 120x90 / 17μm SDK Interface

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: CB360
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 120x90 Pixel Pitch: 17μm
Temperature Range: 20℃~50℃ Power Consumption: ≤150mW
High Light:

CB360 Thermal Camera For Fever Detection

,

SDK Thermal Camera For Fever Detection

CB360 Thermal Camera Core



CB360 Light Weight 120x90 / 17μm Thermal Camera Core for Human Body Temperature Measurement



Product Description



CB360 infrared module integrates the wafer level packaging 120x90 / 12μm uncooled infrared detector and is specially designed for body temperature measurement. It is one of the tiny thermal module series that is for human body temperature measument developed by Global Sensor Technology.



The CB360 infrared module has an temperature range from 20℃~50℃ and measuring distance from 0.5~1.2 meters. With SDK and USB interface, the CB360 uncooled thermal module can be easy to be integrated for secondary development.



Global Sensor Technology is a supplier of thermal infrared detectors and infrared camera module. After years of industrial application experience, we are capable to provide professional, efficient and convenient solutions for customers in all industries with its core technology of independent R&D infrared detector.



Main Features



- IR resolution 120×90

- IR module for body temperature measurement

- Low power consumption, high stability on the temperature measuring

- Aluminum alloy exterior, dark grey

- Compact size, easy to install

- With SDK and USB interface, easy for integrated development



Product Specifications



Version CB360
IR Resolution 120×90@17μm
FOV 50°×38°
Focal Length 2.3mm #F1.1
Interface USB Type-C, USB 2.0 protocol
Power Consumption ≤150mW
Temperature Accuracy ±0.5℃ (Environment Temperature10℃~35℃)
Temperature Range 20℃~50℃ | Accurate Temperature Range: 28℃~42℃
Measuring Distance 0.5~1.2 Meter
SDK Android / Linux x86&x64 / Windows x86&x64
Authentication CE, FCC, RoHS



Industrial Applications



The target customer group is mainly the manufacturers of smart face recognition panel machines (such as clock attendance machines, access control machines, gates, etc.



Cooled Uncooled IR Detctors



CB360 Miniature Thermal Camera for Fever Detection with 120x90 / 17μm SDK Interface 0



FAQs



1. What is infrared thermal imaging?

In nature, all objects whose temperature is higher than absolute zero (- 273 ℃) can radiate infrared rays. By using the infrared camera detector to measure the infrared radiation temperature difference between the target itself and the background, you can get different infrared images, which are also called thermal images.



2. How do infrared detectors work?

Infrared radiation that emitted by target enters the sensing range of the thermal detector, then the infrared detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.



3. What are the advantages of cooled infrared detectors?

The cooled infrared focal plane detector operates at a low temperature which is provided by a detector dewar cooler (ddc). It has high sensitivity and can distinguish more subtle temperature difference than uncooled infrared detector. It can detect, identify and recognize objects at a very long range which is more than ten kilometers away. The structure of cooled detector is very complex which results in a relatively high cost than uncooled detector.
