Uncooled Thermal Camera For Fever Detection, 400x300 17μm Thermal Imaging Core

I'm Online Chat Now

Uncooled Thermal Camera For Fever Detection, 400x300 17μm Thermal Imaging Core

Uncooled Thermal Camera For Fever Detection, 400x300 17μm Thermal Imaging Core
Uncooled Thermal Camera For Fever Detection, 400x300 17μm Thermal Imaging Core

Large Image :  Uncooled Thermal Camera For Fever Detection, 400x300 17μm Thermal Imaging Core

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: iHA417
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 400x300/17μm NETD: <50mK
Spectral Range: 8~14μm Size: 44.5x42.5x58.9mm
Frame Rate: 25Hz Communication Mode: USB
High Light:

400x300 Thermal Camera For Fever Detection

,

25Hz Thermal Camera For Fever Detection

,

50mK Thermal Imaging Core

iHA417 Elevated Skin Temperature Screening



400x300 / 17μm Uncooled Thermal Camera for Fever Detection Used in Places with A lot of People



Product Description



iHA417 fever screening thermal camera consists of 400×300 / 17μm infrared detector, 7mm infrared optical lens and a specialized SDK for human body temperature measurement.



It is a kind of infrared product for fever detection and fever screening that uses image analysis software to detect and mark the areas of an image where a defined temperature threshold has been exceeded.



Global Sensor Technology is a supplier of thermal infrared detectors and infrared camera module. After years of industrial application experience, we are capable to provide professional, efficient and convenient solutions for customers in all industries with its core technology of independent R&D infrared detector.



Main Features


- NETD<30mk, High Sensitivity
- Easy to Integrate
- Non-contact Design
- Field of View: 37.2°×28.3°
- Temperature Difference: ±0.5℃
- Temperature Measurement Distance: Optimal 5 Meters



Product Specifications



Model iHA417
IR Detector Performance
Resolution 400x300
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <30mK
Image Processing
Frame Rate 25Hz
Start-up Time <10s
Extension Component USB Video
Dimming Mode Linear/Histogram/Mixed
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE/DNR
Electrical Specification
Standard External Interface TYPE-C
Communication Mode USB
Supply Voltage 5±0.5V
Typical Power Consumption <1.5W
Temperature Measurement
Operating Temperature Range 16°C ~ 32°C
Temperature Range 20°C ~ 50°C
Temperature Accuracy ≤±0.5°C (No Wind Indoors, 32°C~42°C Target)
SDK ARM/Windows SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm) 44.5x42.5x58.9 (PLUG417S+7mm Lens)
Weight PLUG417S+7mm Lens≤135g
Environmental Adaptation
Operation Temperature -10°C ~ +50°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 7mm
Certification
Certification Standards ROHS/REACH



Industrial Applications



The iHA417 thermal camera is widely used in human body temperature measurement and elevated body temperature screening.

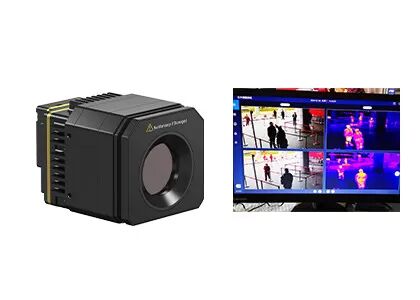

Uncooled Thermal Camera For Fever Detection, 400x300 17μm Thermal Imaging Core 0



Our Product Line

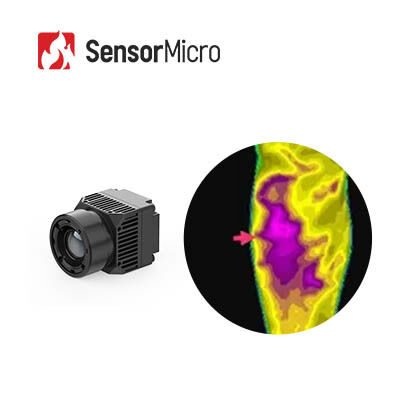

Uncooled Thermal Camera For Fever Detection, 400x300 17μm Thermal Imaging Core 1



FAQs



1. What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal image with temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.



2. What can infrared imaging be used for?

-Night vision

-Search & rescue

-Non-destructive test

-Epidemic prevention

-Thermography

-Security & monitoring

-Firefighting



3. What is thermal imaging module?

A thermal imaging module usually consists of an infrared detector, infrared lens and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
