Uncooled VOx Microbolometer 120x90 17μm Thermal Camera for Fever Detection

I'm Online Chat Now

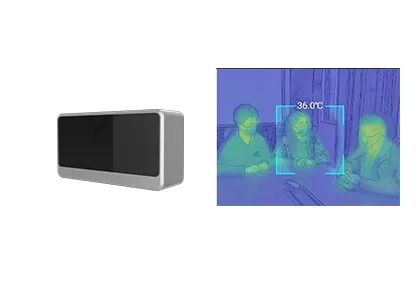

Uncooled VOx Microbolometer 120x90 17μm Thermal Camera for Fever Detection

Uncooled VOx Microbolometer 120x90 17μm Thermal Camera for Fever Detection
Uncooled VOx Microbolometer 120x90 17μm Thermal Camera for Fever Detection

Large Image :  Uncooled VOx Microbolometer 120x90 17μm Thermal Camera for Fever Detection

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: LC160
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 120x90 Pixel Pitch: 17μm
Temperature Range: 20℃~50℃ Power Consumption: ≤150mW
High Light:

120x90 Thermal Camera For Fever Detection

,

150mW Thermal Camera For Fever Detection

LC160 Thermal Camera Core



LC160 Uncooled 120x90 / 17μm Thermal Camera Core for Human Body Temperature Measurement



Product Description



Specially designed for body temperature measurement, the LC160 infrared module has an temperature range from 20℃~50℃ and an accurate temperature range from 28℃~42℃. Its measuring distance could reach 0.5~1.2meters



This tiny infrared module integrates the wafer level packaging 120x90 / 17μm uncooled infrared detector. With SDK and USB interface, the LC160 uncooled thermal module can be easy to be integrated for secondary development.



Main Features



- IR resolution120×90
- IR module for body temperature measurement
- Aluminum alloy exterior, enhancing the heat dissipation efficiency
- IP54, higher protection grade
- With SDK and USB interface, easy for integrated development



Product Specifications



Version LC160
IR Resolution 120×90@17μm
FOV 50°×38°
Focal Length 2.3mm #F1.1
Interface 4PIN Connector, USB 2.0protocal
Power Consumption ≤150mW
Temperature Accuracy ±0.5℃ (Environment Temeprature10℃~35℃)
Temperature Range 20℃ ~50℃ | Accurate Temperature Range 28~42℃
Measuring Distance 0.5~1.2 meters
SDK Android / Linux x86&x64 / Windows x86&x64
Authentication RoHS



Industrial Applications



The target customer group is mainly low-end face recognition panel manufacturers (such as clock attendance, access control, gates, etc.) such as this 4-5 inch face recognition panel.



Infrared Detectors Solutions



Uncooled VOx Microbolometer 120x90 17μm Thermal Camera for Fever Detection 0



FAQs



1. What is infrared thermography?

Thermography is a new and effective technology of non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.



2. What can the infrared thermography be used for?

The infrared thermal image can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals and much more.



3. What are the advantages of infrared thermography?

For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation.

For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening.
