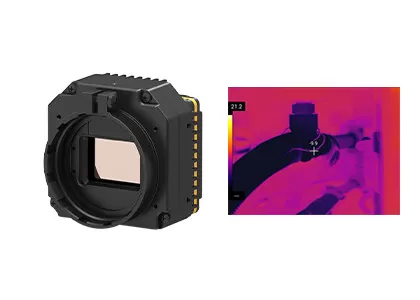

PLUG612R Infrared Camera Core
Uncooled LWIR 640x512 / 12μm Infrared Thermal Camera Module for Industrial Temperature Measurement
Product Description
PLUG612R thermal imaging module covers long wavelength from 8 to 14μm with a resolution of 640x512 and pixel size at 12μm VOx microbolometer infrared detector. It uses the market preferred focal plane array VOx mircrobolometer uncooled infrared detector which ensures the superior performance and high stable environment adaptability.
As a leading thermal uncooled IR detector and thermal sensor module supplier, Global Sensor Technology (GST) has provided the customers with various mature and stable infrared thermal imaging solutions. It’s easier for the thermal imaging camera modules developed by GST to be integrated into more terminal products and greatly reduces the cost for customers.
Main Features
- Resolution: 640x512
- Pixel Pitch: 17 μm
- Array Type: Uncooled Microbolometer
- Thermal Sensitivity: NETD<30 mK
- Spectral Band: 8μm to 14μm
Product Specifications
| Model | PLUG612R |
| IR Detector Performance | |
| Resolution | 640x512 |
| Pixel Pitch | 12μm |
| Spectral Range | 8~14μm |
| NETD | <30mk |
| Image Processing | |
| Frame Rate | 25Hz/30Hz |
| Start-up Time | <10s |
| Analog Video | PAL/NTSC |
| Digital Video | Y16/YUV/BT656/LVDS |
| Extension Component | USB/Camerlink |
| Dimming Mode | Linear/Histogram/Mixed |
| Digital Zoom | 1~8X Continual Zoom, Step Size 1/8 |
| Image Display | Black Hot/White Hot/Pseudo Color |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | NUC/AGC/IDE |
| Electrical Specification | |
| Standard External Interface | 50pin_HRS Interface |
| Communication Mode | RS232-TTL, 115200bps |
| Supply Voltage | 4~6V |
| Temperature Measurement | |
| Operating Temperature Range | -10°C~50°C |
| Temperature Range | -20°C~150°C, 100°C~550°C |
| Temperature Accuracy | ±2°C or ±2% (Take the Maximum Value) |
| SDK | ARM/Windows/Linux SDK, Full Screen Thermography |
| Physical Characteristics | |
| Dimension (mm) | 44.5x44.5x36.6 |
| Weight | ≤85g |
| Environmental Adaptation | |
| Operation Temperature | -40°C ~ +70°C |
| Storage Temperature | -45°C ~ +85°C |
| Humidity | 5%~95%, Non-condensing |
| Vibration | Random Vibration 5.35grms, 3 Axis |
| Shock | Half-sine Wave, 40g/11ms, 3 Axis 6 Direction |
| Optics | |
| Optional Lens | Fixed Focus Athermal: 13mm/19mm/24mm |
Industrial Applications
The PLUG612R uncooled thermal module is widely used in Electric Power Inspection, Machine Vision, Building HVAC Security & Monitoring, Outdoors, Firefighting & Rescue, Law Enforcement & Rescue, ADAS, UAV Payloads etc.
Honors & Certificates
FAQs
1. What is infrared thermal imaging?
Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal image with temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.
2. What can infrared imaging be used for?
-Night vision
-Search & rescue
-Non-destructive test
-Epidemic prevention
-Thermography
-Security & monitoring
-Firefighting
…
3. What is thermal imaging module?
A thermal imaging module usually consists of an infrared detector, infrared lens and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
