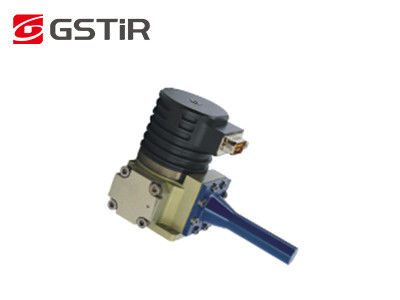

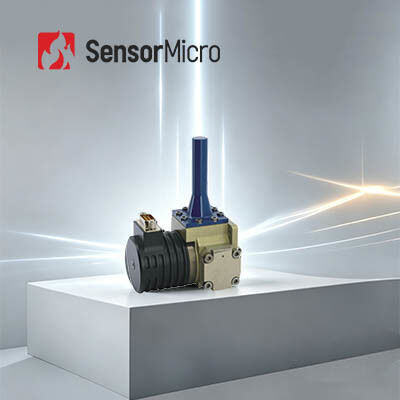

RS079 750mW Integrated Dewar Cooler Assembly Built In Drive Electronics

RS079 750mW Integral Rotary Stirling Cryocooler for Cooled Infrared Detectors

RS079 is one of the integral rotary stirling cryocooler series developed by Global Sensor Technology (GST). It provides a miniature closed cycle cooling system to ensure a cryogenic working environment for the normal operation of stirling cooled detectors.

With MTTF more than 10000hrs, cooling power >750mW (@77K@20℃), cooling time <5mins (500J@77K@20℃), the RS079 dewar cooler assembly is designed to meet the demand for high cooling power of the large FPA formats.

Global Sensor Technology is a supplier of thermal infrared detectors and infrared camera module. After years of industrial application experience, we are capable to provide professional, efficient and convenient solutions for customers in all industries with its core technology of independent R&D infrared detector.

- MTTF＞10000hrs

- Cooling Power: (@77K@20℃)＞750mW

- Cooling Time: <5mins (500J@77K@20℃)

- Low Consumption

- Low Noise

- Built-in Drive Electronics

The RS079 integrated dewar cooler assembly is used for provide cryogenic environment for the cooled infrared detectors.

1.What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. According to the radiation difference between the object and the background environment and the radiation difference of each part of the object itself, the infrared thermal image can show the radiation fluctuation of each part of the scene, thus showing the characteristics of the scene.

2. What is the advantage of infrared thermal imaging?

---See through total darkness;

---Identification under camouflage;

---Long range detection;

---Heat distribution detection;

---Non-contact temperature measurement;

---Occupation awareness

3. What is the applications of infrared thermal imaging?

Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in electric power, security & monitoring, industrial manufacturing, scientific research, medical treatment and other traditional fields.
