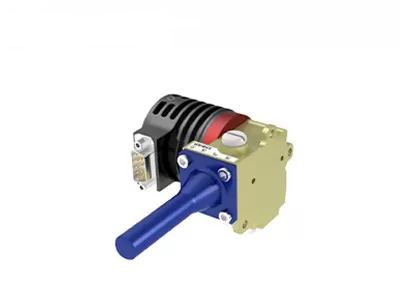

Integral Rotary Stirling Cycle Cryocooler Assembly Low Consumption

I'm Online Chat Now

Integral Rotary Stirling Cycle Cryocooler Assembly Low Consumption

Integral Rotary Stirling Cycle Cryocooler Assembly Low Consumption
Integral Rotary Stirling Cycle Cryocooler Assembly Low Consumption

Large Image :  Integral Rotary Stirling Cycle Cryocooler Assembly Low Consumption

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: RS058
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Cooling Power: (@77K@20℃)>550mW Stable Power Consumption: <7W (250mW@77K@20℃)
Working Temperature: -45℃~+85℃ Size: 116x58.5x71mm
High Light:

Integral Rotary Stirling Cycle Cryocooler

,

Stirling Cycle Cryocooler Assembly

,

Stirling Cycle Cryocooler Low Consumption

RS058 Integrate Detector Dewar Cooler Assembly

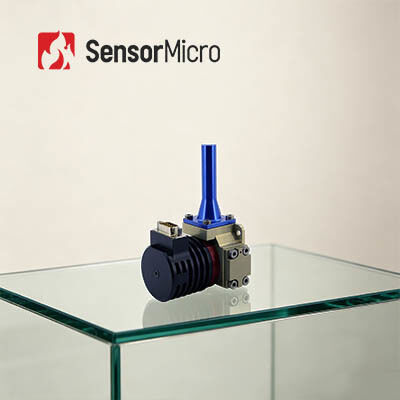

RS058 Stirling Cryo Cooler, Integrated Dewar Cooler Assembly for Cooled Infrared Detectors



Product Description



RS058 is an integral rotary stirling cryocooler that integrate coolers with an infrared focal plane into an evacuated dewar. With the MTTF more than 10000hrs, the RS058 cryo cooler will exceed your expectations that it is integrated into various terminal products and operates in a very long time.



Global Sensor Technology specializes in the design, manufacture, sales and marketing of thermal imaging detectors and infrared modules. We can provide our customers a variety of infrared thermal imaging solutions which shorten secondary development time and greatly reduce the cost for customers.



Main Features

- MTTF>10000hrs

- Cooling Power: (@77K@20℃)>550mW

- Cooling Time: <5mins (250J@77K@20℃)

- Low Consumption

- Low Noise

- Built-in Drive Electronics



Product Specifications



Model RS058
Type Integral Rotary Stirling Cryocooler
MTTF >10000hrs
Size (mm) 116×58.5×71
Weight <430g
Cooling Power (@77K@20°C) >550mW
Working Temperature -45°C~ +85°C
Storage Temperature -56°C~ +85°C
Environmental Specification MIL-STD-810
Input Voltage 18-28VDC/12-16VDC
Max Power Consumption <13W
Steady Power Consumption <7W (250mW@77K@20°C)
Cooling Time <5min (250J@77K@20°C)
Cold Finger Dimension Φ8mm
Electronics Internal
Integration Method IDDCA



Industrial Applications



The RS058 integrated dewar cooler assembly is used for provide cryogenic environment for the cooled infrared detectors.



Our Advantages



Integral Rotary Stirling Cycle Cryocooler Assembly Low Consumption 0



FAQs



1. How to choose proper infrared detector resolution?

It depends on the actual needs and applications of your products, and the price is also a factor that needs to be considered. If the image quality is not high, you can choose the infrared detector with low resolution, such as 120x90, 256x192, 400x300. If you need a very clear image for some special purposes, such as remote monitoring, you can choose a high resolution infrared detector of 1280x1024.



2. How to select right pseudo color for thermal imaging?

- The gray white is more suitable for the target with small temperature difference

- The red and blue is more suitable for the scene where the problem points need to be found.

- The iron red is the standard color palette of the power industry.

Note: no matter which palette you choose, the thermal temperature will not change at all.



3.How to choose a suitable infrared thermal camera lens?

- Standard lens can meet normal targets with appropriate distance

- For the telephoto lens, it’s suitable for targets that is relatively small and needs to be viewed from a long distance

- To see more detail of objects at close distance, wide angle lens is better.

- Macro lens is for seeing very tinny target with close distance, such as chip circuit.
