Low Consumption Stirling Cryocoolers Integrated Various Infrared Detector Available

I'm Online Chat Now

Low Consumption Stirling Cryocoolers Integrated Various Infrared Detector Available

Low Consumption Stirling Cryocoolers Integrated Various Infrared Detector Available
Low Consumption Stirling Cryocoolers Integrated Various Infrared Detector Available

Large Image :  Low Consumption Stirling Cryocoolers Integrated Various Infrared Detector Available

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: RS058
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Cooling Power: (@77K@20℃)>550mW Stable Power Consumption: <7W (250mW@77K@20℃)
Working Temperature: -45℃~+85℃ Size: 116x58.5x71mm
High Light:

Low Consumption Stirling Cryocoolers

,

Stirling Cryocoolers Integrated

RS058 Integrate Detector Dewar Cooler Assembly

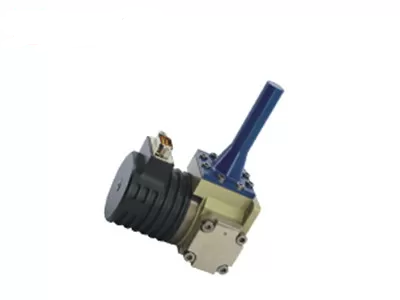

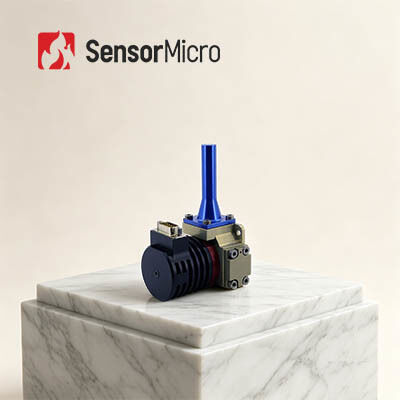

RS058 Stirling Cryo Cooler, Integrated Dewar Cooler Assembly for Cooled Infrared Detectors



Product Description



RS058 is an integral rotary stirling cryocooler which provides a miniature closed cycle cooling system to ensure a cryogenic working environment for the normal operation of cooled infrared detectors. With the MTTF more than 10000hrs, the RS058 cryo cooler will exceed your expectations that it is integrated into various terminal products and operates in a very long time.



Global Sensor Technology specializes in the design, manufacture, sales and marketing of thermal imaging detectors and infrared modules. We can provide our customers a variety of infrared thermal imaging solutions which shorten secondary development time and greatly reduce the cost for customers.



Main Features

- MTTF>10000hrs

- Cooling Power: (@77K@20℃)>550mW

- Cooling Time: <5mins (250J@77K@20℃)

- Low Consumption

- Low Noise

- Built-in Drive Electronics



Product Specifications



Model RS058
Type Integral Rotary Stirling Cryocooler
MTTF >10000hrs
Size (mm) 116×58.5×71
Weight <430g
Cooling Power (@77K@20°C) >550mW
Working Temperature -45°C~ +85°C
Storage Temperature -56°C~ +85°C
Environmental Specification MIL-STD-810
Input Voltage 18-28VDC/12-16VDC
Max Power Consumption <13W
Steady Power Consumption <7W (250mW@77K@20°C)
Cooling Time <5min (250J@77K@20°C)
Cold Finger Dimension Φ8mm
Electronics Internal
Integration Method IDDCA



Industrial Applications



The RS058 integrated dewar cooler assembly is used for provide cryogenic environment for the cooled infrared detectors.



Our Advantages



Low Consumption Stirling Cryocoolers Integrated Various Infrared Detector Available 0



FAQs



1.What is infrared detector / thermal imaging sensor?

Infrared waves cannot be seen with the human eye. Infrared detector / thermal imaging sensor is an optical-electrical device to react to infrared radiation and thermal energy and convert it into electrical signal and then output visible thermal images.



2.What is WLP?

WLP refers to wafer level package. It is the process of completing high vacuum packaging directly on the entire MEMS wafer, then scribing and cutting to make a single infrared sensor. Together with metal package, ceramic package, they are the 3 main package formats of uncooled infrared detectors.



3. What's the advantage of WLP?

WLP IR detectors are specially designed to meet the miniaturization and low cost requirement in the application of infrared technology to consumer electronics market. Global Sensor Technology, with volume fabrication capability, is now offering a variety of WLP infrared module solutions to boost more new applications of emerging markets.
