Uncooled Thermal Imaging Camera Module Core 120x90 / 17μm Easy Integrated

I'm Online Chat Now

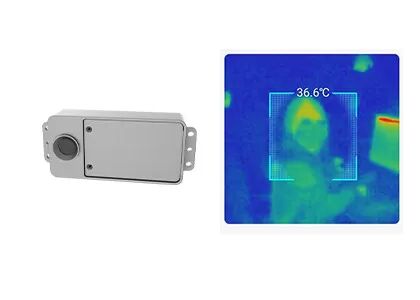

Uncooled Thermal Imaging Camera Module Core 120x90 / 17μm Easy Integrated

Uncooled Thermal Imaging Camera Module Core 120x90 / 17μm Easy Integrated
Uncooled Thermal Imaging Camera Module Core 120x90 / 17μm Easy Integrated

Large Image :  Uncooled Thermal Imaging Camera Module Core 120x90 / 17μm Easy Integrated

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: LC260
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 256x192 Pixel Pitch: 12μm
Temperature Range: 20℃~50℃ Power Consumption: ≤700mW
High Light:

Uncooled Thermal Imaging Camera Module

,

Thermal Imaging Camera Module Core

LC260 Thermal Camera Core



LC260 Uncooled 120x90 / 17μm Thermal Camera Core for Human Body Temperature Measurement



Product Description



Miniature size LC260 infrared module integrates the wafer level packaging 256x192 / 12μm uncooled infrared detector and is specially designed for body temperature measurement.



The LC260 infrared module has an temperature range from 20℃~50℃ and an accurate temperature range from 28℃~42℃. Its measuring distance could reach 0.5~2.5 meters. With SDK and USB interface, the LC260 uncooled thermal module can be easy to be integrated for secondary development.



Global Sensor Technology is a supplier of thermal infrared detectors and infrared camera module. After years of industrial application experience, we are capable to provide professional, efficient and convenient solutions for customers in all industries with its core technology of independent R&D infrared detector.



Main Features



- IR resolution 256×192
- IR module for body temperature measurement
- Enable measuring real-time body temperature for multiple users
- Far distance accurate temperature measurement, 0.5-2.5 meters
- Original installing hole, easy for customer to integrate
- With SDK and USB interface, easy for integrated development





Product Specifications



Version LC260
IR Resolution 256×192 / 12μm
FOV 56°×42°
Focal Length 3.2mm #F1.1
Interface USB Type-C USB 2.0 protocol
Power Consumption ≤700mW
Accuracy ±0.5℃ (Environment Temperature +10℃~+35℃)
Temperature Range 20℃~50℃ | Accurate Temperature Range 28℃~42℃
Measuring Distance 0.5~2.5 Meters
SDK Android / Linux x86&x64 / Windows x86&x64
Authentication RoHS



Industrial Applications



This product is positioning the field of security and protection. The target customer group is smart face recognition large-screen equipment manufacturers and OEM/ODM manufacturers. The terminal products are used for multi-user fast body temperature measurement in places like factories, office buildings, community entrances, supermarkets, government affairs centers, hospitals and other places with large flow of people or easy to gather people.



Uncooled Thermal Imaging Camera Module Core 120x90 / 17μm Easy Integrated 0



Our Product Line



Uncooled Thermal Imaging Camera Module Core 120x90 / 17μm Easy Integrated 1



FAQs



1. What is infrared thermal imaging?

In nature, all objects whose temperature is higher than absolute zero (- 273 ℃) can radiate infrared rays. By using the infrared camera detector to measure the infrared radiation temperature difference between the target itself and the background, you can get different infrared images, which are also called thermal images.



2. How do infrared detectors work?

Infrared radiation that emitted by target enters the sensing range of the thermal detector, then the infrared detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.



3. What are the advantages of cooled infrared detectors?

The cooled infrared focal plane detector operates at a low temperature which is provided by a detector dewar cooler (ddc). It has high sensitivity and can distinguish more subtle temperature difference than uncooled infrared detector. It can detect, identify and recognize objects at a very long range which is more than ten kilometers away. The structure of cooled detector is very complex which results in a relatively high cost than uncooled detector.
