PLUG612 Uncooled LWIR Camera Core 640x512 12μm with Clear Thermal Imaging

I'm Online Chat Now

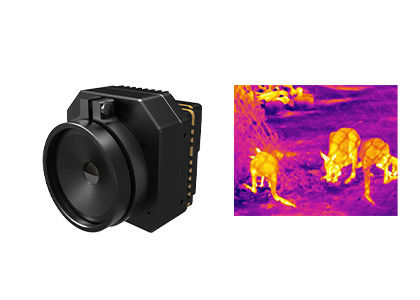

PLUG612 Uncooled LWIR Camera Core 640x512 12μm with Clear Thermal Imaging

PLUG612 Uncooled LWIR Camera Core 640x512 12μm with Clear Thermal Imaging
PLUG612 Uncooled LWIR Camera Core 640x512 12μm with Clear Thermal Imaging

Large Image :  PLUG612 Uncooled LWIR Camera Core 640x512 12μm with Clear Thermal Imaging

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: PLUG612
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Type: Uncooled Infrared Module Resolution: 640x512 / 12μm
Typical Power Consumption: <1.2W NETD: <30mK
Size: 44.5x44.5x36.6mm Weight: ≤85g
High Light:

Uncooled LWIR Camera Core

,

LWIR Camera Core 640x512

PLUG612 LWIR Thermal Module



PLUG612 Uncooled LWIR 640x512 / 12μm Infrared Camera Module with Clear Thermal Imaging



Product Description



PLUG612 is one of the PLUG series uncooled IR thermal camera modules developed by Global Sensor Technology (GST).



Consisted of 640x512 / 12µm uncooled thermal sensor, full series of optical components, signal processing circuit and unique image processing algorithm, the PLUG612 thermal imaging core provides clear image and superior performance.



The PLUG612 uncooled thermal module can be used in areas like animal observation, search and rescue, firefighting, UAV payloads etc.



Global Sensor technology is a leading infrared detector supplier and OEM camera module manufacturer. The company covers an area of 30 thousand square meters with 20 thousand square meters clean room, which can provide customers with a stable supply of infrared products.



Main Features


- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration
- Clear Image Quality & Details
- Strong Environmental Adaptability



Product Specifications



Model PLUG612
IR Detector Performance
Resolution 640x512
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 9Hz/25Hz/30Hz/50Hz/60Hz
Start-up Time <10s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656/LVDS
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 4~6V
Typical Power Consumption <1.2W
Physical Characteristics
Dimension (mm) 44.5x44.5x36.6
Weight ≤85g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 13mm/19mm/24mm



Industrial Applications



The PLUG612 thermal camera module is widely used in Security and Monitoring, Outdoors, Law Enforcement Rescue, Firefighting and Rescue, ADAS, UAV Payloads etc.



PLUG612 Uncooled LWIR Camera Core 640x512 12μm with Clear Thermal Imaging 0



Our Advantages



PLUG612 Uncooled LWIR Camera Core 640x512 12μm with Clear Thermal Imaging 1



FAQs



1. What can infrared imaging be used for?

-Night vision

-Search & rescue

-Non-destructive test

-Epidemic prevention

-Thermography

-Security & monitoring

-Firefighting



2. What is the difference between uncooled and cooled IR detectors?

There are currently two types of infrared thermal imaging sensors on the market, cooled and uncooled.

Uncooled IR detector operates at ambient temperature. It is based on semi-conductor industry and thus usually can be fabricated in big volume with small size and low cost. Uncooled IR detectors are widely used in portable/handheld/mobile devices.

Cooled IR detectors are packaged in a unit that keeps them at an extremely low temperature which shall be supported by a cryo cooler. They are much bigger, more expensive and less reliable than uncooled sensors, mainly due to the complex cooling systems they require. However, the cooled systems are incredibly sensitive and usually work with long focal length optics to achieve long range mission.



3. What are the advantages of infrared thermography?

For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation.

For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening.
