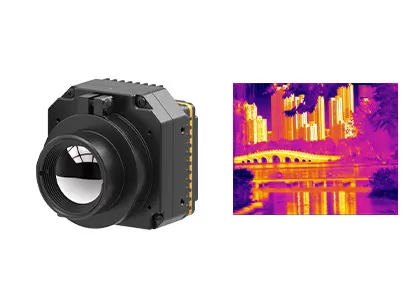

LWIR Thermal Camera Module 400x300 / 17μm with Clear Thermal Imaging

LWIR Thermal Camera Module 400x300 / 17μm with Clear Thermal Imaging
LWIR Thermal Camera Module 400x300 / 17μm with Clear Thermal Imaging

Large Image :  LWIR Thermal Camera Module 400x300 / 17μm with Clear Thermal Imaging

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: PLUG417
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
NETD: <30mK Weight: ≤77g
Type: Uncooled Camera Module Frame Rate: 9Hz/25Hz/30Hz/50Hz/60Hz
Resolution: 400x300 / 17μm Typical Power Consumption: <1.1W
High Light:

Thermal Camera Module 400x300

,

77g Thermal Camera Module

PLUG617 LWIR Camera Module



Stable Performance Uncooled LWIR 400x300 / 17μm Infrared Camera Module with Clear Thermal Imaging



Product Description



PLUG417 is one of the PLUG series uncooled thermal imaging sensor module developed by Global Sensor Technology (GST).



Consisted of 400x300 / 17µm uncooled thermal imaging sensor, full series of optical components, signal processing circuit and unique image processing algorithm, the PLUG417 infrared sensor module provides clear image and superior performance.



PLUG series thermal sensor camera modules are specially developed for various personalized observation requirements, which provide various standard industrial interfaces and infrared lens options to meet specific integration requirements. Some professional thermal imaging solutions have been applied to many applications.



Main Features


- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration & Plug-in
- Clear Image Quality & Details
- Strong Environmental Adaptability



Product Specifications



Model PLUG417
IR Detector Performance
Resolution 400x300
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 9Hz/25Hz/30Hz/50Hz/60Hz
Start-up Time <10s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656/LVDS
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 4.5~6V
Typical Power Consumption <1.1W
Physical Characteristics
Dimension (mm) 44.5mmx44.5mmx36.6mm
Weight ≤77g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm/35mm/50mm/60mm/100mm
Motorized Lens: 75mm/100mm/150mm
Continuous Optical Zoom: 30-150mm



Industrial Applications



The PLUG417 thermal camera module is widely used in Security and Monitoring, Outdoors, Law Enforcement Rescue, Firefighting and Rescue, ADAS, UAV Payloads etc.



LWIR Thermal Camera Module 400x300 / 17μm with Clear Thermal Imaging 0



Exhibitions



LWIR Thermal Camera Module 400x300 / 17μm with Clear Thermal Imaging 1

FAQs



1. What is the difference between uncooled and cooled IR detectors?



There are currently two types of infrared thermal imaging sensors on the market, cooled and uncooled.



Uncooled IR detector operates at ambient temperature. It is based on semi-conductor industry and thus usually can be fabricated in big volume with small size and low cost. Uncooled IR detectors are widely used in portable/handheld/mobile devices.



Cooled IR detectors are packaged in a unit that keeps them at an extremely low temperature which shall be supported by a cryo cooler. They are much bigger, more expensive and less reliable than uncooled sensors, mainly due to the complex cooling systems they require. However, the cooled systems are incredibly sensitive and usually work with long focal length optics to achieve long range mission.
