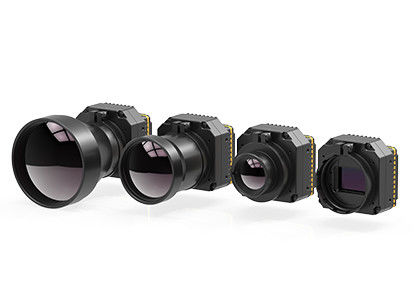

Stable Performance Thermal Camera Core Uncooled 640x512 / 17μm

I'm Online Chat Now

Stable Performance Thermal Camera Core Uncooled 640x512 / 17μm

Stable Performance Thermal Camera Core Uncooled 640x512 / 17μm
Stable Performance Thermal Camera Core Uncooled 640x512 / 17μm

Large Image :  Stable Performance Thermal Camera Core Uncooled 640x512 / 17μm

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: PLUG617
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 640x512 / 17μm NETD: <30mK
Size: 44.5x44.5x33.6mm Weight: <90g
Camera Lens: Multiple Available Spectral Range: 8~14μm LW
High Light:

Stable Performance Thermal Camera Core

,

Thermal Camera Core Uncooled

,

640x512 Uncooled Thermal Camera

PLUG617 Infrared Camera Module



PLUG617 Stable Performance 640x512 / 17μm Uncooled Thermal Camera Core by GST



Product Description



PLUG617 is one of the PLUG series uncooled thermal camera sensor module developed by Global Sensor Technology (GST).



Consisted of 640x512 / 17µm uncooled thermal camera sensor, the PLUG617 LWIR camera module provides clear image and superior performance. Except for the standard interfaces that is available for easy integration for OEM customers, we also provide personalized customization services so that our infrared camera module can be easily integrated into your existing systems.



GST focuses on quality control and assurance in industrial operations, process control, optimization and monitoring to provide products to the customer continuously and prevent production stoppages. We also have professional team to offer after-sales service to the customers. Our commitment to quality, performance and service is the corner stone of our business philosophy.



Main Features


- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration & Plug-in
- Clear Image Quality & Details
- Strong Environmental Adaptability



Product Specifications



Model PLUG617
IR Detector Performance
Resolution 640x512
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 9Hz/25Hz/30Hz/50Hz/60Hz
Start-up Time <10s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656/LVDS
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 4~6V
Typical Power Consumption <1.2W
Physical Characteristics
Dimension (mm) 44.5x44.5x36.6
Weight <90g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm/35mm/50mm/60mm/100mm
Motorized Lens: 75mm/100mm/150mm
Continuous Optical Zoom: 30-150mm



Industrial Applications



The PLUG617 thermal imager module is widely used in Security and Monitoring, Outdoors, Law Enforcement Rescue, Firefighting and Rescue, ADAS, UAV Payloads etc.



Stable Performance Thermal Camera Core Uncooled 640x512 / 17μm 0



About GST Infrared



Stable Performance Thermal Camera Core Uncooled 640x512 / 17μm 1



FAQs



1. What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal image with temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.



2. What can infrared imaging be used for?

-Night vision

-Search & rescue

-Non-destructive test

-Epidemic prevention

-Thermography

-Security & monitoring

-Firefighting



3. What is thermal imaging module?

A thermal imaging module usually consists of an infrared detector, infrared lens and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
