Cooled Thermal Camera Core 320x256 Resolution 30μm Pixel with RS058 Cryo Cooler

I'm Online Chat Now

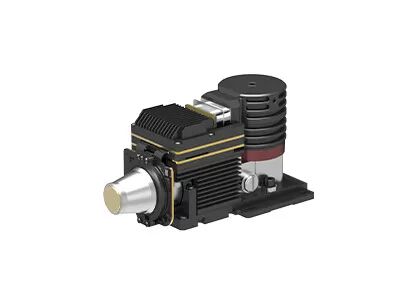

Cooled Thermal Camera Core 320x256 Resolution 30μm Pixel with RS058 Cryo Cooler

Cooled Thermal Camera Core 320x256 Resolution 30μm Pixel with RS058 Cryo Cooler
Cooled Thermal Camera Core 320x256 Resolution 30μm Pixel with RS058 Cryo Cooler

Large Image :  Cooled Thermal Camera Core 320x256 Resolution 30μm Pixel with RS058 Cryo Cooler

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: GAVIN330
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Detector Resolution: 320x256 / 30μm High Sensitivity: ≤10mK
Technology: MCT/HgCdTe Product Type: Cooled Infrared Module
Frame Rate: 50Hz/100Hz/200Hz Spectral Range: 3.7~4.8μm MW
High Light:

320x256 Thermal Camera Core

,

RS058 Thermal Camera Core

GST GAVIN330



MWIR 320x256 Resolution, 30μm Pixel Cooled Infrared Camera Core with RS058 Cryo Cooler



Product Description



GAVIN330 cooled camera module is one of GAVIN series with 320x256 / 30μm MWIR cooled detector and RS058 cryocooler inside. The GAVIN330 cooled thermal core can output clear infrared images in the total darkness or bad weather conditions both at short and long distance.



GAVIN series is the standard cooled infrared module developed by Global Sensor Technology (GST). We have more than 10 years of experience about infrared thermal imaging applications and a set of mature solutions available for customers. At the same time, we also have professional after-sales service team to provide you with professional reply. For any questions or problems, please contact us at any time, we will be in the first time for you to answer.



Main Features



- High Quality Thermal Imaging

- High Sensitivity, NETD≤10mK

- Long Range Detection

- Easy Integration into the System

- DVP/Cameralink Interface, RAW/YUV Image Output

- Various Continuous Optical Zoom Lenses are Available



Product Specifications



Model GAVIN330
IR Detector Performance
Resolution 320x256
Pixel Pitch 30μm
Cryocooler RS058
Spectral Range 3.7μm~4.8μm MW
Cooling Time(20°C) ≤7min
NETD (20°C) ≤10mK
Image Processing
Frame Rate 50Hz/100Hz/200Hz
Dimming Mode Linear/Histogram/Mixed
Digital Zoom ×1/×2/×4
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface J30JZ 25pin
Analog Video PAL
Digital Video 16bit RAW/YUV: 16bit DVP/Cameralink Output
External Sync Frame External Sync: RS422 Level
Communication RS422, 115200bps
Power Supply 20~28VDC
Stable Power Consumption 12W
Dimension (mm) 150×67×80
Weight ≤900g
Operation Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
Optical Lens
Optional Lens Continuous Zoom
30~240mm/F4
15~300mm/F4
21~420mm/F4
35~690mm/F4



Industrial Applications



The GAVIN330 cooled thermal core is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.



Cooled Thermal Camera Core 320x256 Resolution 30μm Pixel with RS058 Cryo Cooler 0



Praises from Customers



Cooled Thermal Camera Core 320x256 Resolution 30μm Pixel with RS058 Cryo Cooler 1

FAQs



1. What is the difference between Cooled MCT & T2SL Detector?

Low light needs natural light and transforms weak natural light image into enhanced electronic image through image intensifier;

Active IR actively emits infrared light and uses infrared beam reflected by the target. It has very poor concealment;

Thermal imaging doesn’t need any light and is a passive infrared night vision that detects infrared radiation difference between targets and scene or different parts of an object. not be affected by the changes of the surrounding lighting conditions, during night or even in fog, rain and other harsh environments.



2. Can you block thermal imaging?

In most cases, you cannot. But infrared rays can't penetrate walls, and also the glass can block IR. So, if you don’t want to be detected, you can conceal behind glass or walls to block the thermal imaging.
