640x512 15μm T2SL LWIR Thermal Camera Module High Resolution GAVIN615L

I'm Online Chat Now

640x512 15μm T2SL LWIR Thermal Camera Module High Resolution GAVIN615L

640x512 15μm T2SL LWIR Thermal Camera Module High Resolution GAVIN615L
640x512 15μm T2SL LWIR Thermal Camera Module High Resolution GAVIN615L

Large Image :  640x512 15μm T2SL LWIR Thermal Camera Module High Resolution GAVIN615L

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: GAVIN615L
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 640x512 / 15μm NETD: ≤25mK
Spectral Range: 7.7~9.5μm LW Size: 155x67x80mm
Technology: Infrared Material: T2SL
High Light:

T2SL Thermal Camera Module

,

Thermal Camera Module GAVIN615L

GST GAVIN615L



GAVIN615L High Resolution 640x512 / 15µm T2SL LWIR Cooled Thermal Imaging Module



Product Description

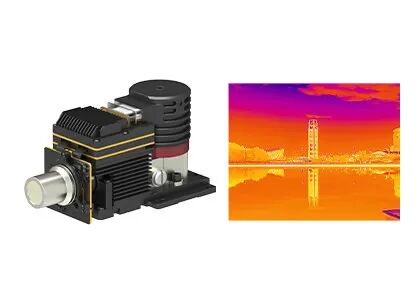

GAVIN615L is a cooled long wave thermal imaging module developed by Global Sensor Technology (GST). It consists of a 640x512 / 15µm high resolution T2SL LWIR IR detector with RS058 cryocooler, hardware electronics and various image processing algorithms are also embedded already to present sharp and clear thermal images.



GAVIN615L works in the spectral range of 7.7~9.5μm,with high performance under the conditions of sand or dust climate and will not be affected by sunlight flicker or any high temperature flame.



Main Features



- Meet the Needs of Long Range Detection

- High Sensitivity

- Long Range Detection

- Easy Integration into the System

- DVP/Cameralink Interface, RAW/YUV Image Output

- A Variety of Continuous Optical Zoom Lenses are Available



Product Specifications



Model GAVIN615L
IR Detector Performance
Resolution 640x512
Pixel Pitch 15μm
Cryocooler RS058
Spectral Range 7.7μm~9.5μm LW
Cooling Time (20°C) ≤7min
NETD (20°C) ≤25mK
Image Processing
Frame Rate 50Hz/100Hz
Dimming Mode Linear/Histogram/Mixed
Digital Zoom ×1/×2/×4
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface J30JZ 25pin
Analog Video PAL
Digital Video 16bit RAW/YUV: 16bit DVP/Cameralink Output
External Sync Frame External Sync: RS422 Level
Communication RS422, 115200bps
Power Supply 20~28VDC
Stable Power Consumption 14W
Dimension (mm) 155×67×80
Weight ≤900g
Operation Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
Optical Lens
Optional Lens Fixed Zoom: 25mm/F2



Industrial Applications



The GAVIN615L cooled infrared camera module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.



640x512 15μm T2SL LWIR Thermal Camera Module High Resolution GAVIN615L 0



Exhibitions

640x512 15μm T2SL LWIR Thermal Camera Module High Resolution GAVIN615L 1



FAQs



1. How to choose proper infrared detector resolution?
It depends on the actual needs and applications of your products, and the price is also a factor that needs to be considered. If the image quality is not high, you can choose the infrared detector with low resolution, such as 120x90, 256x192, 400x300. If you need a very clear image for some special purposes, such as remote monitoring, you can choose a high resolution infrared detector of 1280x1024.



2. How to select right pseudo color for thermal imaging?
- The gray white is more suitable for the target with small temperature difference
- The red and blue is more suitable for the scene where the problem points need to be found.
- The iron red is the standard color palette of the power industry.
Note: no matter which palette you choose, the thermal temperature will not change at all.



3. How to choose a suitable infrared thermal camera lens?
- Standard lens can meet normal targets with appropriate distance
- For the telephoto lens, it’s suitable for targets that is relatively small and needs to be viewed from a long distance
- To see more detail of objects at close distance, wide angle lens is better.
- Macro lens is for seeing very tinny target with close distance, such as chip circuit.
