GAVIN615L T2SL Thermal Camera Core LWIR Cooled Thermal Image Sensor Module

I'm Online Chat Now

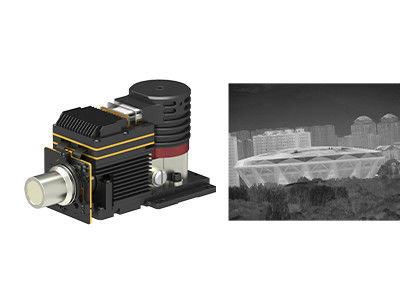

GAVIN615L T2SL Thermal Camera Core LWIR Cooled Thermal Image Sensor Module

GAVIN615L T2SL Thermal Camera Core LWIR Cooled Thermal Image Sensor Module
GAVIN615L T2SL Thermal Camera Core LWIR Cooled Thermal Image Sensor Module

Large Image :  GAVIN615L T2SL Thermal Camera Core LWIR Cooled Thermal Image Sensor Module

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: GAVIN615L
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 640x512 / 15μm Cryo Cooler: RS058
NETD: ≤25mK Frame Rate: 50Hz/100Hz
Size: 155x67x80mm Weight: ≤900g
High Light:

T2SL Thermal Camera Core

,

640x512 Thermal Image Sensor Module

,

900g Thermal Camera Core

GAVIN615L Cooled Thermal Camera Core



GAVIN615L T2SL 640x512 / 15µm LWIR Cooled Camera Module for Clear Thermal Imaging



Product Description



GAVIN series is the standard cooled infrared module developed by Global Sensor Technology (GST). It is available with different resolution formats, different wave bands and also different continuous optical lens options. GAVIN615L thermal imaging module is one of GAVIN series with 640x512 / 15µm T2SL LWIR detector and RS058 cryocooler inside.



Various image processing algorithms are already embedded in the GAVIN615L electronics to output clear infrared images in the total darkness or bad weather conditions. It can detect and recognize risks and threats at long distance while present more target details at short distance.



Main Features



- Meet the Needs of Long Range Detection

- High Sensitivity

- Easy Integration into the System

- DVP/Cameralink Interface, RAW/YUV Image Output

- A Variety of Continuous Optical Zoom Lenses are Available



Product Specifications



Model GAVIN615L
IR Detector Performance
Resolution 640x512
Pixel Pitch 15μm
Cryocooler RS058
Spectral Range 7.7μm~9.5μm LW
Cooling Time (20°C) ≤7min
NETD (20°C) ≤25mK
Image Processing
Frame Rate 50Hz/100Hz
Dimming Mode Linear/Histogram/Mixed
Digital Zoom ×1/×2/×4
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface J30JZ 25pin
Analog Video PAL
Digital Video 16bit RAW/YUV: 16bit DVP/Cameralink Output
External Sync Frame External Sync: RS422 Level
Communication RS422, 115200bps
Power Supply 20~28VDC
Stable Power Consumption 14W
Dimension (mm) 155×67×80
Weight ≤900g
Operation Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
Optical Lens
Optional Lens Fixed Zoom: 25mm/F2



Industrial Applications



The GAVIN615L thermal imaging module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.



GAVIN615L T2SL Thermal Camera Core LWIR Cooled Thermal Image Sensor Module 0



About GST Infrared



GAVIN615L T2SL Thermal Camera Core LWIR Cooled Thermal Image Sensor Module 1

FAQs



1. What is infrared thermography?
Thermography is a new and effective technology of non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.



2. What can the infrared thermography be used for?
The infrared thermal image can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals and much more.



3. What are the advantages of infrared thermography?
For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation.
For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening.
