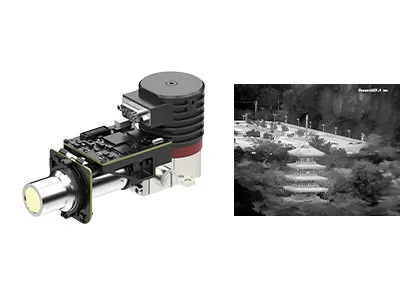

RS058 Cryocooler Cooled Thermal Camera Module T2SL LWIR 640x512 / 15μm

I'm Online Chat Now

RS058 Cryocooler Cooled Thermal Camera Module T2SL LWIR 640x512 / 15μm

RS058 Cryocooler Cooled Thermal Camera Module T2SL LWIR 640x512 / 15μm
RS058 Cryocooler Cooled Thermal Camera Module T2SL LWIR 640x512 / 15μm

Large Image :  RS058 Cryocooler Cooled Thermal Camera Module T2SL LWIR 640x512 / 15μm

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: EYAS615L
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 640x512 / 15μm NETD: ≤25mK
Spectral Range: 7.7~9.5μm (LW) Size: 148x58.5x71mm
High Light:

RS058 Thermal Camera Module

,

Thermal Camera Module 640x512

EYAS615L Cooled Thermal Module by GST Infrared



Easy Integration 640x512 / 15μm T2SL LWIR Cooled Infrared Module with RS058 Cryocooler



Product Description



EYAS615L AD module is an analog-digital LWIR cooled infrared module based on 640x512 formats 15μm pitch IR FPA. The typical NETD of EYAS615L is less than 25mK. The high sensitivity ensures detection or recognition for very tiny infrared radiation difference at very long distance.



EYAS 615L includes a proximity board that provides the FPA timing, and the sensitive power supplies. In addition, the Camera Link interface outputs 16bit raw data which highly simplifies the integration of the detector to the system.



Therefore, EYAS615L module makes it easy for OEM customers to carry out fast acceptance test on GST C615S 640x512 / 15μm LWIR cooled infrared detector, start rapid secondary development and shorten their development period of cooled infrared modules or complete infrared thermal cameras or systems based on cooled infrared detectors.



Main Features



- Easy to Develop & Integrate

- Cameralink Interface Output 16bit Raw Data, Serial Port Control

- Integrated Structure, Dimensions are Consistent with Detector

- 5V Single-supply

- Capable of Capturing High Speed Moving Target



Product Specifications



Model EYAS615L
IR Detector Performance
Resolution 640x512
Pixel Pitch 15μm
Cryocooler RS058
Spectral Range 7.7μm~9.5μm LW
Cooling Time (25°C) ≤5.5min
Optimal NETD (20°C) ≤25mK
Working Mode
Frame Rate 1~160Hz Adjustable
Working Mode Snapshot; ITR & Interlace Binning Integration Mode; Windows Mode; Anti-blooming
Electrical Specification
Standard External Interface QSH 60pin
Digital Video Cameralink: Output 16bit Raw Data
External Sync CC1: INT/Frame External Sync; CC2: MC External Sync
Communication Cameralink Serial Port: TFG+/-, TC+/-; 9600bps
Power Supply 1 Channel Imaging Panel: 5V
1 Channel Cryocooler: 24V
Stable Power Consumption 9W
Dimension (mm) 148×58.5×71
Weight ≤680g
Working Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each



Industrial Applications



The EYAS615L thermal imaging module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.



RS058 Cryocooler Cooled Thermal Camera Module T2SL LWIR 640x512 / 15μm 0



Exhibitions

RS058 Cryocooler Cooled Thermal Camera Module T2SL LWIR 640x512 / 15μm 1



FAQs



1. What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. According to the radiation difference between the object and the background environment and the radiation difference of each part of the object itself, the infrared thermal image can show the radiation fluctuation of each part of the scene, thus showing the characteristics of the scene.



2. What is the advantage of infrared thermal imaging?

---See through total darkness;

---Identification under camouflage;

---Long range detection;

---Heat distribution detection;

---Non-contact temperature measurement;

---Occupation awareness



3. What is the applications of infrared thermal imaging?

Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in electric power, security & monitoring, industrial manufacturing, scientific research, medical treatment and other traditional fields.
