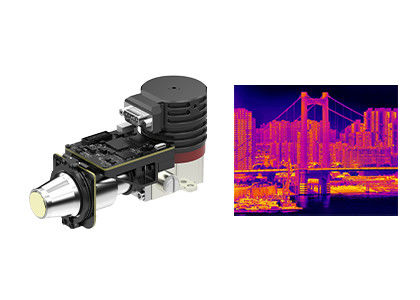

15μm 640x512 MCT MWIR Camera Core Cooled Infrared Detector Fast Integration

I'm Online Chat Now

15μm 640x512 MCT MWIR Camera Core Cooled Infrared Detector Fast Integration

15μm 640x512 MCT MWIR Camera Core Cooled Infrared Detector Fast Integration
15μm 640x512 MCT MWIR Camera Core Cooled Infrared Detector Fast Integration

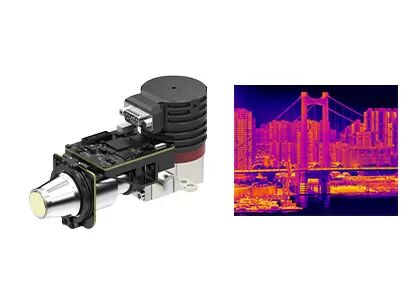

Large Image :  15μm 640x512 MCT MWIR Camera Core Cooled Infrared Detector Fast Integration

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: EYAS615A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 640x512 / 15μm Cryocooler: RS058
NETD: ≤17mK Spectral Range: 3.7~4.8μm
Size: 147x58.5x71mm Weight: ≤680g
High Light:

640x512 MWIR Camera Core

,

MCT MWIR Camera Core

,

MWIR Cooled Infrared Detector

EYAS615A Cooled Thermal Module by GST Infrared



Cooled AD Module with 640x512 / 15μm MCT MWIR Cooled Infrared Detector for Fast Integration



Product Description



EYAS series cooled AD modules have the pre-amplifier function to convert the analog signal from cooled IR detectors into a digital video stream output. It is available with different resolution formats and different wave bands. EYAS615A is a member of EYAS family with 640x512 / 15μm MWIR cooled detector and RS058 cryocooler integrated.



With EYAS series cooled AD module, it is easy for OEM customers to carry out fast acceptance test on GST infrared detectors, start rapid secondary development and shorten their development period of modules and complete products based on cooled infrared detectors.



Global Sensor Technology specializes in the design, manufacture, sales and marketing of thermal imaging detectors and infrared modules. We can provide our customers a variety of infrared thermal imaging solutions which shorten secondary development time and greatly reduce the cost for customers.



Main Features



- Detector Resolution: 640x512 / 15μm

- Detector Material: MCT / HgCdTe

- Cryocooler: RS058

- Frame Rate: 1~120Hz Adjustable

- Size: 147×58.5×71mm

- Weight: ≤680g

- Easy to be Developed & Integrated



Product Specifications



Model EYAS615A
IR Detector Performance
Resolution 640x512
Pixel Pitch 15μm
Cryocooler RS058
Spectral Range 3.7μm~4.8μm MW
Cooling Time (25°C) ≤6min
Optimal NETD (20°C) ≤17mK
Working Mode
Frame Rate 1~120Hz Adjustable
Working Mode Snapshot; ITR/IWR Integration Mode; Windows Mode; Anti-blooming
Electrical Specification
Standard External Interface QSH 60 pin
Digital Video Cameralink: Output 16bit Raw Data
External Sync CC1: INT/Frame External Sync; CC2: MC External Sync
Communication Cameralink Serial Port: TFG+/-, TC+/-; 9600bps
Power Supply 1 Channel Imaging Panel: 5V
1 Channel Cryocooler: 24V
Stable Power Consumption 7W
Dimension (mm) 147×58.5×71
Weight ≤680g
Working Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each



Industrial Applications



The EYAS615A thermal imaging module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.



15μm 640x512 MCT MWIR Camera Core Cooled Infrared Detector Fast Integration 0



Our Infrared Detector Line



15μm 640x512 MCT MWIR Camera Core Cooled Infrared Detector Fast Integration 1

FAQs



1. What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. According to the radiation difference between the object and the background environment and the radiation difference of each part of the object itself, the infrared thermal image can show the radiation fluctuation of each part of the scene, thus showing the characteristics of the scene.



2. What is the advantage of infrared thermal imaging?

---See through total darkness

---Identification under camouflage

---Long range detection

---Heat distribution detection

---Non-contact temperature measurement

---Occupation awareness

---And so on



3. What is the applications of infrared thermal imaging?

Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in electric power, security & monitoring, industrial manufacturing, scientific research, medical treatment and other traditional fields.
