Resolution: 1280x1024 / 12μm High Sensitivity: NETD≤20mK
Power Consumption: 9W Spectral Range: 3.7~4.8μm MW
Size: 149x58.5x71mm Weight: ≤680g
High Light:

1280x1024 Mct Ir Detector

,

5V Mct Ir Detector

EYAS1212 Thermal Module

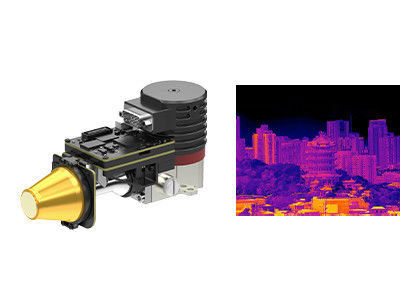

Cooled AD Module with 1280x1024 / 12μm MCT MWIR Cooled Infrared Detector for Fast Integration



Product Description



EYAS series cooled AD modules have the pre-amplifier function to convert the analog signal from cooled infrared detectors into a digital video stream output. It is available with different resolution formats and different wave bands. EYAS1212 is a member of EYAS family with large array 1280x1024 / 12μm MWIR cooled infrared detector integrated.



EYAS1212 AD module makes it an accelerator for OEM customers to carry out fast acceptance test on GST C1212M 1280x1024@12μm cooled infrared detector, start rapid secondary development and shorten their development period of cooled infrared modules or complete infrared thermal cameras or systems based on cooled infrared detectors.



Main Features



- Easy to Develop & Integrate

- Cameralink Interface Output 16bit Raw Data, Serial Port Control

- Integrated Structure, Dimensions are Consistent with Detector

- 5V Single-supply

- Capable of Capturing High Speed Moving Target



Product Specifications



Model EYAS1212
IR Detector Performance
Resolution 1280x1024
Pixel Pitch 12μm
Cryocooler RS058F
Spectral Range 3.7μm~4.8μm MW
Cooling Time (25°C) ≤6min
Optimal NETD (20°C) ≤20mK
Working Mode
Frame Rate 1~100Hz Adjustable
Working Mode Snapshot; ITR/IWR Integration Mode; Windows Mode; Anti-blooming
Electrical Specification
Standard External Interface QSH 60pin
Digital Video Cameralink: Output 16bit Raw Data
External Sync CC1: INT/Frame External Sync; CC2: MC External Sync
Communication Cameralink Serial Port: TFG+/-, TC+/-; 9600bps
Power Supply 1 Channel Imaging Panel: 5V
1 Channel Cryocooler: 24V
Stable Power Consumption 9W
Dimension (mm) 149×58.5×71
Weight ≤680g
Working Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each



Industrial Applications



The EYAS1212 thermal imaging module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.



1280x1024 / 12μm MCT IR Detector Cooled AD Module for Fast Integration 0



Our Advantages



1280x1024 / 12μm MCT IR Detector Cooled AD Module for Fast Integration 1



FAQs



1. What is infrared thermal imaging?

Infrared thermal imaging is a method of using infrared radiation and thermal energy to gather information about objects, in order to formulate images of them, or get temperature information of the objects, even in low visibility environments.



2. How does Infrared Thermal Imaging Work?
Infrared thermal imaging system is a passive non-contact detection and identification of infrared technology. It focuses the infrared radiation of the scene on the focal plane array infrared detector through the infrared optical system that can pass through infrared radiation. The thermal detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.
