RS046H Split Integrated Dewar Cooler Assembly

I'm Online Chat Now

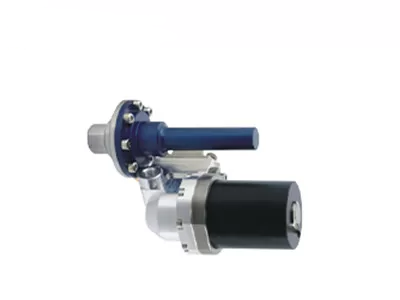

RS046H Split Integrated Dewar Cooler Assembly

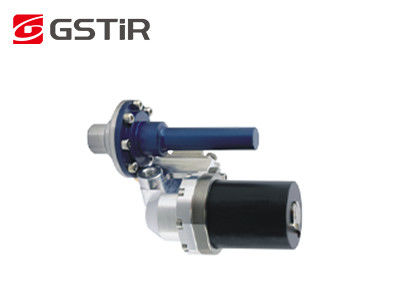

RS046H Split Integrated Dewar Cooler Assembly

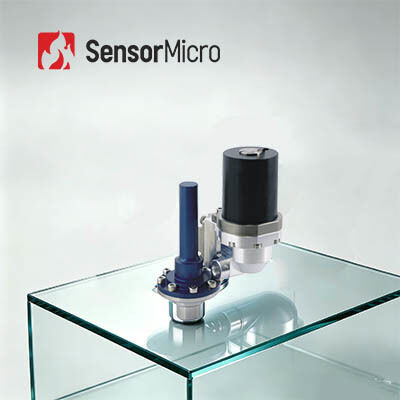

RS046H Split Integrated Dewar Cooler Assembly

Large Image :  RS046H Split Integrated Dewar Cooler Assembly

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: RS046H
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Cooling Power: (@100K@20℃)>400mW Stable Power Consumption: <3.5W (130mW@100K@20°C)
Working Temperature: -45℃~+85℃ Size: 45x34x67mm
Weight: <250g MTTF: >10000h
High Light:

Split Integrated Dewar Cooler Assembly

,

RS046H Integrated Dewar Cooler Assembly

RS046H Cryo Cooler



RS046H 400mW Split Rotary Stirling Cryocooler for Cooled Infrared Detectors



Product Description



RS046H is a split version of RS046 rotary stirling cooler developed by Global Sensor Technology (GST). With the same compressor structure of RS046, the split format RS046H is even smaller in size.



The cold finger in RS046H dewar cooler has the same diameter as that in RS046 cooler but with shorter length. Benefit from the split design of the compressor and the cold finger, the infrared system with RS046H integrated is flexible in special design. What's more, the cooled detector itself is separated from the vibration source, which enables the RS046H optimal in application requiring better vibration and special conditions.



Due to its lightweight, miniaturization and low power consumption, it is easier for the cryo cooler to be integrated into various terminal products, which can greatly reduce the cost and meet different customized needs of customers.



Main Features



- MTTF>10000hrs

- Cooling Power: (@100K@20℃)>400mW

- Cooling Time: <5mins(110J@100K@20℃)

- Small Size

- Low Noise

- Low Consumption



Product Specifications



Model RS046H
Type Split Rotary Stirling Cryocooler
MTTF >10000hrs
Size (mm)

45×34×67

Φ38×70

Weight <250g
Cooling Power (@100K@20°C)>400mW
Working Temperature -45°C ~ +85°C
Storage Temperature -56°C~ +85°C
Environmental Specification MIL-STD-810
Input Voltage 24-32VDC
Max Power Consumption <12W
Steady Power Consumption <3.5W (130mW@100K@20°C)
Cooling Time <5min (110J@100K@20°C)
Cold Finger Dimension Φ6.4mm
Electronics External
Integration Method IDDCA



Industrial Applications



The RS046H integrated dewar cooler assembly is used for provide cryogenic environment for the cooled infrared detectors.



Our Advantages



RS046H Split Integrated Dewar Cooler Assembly 0



FAQs



1.What is infrared thermal imaging?

In nature, all objects whose temperature is higher than absolute zero (- 273 ℃) can radiate infrared rays. By using the infrared camera detector to measure the infrared radiation temperature difference between the target itself and the background, you can get different infrared images, which are also called thermal images.



2. How do infrared detectors work?

Infrared radiation that emitted by target enters the sensing range of the thermal detector, then the infrared detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.



3. What are the advantages of cooled infrared detectors?

The cooled infrared focal plane detector operates at a low temperature which is provided by a detector dewar cooler (ddc). It has high sensitivity and can distinguish more subtle temperature difference than uncooled infrared detector. It can detect, identify and recognize objects at a very long range which is more than ten kilometers away. The structure of cooled detector is very complex which results in a relatively high cost than uncooled detector.
