Radiometric VOx Thermal Camera Module Uncooled 640X512 / 12μm

I'm Online Chat Now

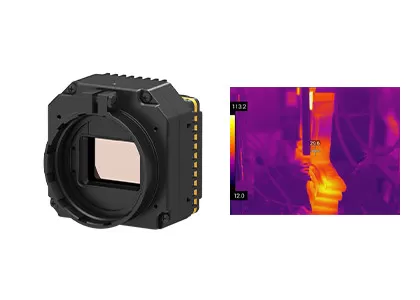

Radiometric VOx Thermal Camera Module Uncooled 640X512 / 12μm

Radiometric VOx Thermal Camera Module Uncooled 640X512 / 12μm
Radiometric VOx Thermal Camera Module Uncooled 640X512 / 12μm

Large Image :  Radiometric VOx Thermal Camera Module Uncooled 640X512 / 12μm

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: PLUG612R
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 640x512 / 12μm NETD: <30mK
Spectral Range: 8~14μm Size: 44.5x44.5x33.6mm
High Light:

Radiometric Thermal Camera Module

,

VOx Thermal Camera Module

,

VOx Module

PLUG612R Thermal Module



PLUG612R LWIR Uncooled Thermal Imaging Camera Module with 640x512 / 12μm Thermal Sensor



Product Description



PLUG612R thermal imaging module is radiometric-capable and has available infrared non-contact temperature measurement function. It integrates 640x512 / 12μm uncooled thermal infrared detector to quickly obtain thermal images of the target area and heat distribution.



PLUG612R uncooled LWIR infrared camera module produces sharp and clear thermal image quality. This uncooled infrared thermal imaging module is applied in the field of industrial thermal imaging and temperature measurement. Its temperature range is customizable, which can meet the specific requirements of industrial thermography.



Global Sensor Technology specializes in the design, manufacture, sales and marketing of infrared thermal detectors and thermal camera cores. We can provide our customers a variety of infrared thermal imaging solutions which shorten secondary development time and greatly reduce the cost for customers.



Main Features


- Detector Type: Uncooled Microbolometer

- Detector Material: Vanadium Oxide

- NETD<30mk, High Sensitivity
- Stable Performance
- Strong Environmental Adaptability



Product Specifications



Model PLUG612R
IR Detector Performance
Resolution 640x512
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 25Hz/30Hz
Start-up Time <10s
Analog Video PAL/NTSC
Digital Video Y16/YUV/BT656/LVDS
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 4~6V
Temperature Measurement
Operating Temperature Range -10°C~50°C
Temperature Range -20°C~150°C, 100°C~550°C
Temperature Accuracy ±2°C or ±2% (Take the Maximum Value)
SDK ARM/Windows/Linux SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm) 44.5x44.5x36.6
Weight ≤85g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 13mm/19mm/24mm



Industrial Applications



The PLUG612R thermal sensor module is widely used in Electric Power Inspection, Machine Vision, Building HVAC Security & Monitoring, Outdoors, Firefighting & Rescue, Law Enforcement & Rescue, ADAS, UAV Payloads etc.



Radiometric VOx Thermal Camera Module Uncooled 640X512 / 12μm 0



About Global Sensor Technology



Radiometric VOx Thermal Camera Module Uncooled 640X512 / 12μm 1



FAQs



1. How does uncooled focal plane array microbolometer work?

By using the principle of infrared radiant thermal effect, the uncooled infrared detector converts infrared radiation energy into heat energy with infrared absorption material, so that the temperature of the sensitive material increases. Then, a certain physical parameter of the sensitive material changes accordingly and converts into electrical signal or visible light signal through a certain conversion mechanism designed to realize the detection of the object.



2. What's the advantage of uncooled infrared detector?

Uncooled infrared focal plane detector does not need an Integrated Dewar Cooler Assembly (IDCA) device and can work at room temperature. It has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on. Although the sensitivity of uncooled infrared focal plane detector is not as good as that of cooled infrared detectors, after years of development, its cost performance has been obviously better than the cooled detector, which has a broader application prospect.
