Home ProductsThermal Camera Core

640x512 / 12μm LWIR Thermal Module Uncooled Multiple Standard Interfaces

I'm Online Chat Now

640x512 / 12μm LWIR Thermal Module Uncooled Multiple Standard Interfaces

640x512 / 12μm LWIR Thermal Module Uncooled Multiple Standard Interfaces
640x512 / 12μm LWIR Thermal Module Uncooled Multiple Standard Interfaces
video play

Large Image :  640x512 / 12μm LWIR Thermal Module Uncooled Multiple Standard Interfaces

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: COIN612/R
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 640x512 / 12μm NETD: <40mK
Spectral Range: 8~14μm Size: 25.4x25.4x14.1mm
Temperature Range: -20℃~+150℃ (Customizable) Temperature Accuracy: ±3℃ Or ±3%
High Light:

640x512 LWIR Thermal Module

,

Multiple Standard LWIR Thermal Module

COIN612/R Infrared Sensor Module

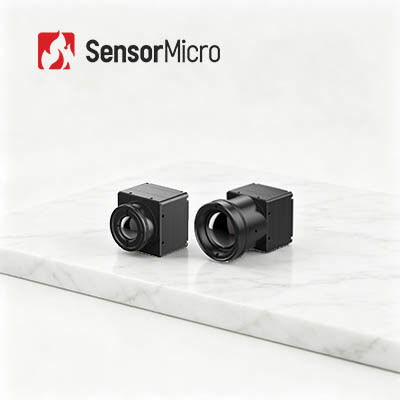

LWIR 640X512 / 12μm Uncooled Infrared Module Integrated in Thermal Imager, Infrared Camera



Product Description



COIN612/R infrared thermal camera module adopts state-of-the-art 12μm VOx microbolometer technology and integrates 640x512 wafer level package (WLP) infrared thermal detector. It features in precise visualization and crisp image presentation, compact size and low cost.



The COIN612/R thermal camera core has an optional thermographic function with measurement range from -20℃~550. Its infrared radiometric measurement derives a more precise and more credible result than thermocouples on the measurements of temperature field.



Thanks to its fully optimized structure, low power consumption and various standard interfaces, COIN612 infrared camera module can provide customers with some standard configurations. Also some customized OEM solutions are available to meet the requirements of customers. It is easily integrate into many kinds of devices like unmanned aerial vehicles (UAV), drones, as well as police and firefighting units.



Main Features


- Sharp & crisp thermal imaging presentation
- Precise temperature measurement
- A variety of successful integration solutions
- Multiple standard interfaces for easy integration



Product Specifications



Model COIN612/R
IR Detector Performance
Resolution 640x512
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD <40mk
Image Processing
Frame Rate 25Hz/30Hz/50Hz/60Hz
Start-up Time <3s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally
Image Algorithm NUC/AGC/IDE/DNR
Electrical Specification
Standard External Interface 30pin_HRS
Communication Mode RS232-TTL, 115200bps
Supply Voltage 3.5~5.5V
Typical Power Consumption <0.75W
Temperature Measurement
Operating Temperature Range -10°C~50°C
Temperature Measurement Range -20°C~150°C, 100°C~550°C
Temperature Accuracy ±3°C or ±3% (Take the Maximum Value)
SDK Support ARM/Windows/Linux SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm) 25.4x25.4x14.1 (With Shutter)
Weight Module: 13g±0.5g (With Shutter)
Module+8.8mm Lens: 22.4g±0.5g
Module+13mm Lens: 41g±0.5g
Module+19mm Lens: 43.9g±0.5g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 8.8mm/13mm/19mm



Industrial Applications



The COIN612/R uncooled VOx LWIR infrared sensor module is widely used in Thermography, Security & Monitoring, Outdoors, Firefighting & Rescue, AIoT, Intelligent Hardware, UAV Payloads, ADAS etc.



640x512 / 12μm LWIR Thermal Module Uncooled Multiple Standard Interfaces 0



Honors & Certificates



640x512 / 12μm LWIR Thermal Module Uncooled Multiple Standard Interfaces 1



FAQs



1. What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. According to the radiation difference between the object and the background environment and the radiation difference of each part of the object itself, the infrared thermal image can show the radiation fluctuation of each part of the scene, thus showing the characteristics of the scene.



2. What is the advantage of infrared thermal imaging?

---See through total darkness;

---Identification under camouflage;

---Long range detection;

---Heat distribution detection;

---Non-contact temperature measurement;

---Occupation awareness



3. What is the applications of infrared thermal imaging?

Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in electric power, security & monitoring, industrial manufacturing, scientific research, medical treatment and other traditional fields.
