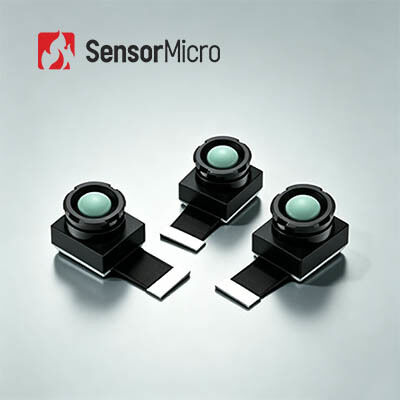

OEM Uncooled Thermal Camera Module with 256x192 Resolution and 12μm Pixel Size for Focus Free Night Vision
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | TIMO212 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Temperature Range | -20℃~+550℃ | Temperature Accuracy | ±2℃ Or ±2% |
|---|---|---|---|
| Resolution | 256x192/12μm | Focus Mode | Focus Free |
| Output Data | 14bit Raw | Spectral Range | 8~14μm |
| Highlight | OEM Thermal Camera Module,256x192 Thermal Camera Module |
||
Product Description
OEM Thermal Camera Module Uncooled 256x192 / 12μm for Night Vision Security Camera
Product Overview
OEM Uncooled Thermal Module 256x192 / 12 μm for Night Vision Camera, Surveillance Camera
TIMO212 is an uncooled infrared miniature module that captures long-wave infrared (LWIR) spectrum from 8 to 14μm. It features a self-developed 256×192/12μm wafer-level detector, along with a wafer-level optical lens and micro-electromagnetic valve shutter, enabling precise temperature data and heat distribution capture for specific target areas.
The product is engineered to accommodate integration across diverse sectors including mobile terminals, instruments and meters, and the Internet of Things (IoT). It offers exceptional miniaturization and ultra-low power consumption, while supporting multiple field-of-view lens options to meet varying requirements for viewing angles and imaging quality across different application scenarios.
Main Features
- Ultra-Miniature Module with Ultimate SWaP-C Optimization - Wafer-level packaged detector + wafer-level optics + micro-electromagnetic valve shutter. The smallest infrared thermal module, enabling basic thermal imaging functionality with maximum cost efficiency. Compact size, lightweight, and low power consumption, ideal for integration into miniature devices.
- Flexible Optic Options, Accurate Temperature Measurement - Multiple lens options available, including wide-angle and telephoto, to meet diverse application needs. High-precision temperature measurement with accuracy up to ±2°C; supports both regional and full-frame temperature monitoring.
- Easy Integration, Fast Development - Supports DVP image interface, compatible with various embedded platforms. Compliant with RoHS 2.0 environmental standards.
Product Specifications
| Model | TIMO212 |
|---|---|
| Resolution | 256×192 |
| Pixel Size | 12μm |
| Spectral Response | 8-14μm |
| Focus Mode | Focus Free |
| Lens (HFOV/FL) | 17.5°/10mm | 25°/7mm | 56°/3.2mm | 90°/2.1mm |
| Weight (g) | 5.1±0.4 | 4.4±0.4 | 2±0.2 | 4.8±0.4 |
| Size (mm, without FPC) | 16×14×18 | 16×14×14.6 | 14×12×9.8 | 16×14×15.6 |
| Number of PINs | 40PIN |
| Output Data | 14bit Raw |
| Frame Rate | Thermography: 25Hz, Imaging: 50Hz |
| Temperature Measurement Range | -20℃~+550℃(-20℃~+150℃ | +100℃~550℃) |
| Temperature Measurement Accuracy | Greater of ±2℃ / ±2% |
| Operating Temperature | -20℃~+60℃ |
| Humidity | 5%~85% |
| Storage Temperature | -45℃~+85℃ |
| Certification | RoHS 2.0 / Reach |
Industrial Applications
The TIMO212 infrared thermal camera module is widely used in Smart Security, AloT, Night Observation, Instruments and Meters, Machine Vision etc.
Our Advantages
Stable Supply
Boasting a stable and reliable supply chain across our full ecosystem, we can respond quickly to market demands.
Sustaining Innovation
With expertise in detector manufacturing and experience in supporting system integration, we gain deep insight into performance requirements, continuously optimize designs, and create a virtuous cycle: Product Application → Technical Feedback → Product Upgrade.
Cost Advantage
By managing the entire production chain and leveraging efficient, large-scale manufacturing, we deliver competitive pricing for a wide range of applications.
Frequently Asked Questions
What is infrared thermal imaging?
Infrared thermal imaging is a method which utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal image with temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.
What can infrared imaging be used for?
Night vision, Search & rescue, Non-destructive test, Epidemic prevention, Thermography, Security & monitoring, Firefighting, and more.
What is thermal imaging module?
A thermal imaging module usually consists of an infrared detector, infrared lens and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
