Compact Uncooled Longwave 120x90 / 17μm Infrared Thermal Camera Core for Emerging Markets

I'm Online Chat Now

Compact Uncooled Longwave 120x90 / 17μm Infrared Thermal Camera Core for Emerging Markets

Compact Uncooled Longwave 120x90 / 17μm Infrared Thermal Camera Core for Emerging Markets
Compact Uncooled Longwave 120x90 / 17μm Infrared Thermal Camera Core for Emerging Markets

Large Image :  Compact Uncooled Longwave 120x90 / 17μm Infrared Thermal Camera Core for Emerging Markets

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: TIMO120
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 120x90 Pixel Pitch: 17μm
NETD: ≤60mK Spectral Range: 8~14μm
Size: 8.5x8.5x9.16mm Temperature Range: -20℃~+120℃ (Customizable)

TIMO120 Uncooled Thermal Core



Compact Uncooled Longwave 120x90 / 17μm Infrared Thermal Camera Core for Emerging Markets



Product Description



TIMO120 thermal imaging module is radiometric-capable and has available infrared non-contact temperature measurement function. It integrates 120x90 / 17μm wafer level package (WLP) infrared detector and basic image processing circuit to quickly obtain thermal images of the target area and heat distribution.



Compared with traditional temperature measuring tools, the TIMO120 infrared thermal core has greater sensitivity than the common thermopile arrays during the epidemic prevention. Also by using wafer level packaging, TIMO120 thermal core is more affordable in the infrared imaging applications that need strict requirements on cost, size and weight.



Global Sensor Technology is a supplier of infrared detectors sensors and OEM thermal camera cores. We have more than 10 years of experience in the infrared thermal imaging industries. We have professional after-sales service team to provide customers with professional reply. For any questions or problems, please contact us at any time, we will be in the first time for you to answer.



Main Features



- Small Size

- Light Weight

- Affordable Price

- Easy Integration

- Low Power Consumption



Product Specifications



Model TIMO-120
IR Detector Performance
Resolution 120x90
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD ≤60mK
Lens Type WLO
Focus Mode Fixed Zoom
HFOV 90°/50°
Depth of Field 10cm to Infinity
Frame Rate 1~30Hz (Customizable)
Temperature Measurement
Temperature Range -20°C ~ +120°C (Customizable)
Temperature Accuracy Customizable (Meet the Requirements of Body or Industrial Thermography)
Interface/Control
AVDD 3.6V±0.05V
VSK/VDET 4.7±0.05V
DVDD 1.8V±0.05V
Interface Digital Interface
Power Consumption 45mW (Typical Mode); 9mW (Low Power Mode)
Physical Characteristics
Dimension (mm) 12x10x5.48 (HFOV=90°); 8.5x8.5x9.16 (HFOV=50°) (The Specifications Shall Prevail)
Operation Temperature -20°C ~ +60°C
Storage Temperature -40°C ~ +85°C



Industrial Applications



The TIMO120 uncooled thermal core is widely used in many areas, such as Thermography, Intelligent Hardware, Smart Building, Smart Home, AIoT etc.

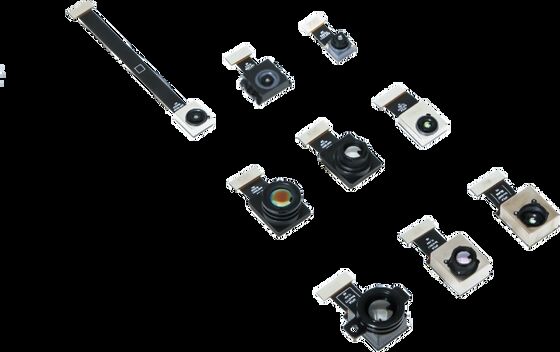

Compact Uncooled Longwave 120x90 / 17μm Infrared Thermal Camera Core for Emerging Markets 0



Exhibitions



Compact Uncooled Longwave 120x90 / 17μm Infrared Thermal Camera Core for Emerging Markets 1



FAQs



1. What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal image with temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.



2. What can infrared imaging be used for?

-Night vision

-Search & rescue

-Non-destructive test

-Epidemic prevention

-Thermography

-Security & monitoring

-Firefighting



3. What is thermal imaging module?

A thermal imaging module usually consists of an infrared detector, infrared lens and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
