Micro Infrared Thermal Camera Core 120x90 17μm for Smart Home

I'm Online Chat Now

Micro Infrared Thermal Camera Core 120x90 17μm for Smart Home

Micro Infrared Thermal Camera Core 120x90 17μm for Smart Home
Micro Infrared Thermal Camera Core 120x90 17μm for Smart Home

Large Image :  Micro Infrared Thermal Camera Core 120x90 17μm for Smart Home

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: TIMO120
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 120x90 Pixel Pitch: 17μm
Spectral Range: 8~14μm Temperature Range: -20℃~+120℃ (Customizable)
NETD: ≤60mK Size: 8.5x8.5x9.16mm
High Light:

120x90 Thermal Camera Core

,

Micro Infrared Thermal Camera Core

,

Smart Home Thermal Camera Core

TIMO120 Thermal Camera Module



120x90 / 17μm Micro Infrared Thermal Camera Core for Smart Home, Intelligent Building



Product Description

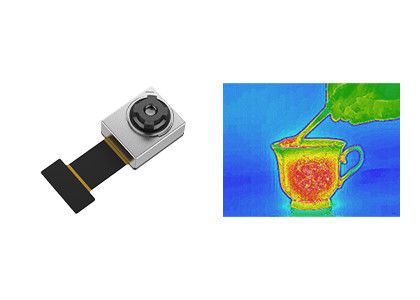

TIMO120 infrared thermal module integrates 120x90 / 17μm wafer level package (WLP) infrared detector and is oriented for applications of optimized size, weight, power, cost (SWaP-C). Its super miniature structure is easy to be integrated into various smart devices, thermal imagers or mobile terminals with strict requirements on cost, size and weight.



Compared with traditional temperature measuring tools, the TIMO120 IR sensor module has greater sensitivity than the common thermopile arrays during the epidemic prevention. Also by using wafer level packaging, TIMO120 thermal sensor camera module is more affordable in the infrared imaging applications that need strict requirements on cost, size and weight.



Thanks to the WLP technology, TIMO series uncooled thermal module is preferred in the emerging markets like consumer electronics. It’s easier for TIMO thermal imaging module to be integrated into more terminal products and shorten secondary development time of customers.



Main Features



- Minimum size at 8.5x8.5x9.16mm

- Temperature range from -20℃~+120℃

- Easy integration

- Complete SDK development kit

- Low power design as low as 9mW



Product Specifications



Model TIMO-120
IR Detector Performance
Resolution 120x90
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD ≤60mK
Lens Type WLO
Focus Mode Fixed Zoom
HFOV 90°/50°
Depth of Field 10cm to Infinity
Frame Rate 1~30Hz (Customizable)
Temperature Measurement
Temperature Range -20°C ~ +120°C (Customizable)
Temperature Accuracy Customizable (Meet the Requirements of Body or Industrial Thermography)
Interface/Control
AVDD 3.6V±0.05V
VSK/VDET 4.7±0.05V
DVDD 1.8V±0.05V
Interface Digital Interface
Power Consumption 45mW (Typical Mode); 9mW (Low Power Mode)
Physical Characteristics
Dimension (mm) 12x10x5.48 (HFOV=90°); 8.5x8.5x9.16 (HFOV=50°) (The Specifications Shall Prevail)
Operation Temperature -20°C ~ +60°C
Storage Temperature -40°C ~ +85°C



Industrial Applications



The TIMO120 thermal camera module is widely used in many areas, such as Thermography, Intelligent Hardware, Smart Building, Smart Home, AIoT etc.



Micro Infrared Thermal Camera Core 120x90 17μm for Smart Home 0



Praises from Customers



Micro Infrared Thermal Camera Core 120x90 17μm for Smart Home 1



FAQs



1. What is infrared thermal imaging?

In nature, all objects whose temperature is higher than absolute zero (- 273 ℃) can radiate infrared rays. By using the infrared camera detector to measure the infrared radiation temperature difference between the target itself and the background, you can get different infrared images, which are also called thermal images.



2. How do infrared detectors work?

Infrared radiation that emitted by target enters the sensing range of the thermal detector, then the infrared detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.



3. What's the advantage of uncooled infrared detector?
Uncooled infrared focal plane detector does not need an Integrated Dewar Cooler Assembly (IDCA) device and can work at room temperature. It has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on. Although the sensitivity of uncooled infrared focal plane detector is not as good as that of cooled infrared detectors, after years of development, its cost performance has been obviously better than the cooled detector, which has a broader application prospect.
