15μm Cooled Infrared Detector,
17mK Cooled Infrared Detector
The Accelerator for 640x512 / 15μm RS058 MCT MWIR Cooled Infrared Detector Integration

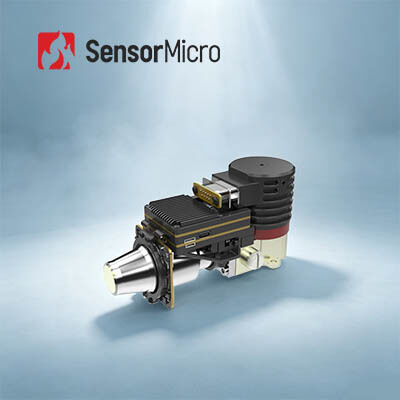

EYAS series cooled AD modules have the pre-amplifier function to convert the analog signal from cooled IR detectors into a digital video stream output. It is available with different resolution formats and different wave bands. EYAS615A is a member of EYAS family with 640x512@15μm MWIR cooled detector and RS058 cryocooler integrated.
EYAS615A AD module features in frame rate up to 120Hz, snapshot, ITR/IWR, windows, anti-blooming working modes. The proximity board comes with EYAS615A makes it an accelerator for OEM customers to carry out fast acceptance test on GST infrared detectors, start rapid secondary development and shorten their development period of modules and complete products based on cooled infrared detectors.
- Easy to Develop & Integrate
- Cameralink Interface Output 16bit Raw Data, Serial Port Control
- Integrated Structure, Dimensions are Consistent with Detector
- 5V Single-supply
- Capable of Capturing High Speed Moving Target
|IR Detector Performance|
|Spectral Range||3.7μm～4.8μm MW|
|Cooling Time (25°C)||≤6min|
|Optimal NETD (20°C)||≤17mK|
|Frame Rate||1~120Hz Adjustable|
|Working Mode||Snapshot; ITR/IWR Integration Mode; Windows Mode; Anti-blooming|
|Standard External Interface||QSH 60 pin|
|Digital Video||Cameralink: Output 16bit Raw Data|
|External Sync||CC1: INT/Frame External Sync; CC2: MC External Sync|
|Communication||Cameralink Serial Port: TFG+/-, TC+/-; 9600bps|
|Power Supply||1 Channel Imaging Panel: 5V
1 Channel Cryocooler: 24V
|Stable Power Consumption||7W|
|Working Temperature||-40°C ~ +60°C|
|Vibration Magnitude||Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
The EYAS615A thermal imaging module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
1. What is infrared thermal imaging?
Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal image with temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.
2. What can infrared imaging be used for?
-Search & rescue
-Security & monitoring
3. What is thermal imaging module?
A thermal imaging module usually consists of an infrared detector, infrared lens and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
