640x512 15μm Cooled Infrared Detector Integration

I'm Online Chat Now

640x512 15μm Cooled Infrared Detector Integration

640x512 15μm Cooled Infrared Detector Integration
640x512 15μm Cooled Infrared Detector Integration

Large Image :  640x512 15μm Cooled Infrared Detector Integration

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: EYAS615A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 640x512/15μm NETD: ≤17mK
Spectral Range: 3.7~4.8μm Size: 147x58.5x71mm
High Light:

15μm Cooled Infrared Detector

,

17mK Cooled Infrared Detector

Cooled AD Module GAVIN615A



The Accelerator for 640x512 / 15μm RS058 MCT MWIR Cooled Infrared Detector Integration



Product Description

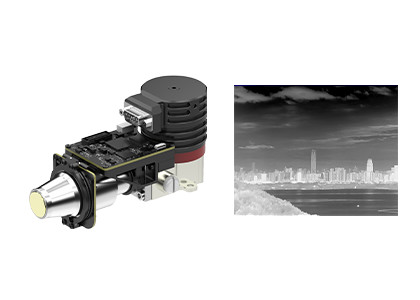

EYAS series cooled AD modules have the pre-amplifier function to convert the analog signal from cooled IR detectors into a digital video stream output. It is available with different resolution formats and different wave bands. EYAS615A is a member of EYAS family with 640x512@15μm MWIR cooled detector and RS058 cryocooler integrated.



EYAS615A AD module features in frame rate up to 120Hz, snapshot, ITR/IWR, windows, anti-blooming working modes. The proximity board comes with EYAS615A makes it an accelerator for OEM customers to carry out fast acceptance test on GST infrared detectors, start rapid secondary development and shorten their development period of modules and complete products based on cooled infrared detectors.



Main Features



- Easy to Develop & Integrate

- Cameralink Interface Output 16bit Raw Data, Serial Port Control

- Integrated Structure, Dimensions are Consistent with Detector

- 5V Single-supply

- Capable of Capturing High Speed Moving Target



Product Specifications



Model EYAS615A
IR Detector Performance
Resolution 640x512
Pixel Pitch 15μm
Cryocooler RS058
Spectral Range 3.7μm~4.8μm MW
Cooling Time (25°C) ≤6min
Optimal NETD (20°C) ≤17mK
Working Mode
Frame Rate 1~120Hz Adjustable
Working Mode Snapshot; ITR/IWR Integration Mode; Windows Mode; Anti-blooming
Electrical Specification
Standard External Interface QSH 60 pin
Digital Video Cameralink: Output 16bit Raw Data
External Sync CC1: INT/Frame External Sync; CC2: MC External Sync
Communication Cameralink Serial Port: TFG+/-, TC+/-; 9600bps
Power Supply 1 Channel Imaging Panel: 5V
1 Channel Cryocooler: 24V
Stable Power Consumption 7W
Dimension (mm) 147×58.5×71
Weight ≤680g
Working Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each



Industrial Applications



The EYAS615A thermal imaging module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
