PLUG1212 Uncooled HD LWIR 1280x1024/12μm Module for Ultra Clear Thermal Imaging

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number PLUG1212
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Resolution 1280x1024/12μm NETD <50mK
Spectral Range 8~14μm Size 20x20x10.4mm
High Light

Ultraclear Thermal Imaging Module


Uncooled HD LWIR Module


1280x1024 LWIR Module

Leave a Message
Product Description

PLUG1212 Uncooled HD LWIR 1280x1024/12μm Module for Ultra Clear Thermal Imaging


Product Description


PLUG1212 is one of the PLUG series thermal camera modules. PLUG series thermal cores are the most popular infrared products developed by Global Sensor Technology (GSTiR). They are designed to provide clear thermal imaging, best performance together with the most advanced connectivity. The uncooled HD LWIR 1280x1024/12μm VOx thermal imaging module provides exceptional image quality and temperature sensitivity while offering the convenience of uncooled operation.


The key feature of this thermal imaging module is its large format 1280x1024 pixel resolution, which enables precise and detailed thermal imaging. By utilizing a 12μm pixel pitch, this module achieves a high level of accuracy and clarity in capturing temperature variations. These advancements allow for improved detection and analysis capabilities across various applications.


Main Features


- Ultra clear thermal imaging

- Stable performance

- Clear Image Quality & Details

- Strong Environmental Adaptability


Product Specifications


Model PLUG1212
IR Detector Performance
Resolution 1280x1024
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 25Hz
Start-up Time <25s
Analog Video /
Digital Video HDMI/RAW/YUV/BT1120
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 5±0.5V
Typical Power Consumption <2.0W
Physical Characteristics
Dimension (mm) 56x56x40.2
Weight ≤220g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optional Lens Fixed Focus Athermal: 19mm/25mm


Industrial Applications


The PLU1212 infrared imaging module is widely used in Security & Monitoring, Outdoors, Firefighting & Rescue, Law Enforcement & Rescue, ADAS, UAV Payloads etc.

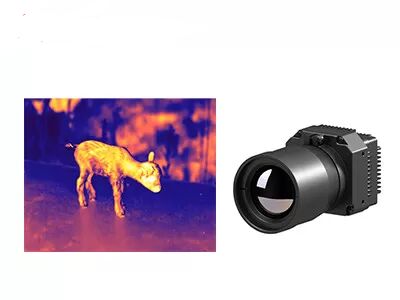

PLUG1212 Uncooled HD LWIR 1280x1024/12μm Module for Ultra Clear Thermal Imaging 0

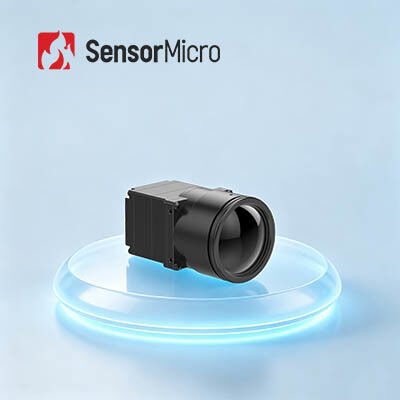

PLUG1212 Uncooled HD LWIR 1280x1024/12μm Module for Ultra Clear Thermal Imaging 1




1. What is a thermal module?

A thermal module is a device that contains both an infrared detector and the associated electronics needed to process the signals from the detector. The purpose of a thermal module is to provide a complete, integrated solution for thermal imaging applications.


A thermal module typically includes a thermal imaging sensor, an image processing chip, and other components such as a lens, a shutter, and a data transmission interface. The thermal imaging sensor may be an uncooled or cooled infrared detector, depending on the desired level of sensitivity. The image processing chip performs various image processing functions, such as noise reduction and image enhancement, and may provide additional features such as temperature measurement.


Thermal modules are often used in applications where high-quality thermal imaging is required, such as in medical diagnosis, industrial inspection, and security systems. They can be integrated into various devices, such as handheld thermal cameras, thermal imaging modules for drones, and integrated automotive night vision systems.
