MCT MWIR High Resolution Thermal Camera Module 1280x1024 / 12μm for Long Range Detection

I'm Online Chat Now

MCT MWIR High Resolution Thermal Camera Module 1280x1024 / 12μm for Long Range Detection

MCT MWIR High Resolution Thermal Camera Module 1280x1024 / 12μm for Long Range Detection
MCT MWIR High Resolution Thermal Camera Module 1280x1024 / 12μm for Long Range Detection

Large Image :  MCT MWIR High Resolution Thermal Camera Module 1280x1024 / 12μm for Long Range Detection

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: EYAS1212
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 1280x1024 Pixel Pitch: 12μm
NETD: ≤20mK Spectral Range: 3.7~4.8μm MW
Size: 149x58.5x71mm Frame Rate: 1~100Hz Adjustable
High Light:

MWIR High Resolution Thermal Camera Module

,

1280x1024 High Resolution Thermal Camera Module

HD EYAS1212 Cooled AD Module

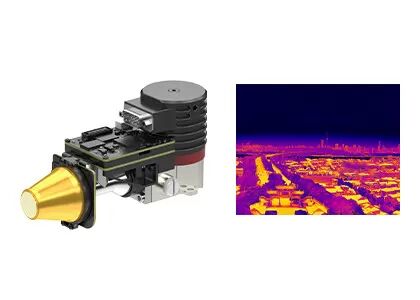

High Resolution 1280x1024 / 12μm MCT MWIR Cooled Infrared Module for Long Range Detection



Product Description



EYAS1212 is a high resolution analog-digital cooled infrared module based on 1280x1024 formats 12μm pitch IR FPA.



This AD module includes a proximity board that provides the FPA timing, and the sensitive power supplies. In addition, the Camera Link interface outputs 16bit raw data which highly simplifies the integration of the detector to the system.



Therefore, EYAS1212 AD module makes it easy for OEM customers to carry out fast acceptance test on GST C1212M 1280x1024@12μm cooled infrared detector, start rapid secondary development and shorten their development period of cooled infrared modules or complete infrared thermal cameras or systems based on cooled infrared detectors.



Main Features



- Easy to Develop & Integrate

- Cameralink Interface Output 16bit Raw Data, Serial Port Control

- Integrated Structure, Dimensions are Consistent with Detector

- 5V Single-supply

- Capable of Capturing High Speed Moving Target



Product Specifications



Model EYAS1212
IR Detector Performance
Resolution 1280x1024
Pixel Pitch 12μm
Cryocooler RS058F
Spectral Range 3.7μm~4.8μm MW
Cooling Time (25°C) ≤6min
Optimal NETD (20°C) ≤20mK
Working Mode
Frame Rate 1~100Hz Adjustable
Working Mode Snapshot; ITR/IWR Integration Mode; Windows Mode; Anti-blooming
Electrical Specification
Standard External Interface QSH 60pin
Digital Video Cameralink: Output 16bit Raw Data
External Sync CC1: INT/Frame External Sync; CC2: MC External Sync
Communication Cameralink Serial Port: TFG+/-, TC+/-; 9600bps
Power Supply 1 Channel Imaging Panel: 5V
1 Channel Cryocooler: 24V
Stable Power Consumption 9W
Dimension (mm) 149×58.5×71
Weight ≤680g
Working Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each



Industrial Applications



The EYAS1212 thermal imaging module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
