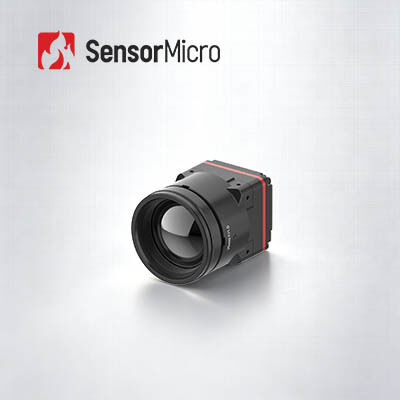

1280x1024 Resolution 8μm Pixel Size Thermal Camera Module with 1W Power Consumption for Portable Devices

  • 1280x1024 Resolution 8μm Pixel Size Thermal Camera Module with 1W Power Consumption for Portable Devices
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iTL1208
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 1280x1024/12μm NETD ≤30mK
Spectral Range 8~14μm Digital Frame Rate 25/30Hz
Supply Voltage 4.5-5.5V Typical Power Consumption 1W
Highlight

1280x1024 High Resolution Thermal Camera Module

,

220g High Resolution Thermal Camera Module
Leave a Message
Product Description
1280x1024/8μm HD Thermal Camera Module for Portable Devices
Product Overview

Simplify thermal system development with the highly integrable iTL1208 8μm megapixel infrared camera core, engineered for universal compatibility and fast deployment. This compact thermal core supports multiple lens options via premium germanium-free chalcogenide optics, adapting to diverse industrial and civilian thermal imaging application needs.

Equipped with standard MIPI CSI image output interface, it provides flexible RAW and YUV dual data output to match different system development requirements, greatly reducing integration difficulty and cycle. Despite its ultra-miniature 22.6×22.6×34.5mm size and 35.7±2g lightweight design, the iTL1208 retains full 1280×1024 megapixel resolution and high-definition thermal imaging capability, with 1W low power consumption ensuring long-term stable operation for integrated mobile and handheld devices.

Main Features
  • 8μm Megapixel Breakthrough: World's first 8μm megapixel thermal camera core powered by the ApexCore 1280×1024/8μm super infrared detector, balancing high resolution with ultra-compact integration.
  • Advanced SWaP Performance: Measures only 22.6×22.6×34.5 mm, weighs 35.7±2g (including a 12mm lens), and consumes just 1W, breaking the size barrier for megapixel thermal imaging.
  • Germanium-Free Optics, Fast Integration: Germanium-free chalcogenide optics with multiple lens options for diverse application requirements. MIPI CSI image output interface with RAW and YUV data output for simplified system integration.
Product Specifications
Model iTL1208
IR Detectors Indicators Sensitive Material: VOx
Resolution: 1280×1024
Pixel Size: 8μm
Spectral Response: 8μm ~ 14μm
Typical NETD: ≤30mK
Image Processing Digital Frame Rate: 25/30Hz
Start-up Time: ≤6s
Digital Video: RAW/YUV
Image Algorithm: NUC/3DNR/DNS/DRC/EE
Image Display: 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
PC Software Module Control & Video Display
Electrical Standard External Interface: 34Pin_Connector Interface: BP04SD-34-0065-R0
Communication Interface: TTL-232/I2C
Digital Video Interface: MIPI-CSI
Supply Voltage: 4.5-5.5V
Typical Power Consumption: 1W
Mechanical Size (including lens):
With 5mm lens: 22.6mm×22.6mm×50mm (lens outer diameter Φ37mm)
With 10mm lens: 22.6mm×22.6mm×45.3mm (lens outer diameter Φ33mm)
With 12mm lens: 22.6mm×22.6mm×34.5mm (lens outer diameter Φ26.6mm)
With 17mm lens: 22.6mm×22.6mm×35.4mm (lens outer diameter Φ27mm)
With 25mm lens: 22.6mm×22.6mm×44.2mm (lens outer diameter Φ33mm)
With 35mm lens: 22.6mm×22.6mm×50.9mm (lens outer diameter Φ43.2mm)

Weight (including lens):
85.5±4.5g (With 5mm Lens)
70.5±3.6g (With 10mm Lens)
35.7±2g (With 12mm Lens)
40.7±2.1g (With 17mm Lens)
71.0±3.6g (With 25mm Lens)
110±5.5g (With 35mm Lens)
Environmental Adaptability Operating Temperature: -40℃~+70℃
Storage Temperature: -45℃~+85℃
Humidity: 5%~95%, non-condensing
Vibration: 5.35grms, Random Vibration, 3-axis
Impact: Half Sine Wave, 40g/11ms, Impact Direction 3 Axis, 6 Direction
Certification: ROHS2.0/REACH
Optical Lens: Fixed Focus Athermal: 5/10/12/17/25/35mm
Industrial Applications

The iTL1208 thermal imaging module is widely used in Forest Firefighting, Power Maintenance, Photovoltaic Inspection, Security Monitoring, Wearable Devices, Portable Devices, and more.

Standardized Service
  • Complete Documentation: Product manuals, setup guides, and selection references for seamless implementation.
  • Development & Testing Assistance: Sample Integrated Testing, performance evaluation, and parameter verification made easy.
  • Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration.
  • Remote Technical Support: 24/7 support with quick response and timely resolution for critical issues.
  • Warranty: Original parts and strict process adherence to restore optimal performance.
Frequently Asked Questions
What is infrared thermal imaging?

Infrared thermal imaging is a method that utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal images showing temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.

What can infrared imaging be used for?

Infrared imaging applications include night vision, search & rescue, non-destructive testing, epidemic prevention, thermography, security & monitoring, firefighting, and many other industrial and commercial uses.

What is a thermal imaging module?

A thermal imaging module typically consists of an infrared detector, infrared lens, and hardware electronics with software and algorithm embedded. It represents the minimum functional unit of a thermal imaging device, designed for integration into larger systems.
