Product Details
Resolution 1280x1024/12μm NETD <50mK
Spectral Range 8~14μm Size 20x20x10.4mm
High Light

Large Array Uncooled Thermal Camera

,

Uncooled Thermal Camera Core 1280x1024

Leave a Message
Product Description

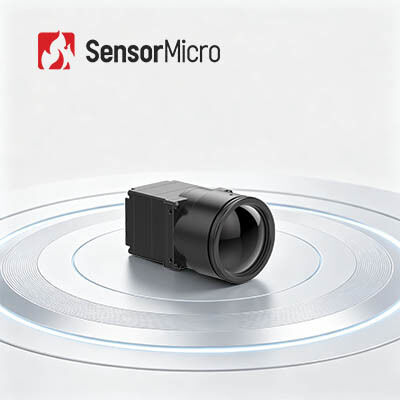

PLUG1212 Infrared Camera Module



Large Array 1280x1024 / 12μm Uncooled FPA Thermal Imaging Camera Core for Security & Monitoring



Product Description



PLUG1212 uncooled thermal camera core offers thermal images up to 1280x1024 pixels and shows you the smallest of details. Its reduced 12µm pixel size offers better spatial resolution and matches shorter optical lens focus to achieve the same range mission.



PLUG1212 infrared thermal core is applied in a wide range of areas and its visual information solutions cover day, night, low visibility and all weather conditions.



Global Sensor Technology specializes in the design, manufacture, sales and marketing of thermal detector sensor and thermal image sensor module. We can provide our customers a variety of infrared thermal imaging solutions which shorten secondary development time and greatly reduce the cost for customers.



Main Features


- NETD<30mk, High Sensitivity
- Stable Performance
- Clear Image Quality & Details
- Easy Integration & Plug-in
- Strong Environmental Adaptability



Product Specifications



Model PLUG1212
IR Detector Performance
Resolution 1280x1024
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 25Hz
Start-up Time <25s
Analog Video /
Digital Video HDMI/RAW/YUV/BT1120
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 5±0.5V
Typical Power Consumption <2.0W
Physical Characteristics
Dimension (mm) 56x56x40.2
Weight ≤220g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 19mm/25mm



Industrial Applications



The PLU1212 infrared imaging module is widely used in Security & Monitoring, Outdoors, Firefighting & Rescue, Law Enforcement & Rescue, ADAS, UAV Payloads etc.



Large Array Uncooled Thermal Camera Core 1280x1024 12μm for Security & Monitoring 0

Global Sensor Technology Team



Large Array Uncooled Thermal Camera Core 1280x1024 12μm for Security & Monitoring 1



FAQs



1.What is infrared thermal imaging?

In nature, all objects whose temperature is higher than absolute zero (- 273 ℃) can radiate infrared rays. By using the infrared camera detector to measure the infrared radiation temperature difference between the target itself and the background, you can get different infrared images, which are also called thermal images.



2. How do infrared detectors work?

Infrared radiation that emitted by target enters the sensing range of the thermal detector, then the infrared detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.



3.What are the advantages of cooled infrared detectors?

The cooled infrared focal plane detector operates at a low temperature which is provided by a detector dewar cooler (ddc). It has high sensitivity and can distinguish more subtle temperature difference than uncooled infrared detector. It can detect, identify and recognize objects at a very long range which is more than ten kilometers away. The structure of cooled detector is very complex which results in a relatively high cost than uncooled detector.
