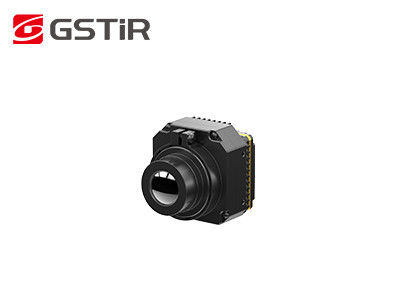

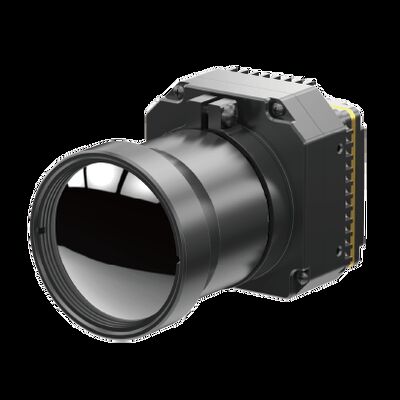

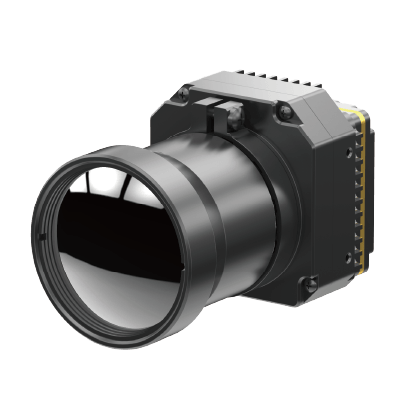

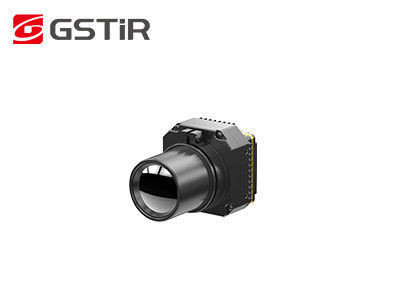

Industrial Grade 1280x1024 12μM Thermal Camera Module With High Temperature Range

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number PLUG1212R
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Resolution 1280x1024/12μm NETD <50mK
Spectral Range 8~14μm Size 20x20x10.4mm
High Light

12uM Industrial Thermal Camera Module


1280x1024 Industrial Thermal Module


Industrial Uncooled Infrared Camera Module

Leave a Message
Product Description

Industrial-Grade 1280x1024 12μm Thermal Camera Module with High Temperature Range


Product Description


PLUG1212R is one of the PLUG-R series uncooled infrared camera module developed by Global Sensor Technology (GST). It is based on GST1212M uncooled infrared detector with professional signal processing circuit and image processing platform, completely transforms the target infrared radiation into temperature data. Its temperature measurement is available and temperature range can be customizable, which meet the specific requirements of industrial thermography.


The Uncooled HD LWIR 1280x1024/12μm VOx Thermal Imaging Module offers a wide temperature measurement range, enabling diverse applications in fields such as industrial inspection, surveillance, and security. With a temperature range covering both sub-zero temperatures (-20℃) and high-temperature environments (up to 550), this module accommodates the demands of various thermal imaging scenarios.


Main Features


- Pixel pitch: 12μm

- Resolution: 1280x1024

- Spectra Range: 8μm -14μm

- High Sensitivity: NETD<30mK

- Temperature Range: -20℃~150℃, 100℃~550℃

- Temperature Accuracy: ±2℃ or ±2%

- High reliability & Strong Environmental Adaptability.


Product Specifications


Model PLUG1212R
IR Detector Performance
Resolution 1280x1024
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 25Hz
Start-up Time <25s
Analog Video /
Digital Video HDMI/RAW/YUV/BT1120
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 5±0.5V
Temperature Measurement
Operating Temperature Range -10°C~50°C
Temperature Range -20°C~150°C, 100°C~550°C
Temperature Accuracy ±2°C or ±2% (Take the Maximum Value)
SDK ARM/Windows/Linux SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm) 56x56x40.2
Weight ≤200g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optional Lens Fixed Focus Athermal: 19mm/25mm


Industrial Applications


The PLU1212R infrared imaging module is widely used in Power Electricity, Machine Vision, Building Inspection, Metallurgical Petrochemical etc.


Industrial Grade 1280x1024 12μM Thermal Camera Module With High Temperature Range 0

Our Advantages


Industrial Grade 1280x1024 12μM Thermal Camera Module With High Temperature Range 1




1. What is a thermal imaging module for drones​?


A thermal imaging module for drones is a compact and lightweight device designed to capture infrared or thermal images from an aerial perspective. It consists of a thermal sensor or camera, optics, and image processing capabilities. Mounted on a drone, the thermal imaging module enables the drone to detect and visualize heat signatures emitted by objects or surfaces.


Thermal imaging modules for drones typically offer features such as:

High-resolution thermal sensor: The module incorporates a high-resolution thermal sensor that detects and measures the infrared radiation emitted by objects and environments.

Real-time thermal imaging: The module provides real-time video or image feed, allowing operators to monitor and analyze thermal data while the drone is in flight.

Integration with drone systems: The module is designed to be compatible with various drone platforms. It can be connected to the drone’s onboard systems, enabling data transmission and integration with flight control and navigation systems.
