CMOS8 Uncooled IR Camera Core 640x512 12um With 9.1mm Lens

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number iTL612R Pro
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Resolution 640x512 Power Consumption 0.7W
Spectral Range 8~14μm Pixel Pitch 12μm
Typical NETD ≤40mK Frame Rate 30Hz
High Light

CMOS8 Uncooled IR Camera Core

,

9.1mm Lens IR Camera Core

,

12um Uncooled Thermal Camera

Leave a Message
Product Description

Tiny Size Uncooled Infrared Camera Core 640x512 12um for UAV Payloads



Product Description



As a leading manufacturer of cooled uncooled infrared detectors & thermal modules, Global Technology developes a tiny size and lightweight infrared thermal imaging core iTL612R Pro, which is the compact version of infrared camera core iTL612R.



Fully oriented for SWaP-C (size-weight-and- power-cost), the size and weight of iTL612R Pro infrared camera core has already been at the forefront in the industry.It is the best choice for customers who have restrict requirements on size and weight when integrating their own drones.



Providing 640×512/12μm self-developed wafer-level infrared detector, lens protection grade IP67, imaging and temperature measurement version, and various SDK solutions, the iTL612R Pro thermal module responds to space constraints with smaller size and lighter weight, achieves longer battery life with lower power consumption, overcomes integration problems in the consumer electronics field, and provides more solutions for compact and portable products.



It is specially developed for the field of Predictive Maintenance, Photovoltaic Inspection, Environmental Protection, Scientific Research, Aerial Photography, Police Investigation, Disaster Relief & Rescue, Forest Fire Prevention, Urban Safety etc.



Main Features



Compact & Lightweight Design
• Size: 17mm×17mm×22mm (with 9.1mm lens)
• Weight: 13g (with 9.1mm lens)
• Power consumption as low as 0.7W


Clear Image & Accurate Radiometry
• Brand new image process algorithm: NUC/3DNR/DNS/DRC/EE
• Support Windows/Linux/ARM SDK
• Support regional, point & isotherm temperature measurement


Various Interfaces for Easy Integration
• DVP/LVDS/USB2.0 interfaces, RAW/YUV image data output, serial port control



Product Specifications



Model iTL612R Pro
IR Detector Performance
Sensitive Material Vanadium Oxide
Resolution 640×512
Pixel Size 12μm
Spectral Range 8~14μm
Typical NETD ≤40mk
Image Processing
Frame Rate 30Hz
Start-up Time 5s
Digital Video RAW/YUV/BT656
Image Algorithm Non-uniformity Correction (NUC)
3D Noise Reduction (3DNR)
De-noise (DNS)
Dynamic Range Compression (DRC)
Edge Enhancement (EE)
Image Display Black Hot/White Hot/Pseudo Color
PC Software
ICC Software Module Control & Video Display
Electrical Specifications
Standard External Interface 30Pin_HRS: DF40C-30DP-0.4V(51), (HRS, Male)
USB Expansion Board Type-C
Communication Interface RS232-TTL/USB2.0
Digital Video Interface CMOS8/USB2.0
Supply Voltage 4.0-5.0V V VDC
Typical Power Consumption 0.7W
Temperature Measurement
Operating Temperature Range -10°C~+50°C
Temperature Measurement Range -20°C~+150°C, 0°C~550°C; Support Customization and Expansion
Temperature Measurement Accuracy Greater of ±2°C or ±2% (@23℃±3℃)
Regional Temperature Measurement Support Maximum, Minimum and Average Value of the Output Regional Temperature
SDK Support Windows/Linux/ARM; Achieve Video Stream Analysis and Conversion from Gray to Temperature
Physical Characteristics
Size (mm) 17×17×22 (With 9.1mm Lens)
Weight 13g (With 9.1mm Lens)
Environmental Adaptability
Operating Temperature -40°C~+70°C
Storage Temperature -45°C~+85°C
Humidity 5%~95%, Non-condensing
Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Certificates ROHS2.0/REACH
Optics
Optional Lens Fixed Focus Athermal: 9.1mm



Industrial Applications


The iTL612R Pro thermal imaging module can be integrated into UAV payloads and wearable devices so that is widely used in fields of Predictive Maintenance, Photovoltaic Inspection, Environmental Protection, Scientific Research, Aerial Photography, Police Investigation, Relief & Rescue, Forest Fire Prevention, Urban Safety etc.

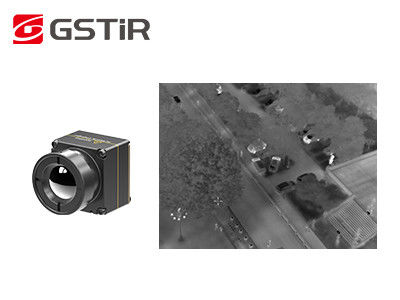

CMOS8 Uncooled IR Camera Core 640x512 12um With 9.1mm Lens 0

Global Sensor Technology

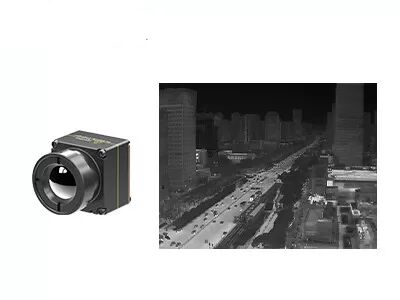

CMOS8 Uncooled IR Camera Core 640x512 12um With 9.1mm Lens 1

CMOS8 Uncooled IR Camera Core 640x512 12um With 9.1mm Lens 2


FAQs



1. What is infrared thermal imaging?

Infrared thermal imaging is a method of using infrared radiation and thermal energy to gather information about objects, in order to formulate images of them, or get temperature information of the objects, even in low visibility environments.



2. How does Infrared Thermal Imaging Work?
Infrared thermal imaging system is a passive non-contact detection and identification of infrared technology. It focuses the infrared radiation of the scene on the focal plane array infrared detector through the infrared optical system that can pass through infrared radiation. The thermal detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.
